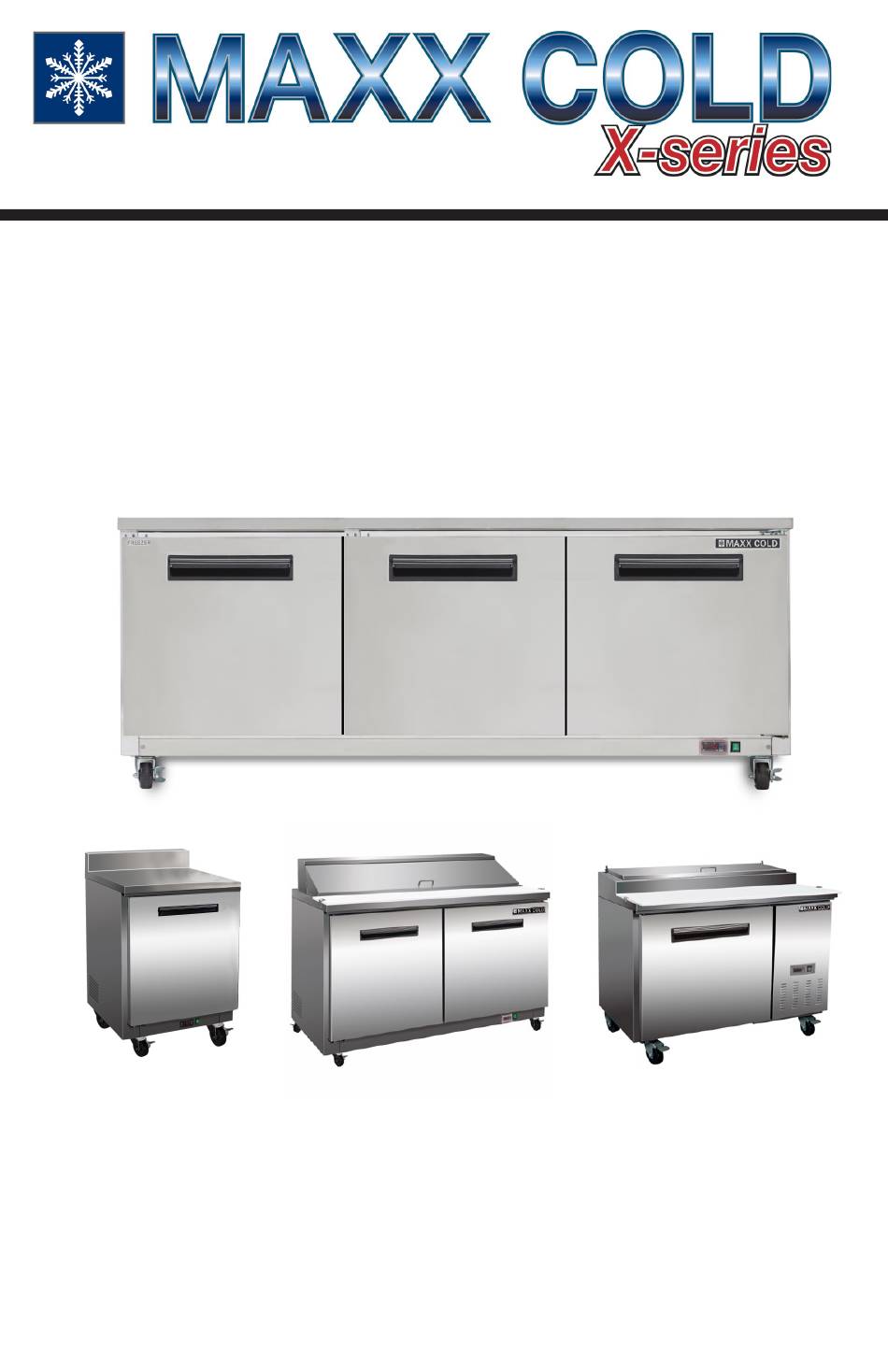

- Page 1 Pizza Prep Tables INSTRUCTION Sandwich/Salad Units MANUAL Megatop Sandwich/Salad Units Undercounter Refrigerators and Freezers Worktop Refrigerators and Freezers English PLEASE READ THESE INSTRUCTIONS CA REFULLY B EFORE USE 0818 MCMNXS09 082018...
-
Page 2: Serial Number Information
SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. Always have the serial number of your unit available when calling for parts or service. This manual covers standard units only. -
Page 3: Specifications
SPECIFICATIONS Pizza Prep Tables STORAGE UNIT CHARGE MODEL # V/Hz/Ph AMPS CAPACITY WEIGHT Cu Ft Size MXCPP50 115/60/1 ½ 5600 MXCPP70 115/60/1 ½ 6200 10.6 MXCPP92 115/60/1 ¾ 6800 13.8 Sandwich / Salad Units STORAGE UNIT CHARGE MODEL # V/Hz/Ph AMPS CAPACITY WEIGHT... - Page 4 INSTALLATION Location: Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and con- tents. A fully loaded unit can weigh as much as 1500 pounds. Reinforce the floor as necessary to provide for maximum loading.
-
Page 5: Operation
INSTALLATION Electrical connection: Refer to the amperage data on page 3, the serial tag, your local code or the National Electrical Code to be sure the unit is connected to the proper power source. A pro- tected circuit of the correct voltage and amperage must be run for connection of the line cord, or permanent connection to the unit. - Page 6 SOLID-STATE THERMOSTAT DESCRIPTIION 1. FRONT PANEL COMMANDS SET: To display target set point; in programming mode it is used to select a parameter or confirm an operation (DEF) To start a manual defrost (UP):To see the last temperature alarm; in programming mode it browses the parameter codes or increases the displayed value (DOWN)To see the last temperature alarm;...
-
Page 7: Maintenance
MAINTENANCE The power switch must be turned to OFF and the unit discon- nected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't suffi- cient, try ammonia and water or a nonabrasive liquid cleaner. - Page 8 MAINTANANCE Stainless Steel Care and Cleaning To prevent discoloration or rust on stainless steel, several important steps need to be taken. Stainless steel contains 70-80% iron which will rust. It also contains 12-30% chromium which forms an invisible passive film over the steel’s surface which acts as a shield against corrosion.
- Page 9 MAINTENANCE Doors/Hinges Over time and with heavy use doors the hinges may become loose. If the door is be- ginning to sag, it may become necessary to tighten the screws that mount the hinge brackets to the frame of the unit. If the doors are loose or sagging this can cause the hinge to pull out of the frame which may damage both the doors and the door hinges.
-
Page 10: Wiring Diagram
MAINTENANCE Open the bottom shroud Loosen and remove the screw from the two holes in front of the bottom shroud, then the bottom shroud can be move out. WIRING DIAGRAM Model: MXCPP50/70/92 - MCR29S/48S/60S - MCR29M/48M/60M - MXCR27U/48U/60U Model: MXCF27U/48U/60U SWITCH OVERLOAD PROTECTOR... - Page 11 WIRING DIAGRAM...
- Page 12 WIRING DIAGRAM...
- Page 13 NOTES:...
- Page 14 www.maxxcoldfoodservice.com 3355 Enterprise Ave, Suite #160, Fort Lauderdale, FL 33331 Phone:(954) 202-7419 · Fax:(954) 202-7337...
