Summary of Contents for Maxx Cold MXCR96B

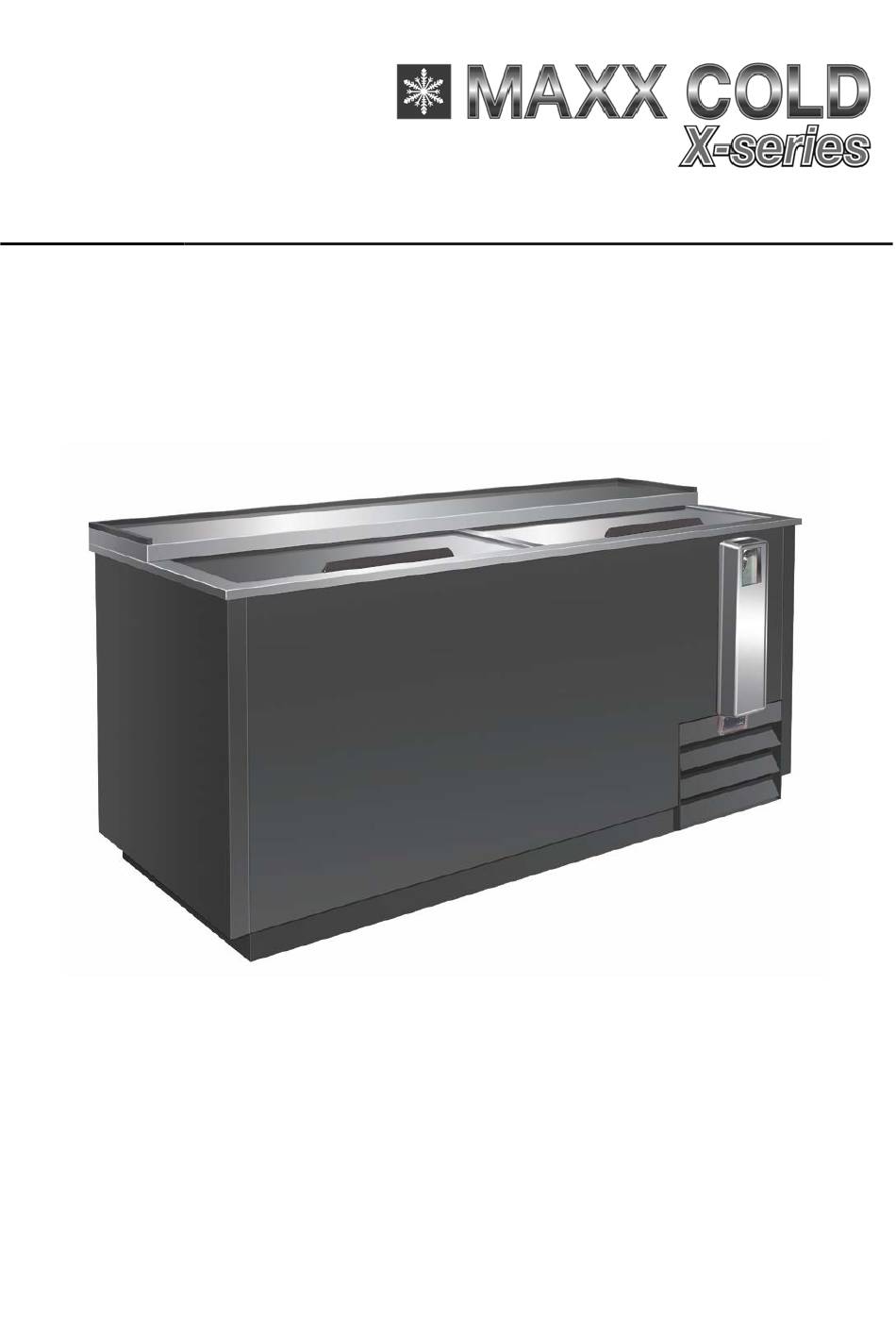

- Page 1 BOTTLE COOLER Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
-
Page 2: Table Of Contents
3200 10.6 5-15P MXCR65B 115/60/1 5400 11.3 5-15P MXCR96B 115/60/1 7600 12.0 5-15P NOTICE: LOSS OR SPOILAGE OF PRODUCTS IN YOUR REFRIGERATOR/FREEZER IS NOT COVERED BY WARRANTY. IN ADDITION TO FOLLOWING RECOMMENDED INSTALLATION PROCEDURES. PLEASE RUN THE REFRIGERATOR/FREEZER 24 HOURS PRIOR TO USAGE. THANK YOU. -
Page 3: Electrical Connection
Service and Installation Manual space all around it. Never place the cooler in strong sunlight. The cooler be placed on a level surface. Make sure that it does not rock. If the cooler has been stored or transported cold, it must not be started before the compressor is judged to have reached a temperature at least 41°F. - Page 4 Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans wilt run continuously even when one or more doors are open.
- Page 5 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 6: Maintenance
Service and Installation Manual MAINTENANCE This cooler can be cleaned using warm water and a mild detergent. Rinse with clean water to finish off. Never use detergents that contain chlorine. The lid may be cleaned in the same way as the cooler. If a condenser and associated fan are fitted at the back bottom of the cooler, they can gather dust and dirt. -
Page 7: Trouble Shooting
Service and Installation Manual Ensure the unit is not resting on or against the electrical cord. If the unit is not in use for a long period of time, best to unplug the unit from the outlet. To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands. -
Page 8: Disposal
Service and Installation Manual DISPOSAL When a worn-out cooler is to be disposed off, this must be done in a correct manner, with respect to the environment. Please be aware of the rules covering the disposal of such terms; there may be special requirements or conditions to be observed. -
Page 9: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL：MXCR50B/ MXCR65B MODEL：MXCR96B... - Page 10 Service and Installation Manual WIRING DIAGRAM MODEL: MXCR50B / MXCR65B...
- Page 11 Service and Installation Manual WIRING DIAGRAM MODEL: MXCR96B...
- Page 12 Service and Installation Manual 3355 Enterprise Ave., Suite 160 - Ft. Lauderdale, FL 33331 T: (954) 202-1419 - F: (954) 202-7336 www.maxximumfoodservice.com...
