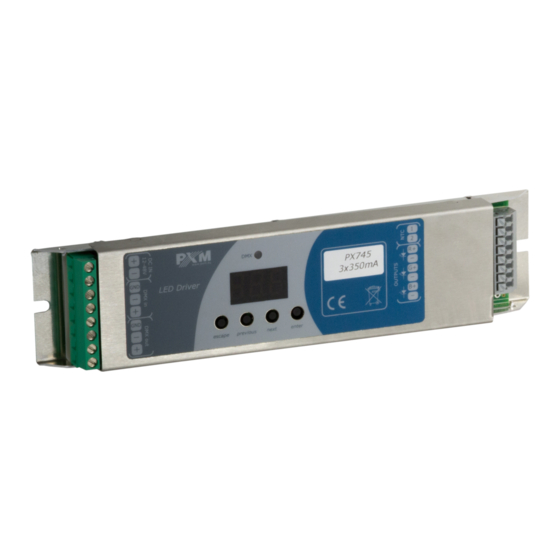

PX745
Driver LED
C.C. 3 x 350mA
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX745 and is the answer not in the manual?

Questions and answers

Related Manuals for PXM PX745

Summary of Contents for PXM PX745

  • Page 1 PX745 Driver LED C.C. 3 x 350mA User manual...

  • Page 2: Table Of Contents

    Table of Contents 1 Description....................4 2 Safety conditions..................5 3 Connectors and control elements............6 4 Designation of displayed messages............7 5 Device programming.................9 5.1 Button features......................9 5.2 Group DMX address settings..................9 5.3 Individual DMX address settings................10 5.4 Color settings mode....................11 5.5 No DMX signal response..................14 5.6 Description of programs..................15 5.7 Master / Slave function...................17...
  • Page 3 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-2 BDO register number 000005972 www.pxm.pl 25.10.2019...

  • Page 4: Description

    12 – 48V DC power supply allows to control large amounts of LEDs supplied with 350mA current. PX745 can be controlled by the DMX signal or it can work independently. In this operation mode, the user has access to a fully programmable scene and 18 default sequences for which can also change the reproduction speed and the smoothness of transition of particular steps.

  • Page 5: Safety Conditions

    PX745 has also been equipped with a function of temperature power output limit and connectors for connecting a temperature sensor. Safety conditions PX745 is a device powered with safe voltage 12 – 48V DC; however, during its installation and use the following rules must be strictly observed: 1.

  • Page 6: Connectors And Control Elements

    Connectors and control elements power supply 12 – 48V DC NTC 4K7 temperature sensor PX745 3x350 mA/48V display DMX output control outputs programming keys DMX input...

  • Page 7: Designation Of Displayed Messages

    Designation of displayed messages DMX address of a device – a basic item in the MENU setting parameters for all channels simultaneously setting parameters for each channel individually inverting the meter display 180 degrees DMX address setting control method selection (RGB, Lightness / Color, etc.) no DMX signal response method selection Master / Slave mode settings Lightness / Color control mode...
  • Page 8 blue balance white color balance on / off program playback speed level of steps change smoothness in the program red color during scene programming green color during scene programming blue color during scene programming basic frequency of brightness control screen blanking memory error message restore default device settings menu function to limit power...

  • Page 9: Device Programming

    – enters the next MENU level and confirms changes made 5.2 Group DMX address settings The menu of the PX745 driver allows for setting the DMX address within a range between 1 and 506 – 511 depending on work mode of device.

  • Page 10: Individual Dmx Address Settings

    NEXT 5.3 Individual DMX address settings The PX745 module has an option that allows for changing individual settings. It enables assigning any DMX address to every output channel. The simplest example of implementation of this function is to control the lightness of one-color LEDs connected to all outputs.

  • Page 11: Color Settings Mode

    ENTER ENTER NEXT ENTER NEXT The PX745 driver can operate in different control modes. Depending on the selected mode, the devices takes up a different NEXT numbers of channels, possible modes: The HSL mode (Hue, Saturation, Lightness) operates on three...
  • Page 12 Description guide of EFF mode settings (table is on the next page): Channel 1 – red color Channel 2 – green color Channel 3 – blue color Channel 4 – operating mode selection Channel 5 – speed settings (higher value – quicker changes) Channel 6 –...
  • Page 13 CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL 8 1 RED 2 GREEN 3 BLUE 5 MODE 6 SPEED 7 FADE BRIGHTNESS <0–7> Program 1 <8–15> Program 2 <16–23> Program 3 <24–31> Program 4 <32–39> Program 5 <40–47> Program 6 <48–55> Program 7 <56–63>...

  • Page 14: No Dmx Signal Response

    5.5 No DMX signal response This function is used both to protect the installation against the DMX signal loss and to obtain control over LEDs without connecting an external controller. Once it is activated, if there is no DMX signal the module will realize a desired function independently.

  • Page 15: Description Of Programs

    Sc –self-programmed scene in which it possible to set values for RGB colors (rEd, Grn, bLu) in range 0 – 255 for each color separately. Additionally can set the scene entry time (SPd) after decay DMX signal in range 0,1 – 99,9s. on –...
  • Page 16 Step 1 Step 2 Step 3 Step 4 Step 5 Step 6...

  • Page 17: Master / Slave Function

    Step 4 5.7 Master / Slave function The PX745 module has a built-in DMX-512 receiver and can be controlled from any desktop or controller running in this standard. Moreover, it is equipped with a programmable function of response to no DMX signal (noS).

  • Page 18: White Balance

    Sometimes, there can be problems with getting white color on the RGB series LEDs. This may be a result of using diodes with different technical parameters. For this reason, the PX745 module is equipped with a white balance function. This option allows for choosing a correct color temperature...

  • Page 19: Smooth

    ENTER ENTER 4 x NEXT ENTER NEXT NEXT bLr – value for the red colour (0 – 100) bLG – value for the green colour (0 – 100) bLb – value for the blue colour (0 – 100) NEXT bCn – turning on or turning oFF the white balance ENTER NEXT 5.9 Smooth...

  • Page 20: Light Control Frequency

    ENTER ENTER 5 x NEXT ENTER NEXT NEXT PREV ENTER NEXT 5.10 Light control frequency The Frq function allows for setting the basic control frequency for the LEDs. This function is extremely useful in applications for the television industry. By applying the "flicker free" technology, it is possible to avoid the unpleasant flickering effect which is caused by improper signal synchronization that controls the LEDs.

  • Page 21: Screen Saving (Screen Blanking)

    NEXT 5.12 Temperatures limits and sensor failure PX745 has been equipped with a function that limits the output power depending on the temperature value read using the external sensor mounted in the lamp. This allows for programming a temperature value which, if reached, limits the power or disables the lamp supplied by the driver.
  • Page 22 ENTER The meaning of the statement: tMP – power limitation 4 x NEXT ENTER ENTER management depending on NEXT NEXT temperature read on the external sensor NEXT LiM – powering On and OFF of the power limitation function NEXT Lo – limit activation temperature NEXT value can be set between 30°C and 60°C...

  • Page 23: Display Function

    That is why the PX745 driver has a display flip feature available. It turns the screen 180°. The keys order is reversed as well.

  • Page 24: Default Settings And Device Errors

    In such a case, try to restore the device to its default settings before sending the PX745 to the service center. If, after restoring to its default settings, the device still does not operate correctly,...

  • Page 25: Restore Default Settings

    5.14.1 Restore default settings To restore the device to its default settings, press and hold the “previous” key while switching on the device. One of the messages that will be displayed will say dFl, which means successful restoring to default settings (the “previous”...

  • Page 26: Error Message

    PX745 have to be connected to DMX line in serial mode, with no branches on DMX control cable. That means that DMX line, from the signal source, must be connected to DMX IN pins of PX745 and later, directly from DMX OUT pins to the next device in DMX chain.

  • Page 27: Rdm - Available Parameters

    RDM – available parameters The PX745 supports the DMX-RDM protocol. DMX protocol allows only of a one-way data transmission, while its extension the RDM protocol can transmit information in two directions. This makes possible to simultaneously send and receive information, and hence the possibility of monitoring activities of the compatible devices.
  • Page 28 Parameter name Description manufacturer description, MANUFACTURER_LABEL 0x0081 e.g. name inverting the meter display 180 DISPLAY_FLIP * 0x8031 degrees additional device description; It is possible to enter an additional DEVICE_LABEL * 0x0082 device description using up to 32 ASCII characters. DMX_PERSONALITY 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual...
  • Page 29 No DMX 0x801C OFF_21 * signal settings of red channel value SCENE_RED * 0x801D for scene saved in PX745 settings of green channel value SCENE_GREEN * 0x801E for scene saved in PX745 settings of blue channel value SCENE_BLUE *...

  • Page 30: Programming

    Programming ENTER ENTER ENTER NEXT NEXT ENTER NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT NEXT NEXT ENTER NEXT NEXT NEXT ENTER NEXT NEXT NEXT NEXT ENTER ENTER NEXT NEXT Next page...
  • Page 31 Previous page ENTER NEXT NEXT ENTER NEXT NEXT ENTER NEXT NEXT NEXT NEXT ENTER NEXT NEXT ENTER NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT NEXT NEXT...

  • Page 32: Connection Scheme

    Connection scheme Power supply and DMX connection diagram controller DMX power supply 12 - 48 V DC PX745 driver DMX receiver, e.g. PxArt lamp...
  • Page 33 Driver LED supply channel 1* – 3 4 – 6 PX745 7 – 12 * - when connecting one red LED, connect a rectifier diode (e.g. 1N4007) to the circuit, as shown in the diagram below: PX745 driver 1N4007 RED diode...
  • Page 34 LED RGB lamps PX745 driver LED lamp LED lamp Example connection the PX745 driver to the LED RGB lamp: • the cables should be connected with the correct order of colors LEDs should be connected only in series •...
  • Page 35 Connection diagram of the RGB lamp with a built-in temperature sensor (NTC 4K7 thermistor) PX745 driver RGB lamp with built-in NTC 4K7 thermistor The connection of the NTC 4K7 thermistor is applicable only when one lamp is connected to the driver. This is due to the fact that the device can read...
  • Page 36 Monochrome lamp in DW mode connection diagram cold white warm white mono PX745 driver...

  • Page 37: Dimensions

    10 Dimensions PX745 3x350 mA/48V...

  • Page 38: Technical Data

    11 Technical data type PX745 DMX input 1 (512 channels) DMX output 1 (24 – 512 channels) number of current outputs max current consumption 1.1A no-load power consumption 0.5W output load capacity 350mA / channel (+2% ÷ -5%) output sockets PCB terminal block (wire 0.5 –...
  • Page 39 Podłęże, 03.04.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Driver LED C.C. 3 x 350mA Product code: PX745 meets the requirements of the following standards, as well as harmonised...
