QUICK INSTALL
MITEL StreamLine
The Mitel® StreamLine family of data switches delivers Ethernet and Power over Ethernet on a single pair of
telephony grade wire1 with up to 4 times the reach of traditional data switches. With the StreamLine switch
customers can transform their existing voice infrastructure into an IP network with PoE, ideal for IP telephony
deployment. For complete details refer to the Hardware Installation Guide.

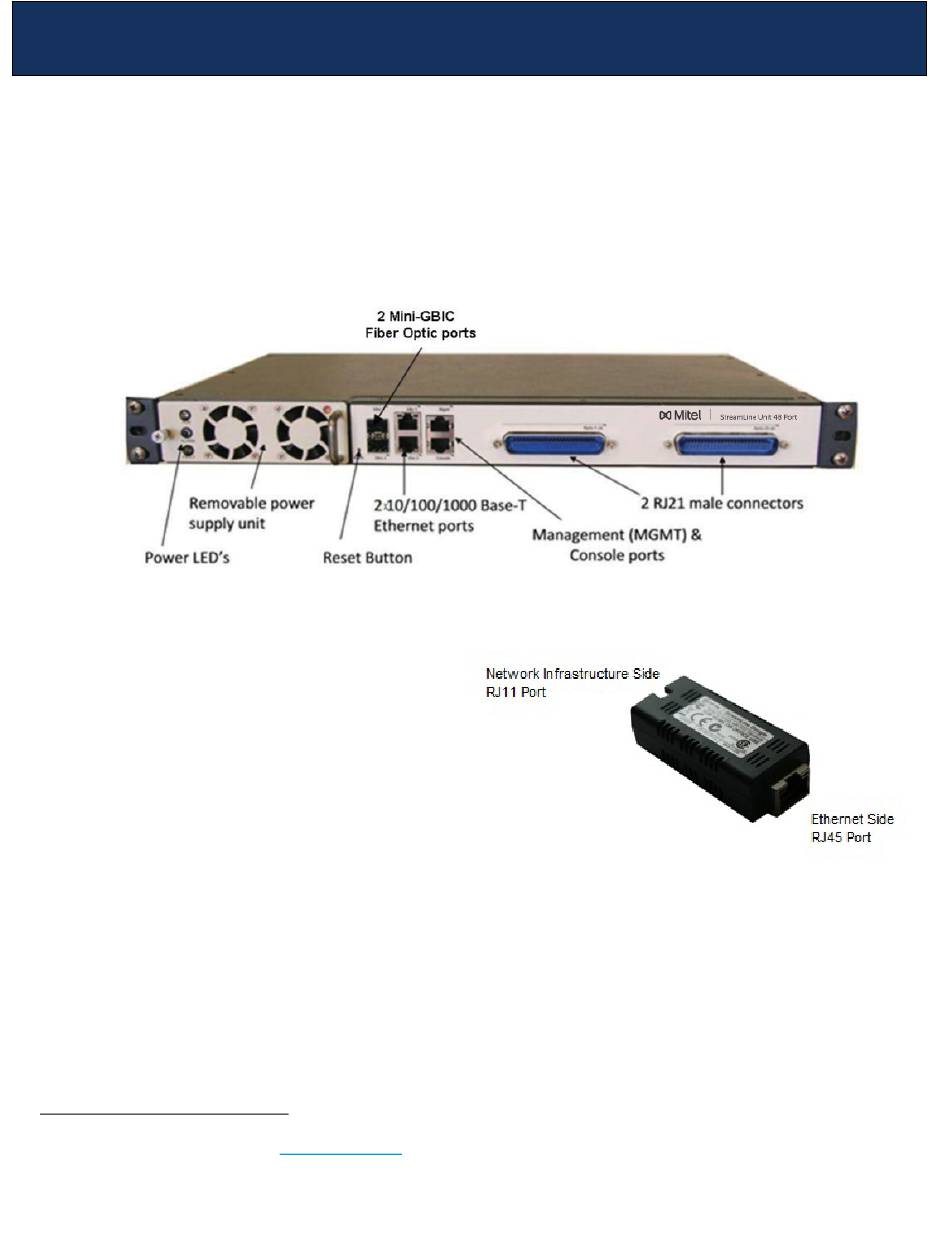

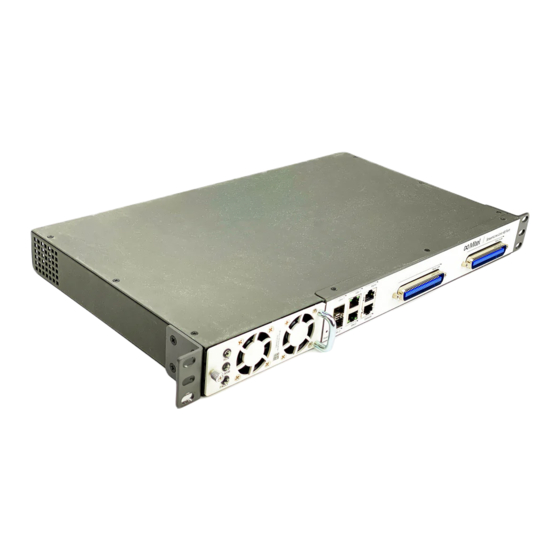

The StreamLine Switch – 48-Port
StreamLine Package Includes:
1 x StreamLine switch 24-port or 48-port model
1 x rackmount bracket kit
1 x console cable
1 x DC cable
Quick Install Guide (this document)
Dongle Package Includes:
6 x StreamLine dongles
StreamLine is supported on both CAT-3 or better, and CW1308 cabling, of up to 365 m (1200ft) & 24 gauge or better.
1
For more technical details, please consult the
StreamLine Site Survey
document.
The StreamLine Dongle
Advertisement
Table of Contents
Related Manuals for Mitel StreamLine Series
Summary of Contents for Mitel StreamLine Series
- Page 1 QUICK INSTALL MITEL StreamLine The Mitel® StreamLine family of data switches delivers Ethernet and Power over Ethernet on a single pair of telephony grade wire1 with up to 4 times the reach of traditional data switches. With the StreamLine switch customers can transform their existing voice infrastructure into an IP network with PoE, ideal for IP telephony deployment.
-
Page 2: Installation Considerations
Mitel StreamLine Quick Install Guide INSTALLATION CONSIDERATIONS The ground symbol within a circle identifies the terminal to be connected to an external protective conductor. Connect this terminal to earth ground before you make any other connections to the equipment. LOCATION AND REGIONAL SPECIFICATIONS The StreamLine can be installed in any indoor location in all countries except in Finland, Norway and Sweden, where, in these 3 Nordic countries, it must be installed in a restricted access location. - Page 3 RSTP. HARDWARE TOPOLOGY AND INSTALLATION OVERVIEW Note: Wiring harnesses and Amphenol cables are available from Mitel for connecting the StreamLine unit to the customer premises wiring. See the Mitel StreamLine Hardware Installation Guide for more information.
- Page 4 Mitel StreamLine Switch Quick Install Guide Install the protective grounding conductor (please refer to the System Grounding section of this guide). Remove all legacy analog/digital phones from the RJ11 wall jacks. Note: It is extremely important that no legacy phones be connected when you power on the StreamLine.
- Page 5 Mitel StreamLine Switch Quick Install Guide POWER CAPABILITIES AND CONSIDERATIONS StreamLine comes standard with a hot swappable power supply, for power/load sharing. For a redundant power configuration, daisy-chain multiple StreamLine switches: You can connect up to a max. of 4 units for power/load sharing.
-
Page 6: Note The Following
WARNING: FAILURE TO FOLLOW ALL INSTRUCTIONS MAY RESULT IN IMPROPER EQUIPMENT OPERATION AND/OR RISK OF ELECTRICAL SHOCK. MAKING CHANGES OR MODIFICATIONS ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY MITEL WILL VOID ANY COMPLIANCE AND REGULATORY APPROVAL, AND WILL VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. - Page 7 Mitel StreamLine Switch Quick Install Guide SAFETY WARNINGS AND PRECAUTIONS Access to the interior Der Zugang ins Innere Seul un spécialiste doit El servicio de L'accesso all'interno di of this unit shall be des Gerätes ist nur avoir accès l'appareil.
- Page 8 Mitel StreamLine Switch Quick Install Guide SAFETY WARNINGS AND PRECAUTIONS CAUTION: The VORSICHT: Die ATTENTION: La cosse PRECAUCIÓN: El ATTENZIONE: l'aletta Erdungsöse ist einer der de terre est une borne terminal de tierra es un di terra è il terminale di...
- Page 9 Mitel StreamLine Switch Quick Install Guide SAFETY WARNINGS AND PRECAUTIONS (CONTINUED) Access to the interior of O acesso ao interior Alleen bevoegde L'accès à l'intérieur de El acceso al interior de this unit shall be made desta unidade deve ser technici hebben l'unité...
- Page 10 Mitel StreamLine Switch Quick Install Guide The ground A alheta de La cosse CAUTION: ATENÇÃO: VOORZICHTIG: ATTENTION : PRECAUCIÓN: lug is a main earth terra é um terminal aardaansluiting is een de terre est une borne lengüeta de conexión terminal that must be eléctrico que deve estar...
-
Page 11: System Grounding (Earthing)
Mitel StreamLine Switch Quick Install Guide SYSTEM GROUNDING (EARTHING) General Grounding WARNING: GROUND ALL SYSTEMS ACCORDING TO THESE INSTRUCTIONS BEFORE YOU CONNECT POWER LEADS. FOLLOW GROUNDING INSTRUCTIONS EXPLICITLY TO ENSURE THE SAFETY OF PERSONNEL. Cabinets always require redundant and independent equipment grounding conductors between the cabinet and the wiring system ground: an insulated grounding conductor and a supplementary (protective) ground. -
Page 12: Fcc Part 15 Statement
Mitel StreamLine Switch Quick Install Guide FCC PART 15 STATEMENT StreamLine: This digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 13: Environmental Information
The Mitel StreamLine and the StreamLine Dongle equipment that you bought have required the extraction and use of natural resources for their production. They may contain hazardous substances that could impact health and the environment. - Page 14 © Copyright 2015, Mitel Networks Corporation. All Rights Reserved. The Mitel word and logo are trademarks of Mitel Networks Corporation. Any reference to third party trademarks are for reference only and Mitel makes no representation of the ownership of these marks. Printed in Canada...
