Mitel ShoreTel ST1D Quick Install Manual

Introduction
The ST1D/ST2D Voice Switch package contains:
• ST1D or ST2D Voice Switch
• Power cord
• Stick-on rubber feet for surface installation
• Mounting Ears - attachable installation brackets
About The ST1D/ST2D Voice Switches
Each ST1D/ST2D Voice Switch connects internal extensions or IP phones to a central
office (CO) digital trunk line.
The switch provides connectivity through:
• One audio input port (3.5 mm stereo) for connecting to a music-on-hold source
• One audio output port (3.5 mm stereo) for connecting to a corporate paging
system or night bell. You can use a paging adapter to provide a balanced output
as well as a contact closure ideal for overhead paging systems. Refer to the
Paging Adapter (PA-1) Quick Install Guide for information about the Paging Adapter.
• Two RJ-45 10/100/1000 Mbps LAN connectors
• One DB-9 (female), RS-232C maintenance port (default 115,200 bps, 8 bits, no
parity, 1 stop bit, no handshake) for serial communications
• USB port for logging/troubleshooting
• RJ-48C Telco port(s) for connecting the switch to telephone company lines. The
ST1D has one RJ-48C Telco port, and the ST2D has two RJ-48C Telco ports.
These are the T1/E1 configurable connections.

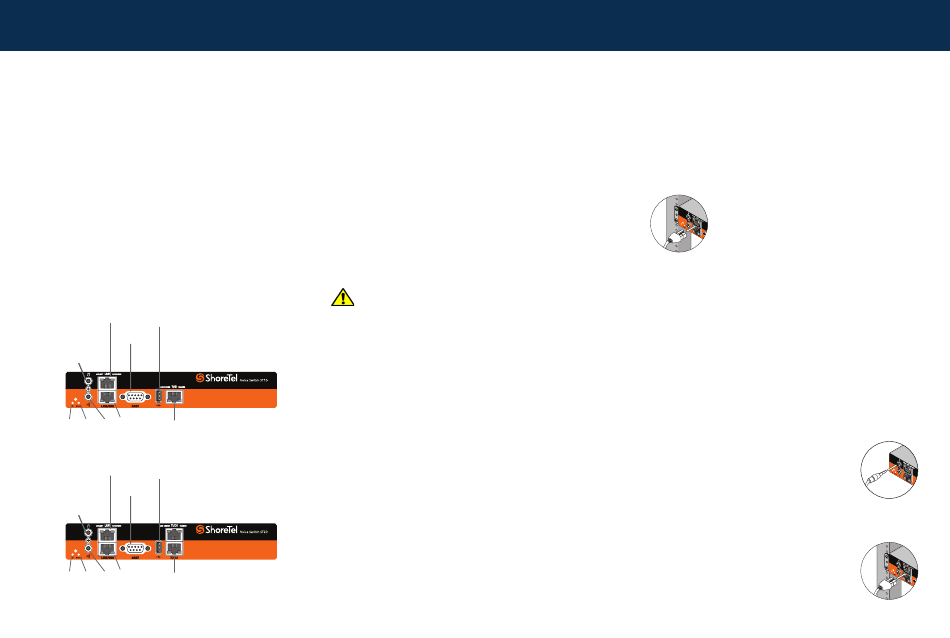

10/100/1000
Mbps Ethernet
ports
USB 2.0
LAN1
port
RS-232C
maintenance
port
Audio
input
port
Power Status Audio LAN2
T1/E1
LED LED output
Telco
port
port
10/100/1000
Mbps Ethernet
ports
USB 2.0
LAN1
port
RS-232C
maintenance
port
Audio
input
port
Power Status Audio LAN2
T1/E1
LED LED output
Telco
port
ports
Installation
Installation Equipment
To install the switch, you need the following equipment:
•
AC surge protector for the power connection
•
RJ-45 cables for connecting the switch to the local area network and telco lines
• Music-on-hold source with a standard mini-headphone adapter (optional)
• Permanent earthing connector for grounding the device
•
#1 Phillips screwdriver
Installation Location Requirements
To ensure optimum operating conditions for the ST1D/ST2D voice switch, verify the
operating environment is adequately ventilated, free of gas or airborne particles, and isolated
from electrical noise.
Installing an ST1D/ST2D Switch in a 19-inch Rack
An ST1D/ST2D switch is placed in a 19-inch rack only by installing a Rack Mount Dual
Switch Tray into the rack, then installing the ST1D/ST2D into the Tray. You can install an
ST1D/ST2D switch on the left or right side of the tray.
Refer to the Rack Mount Dual Switch Tray Quick Install Guide for information on using the tray.
Installing the ST1D/ST2D on a Wall
The ST1D/ST2D is placed on a wall by attaching the ST Voice Switch Wall Mount Bracket to
the wall, and then attaching the appliance to the bracket. Refer to the ST Voice Switch Wall
Mount Bracket Quick Install Guide for more information.
WARNING: To prevent overheating and fire hazard, do not use the Rack Mount
Dual Switch Tray to wall mount the following devices: ST1D/ST2D, ST50A/
ST100A, ST200/ST500, or ST100DA. Use the ST Voice Switch Wall Mount
Bracket to wall mount these devices.
Mounting the Voice Switch on a Flat Surface
If you plan to mount the switch on a flat surface, first attach the provided rubber feet to the
bottom corners of the device. (You can stack up to three switches in a surface installation.)
Das Voice-Schaltgerät auf einer ebenen Oberfläche montieren
Wenn Sie planen, das Gerät auf einer ebenen Oberfläche zu montieren, befestigen Sie
zunächst die mitgelieferten Gummifüße an den unteren Ecken des Geräts. (Bei einer
Oberflächeninstallation können Sie bis zu drei Schaltgeräte übereinander stapeln.)
Attaching an Earthing Connector
To meet electrical safety requirements for proper grounding, you must connect a permanent
earthing protector between the voice switch and the wiring system earth ground.
1.
Connect a ground wire (#14 AWG wire or larger) to the screw on the back of the unit and to
the right of the product label.
2.
Connect the other end of the ground wire to the wiring system ground.
CAUTION: Always connect the permanent earthing connector before attempting to connect the
switch to a LAN segment and telecommunication lines.
Einen Erdungsleiter anschließen
Um den elektrischen Sicherheitsanforderungen für eine korrekte Erdung nachzukommen,
müssen Sie einen permanenten Erdungsschutz zwischen dem ShoreGear-Gerät und der Erde
des Kabelsystems installieren.
1.
Schließen Sie ein Erdungskabel (Nr. 14 AWG oder größer) an die Schraube an der
Rückseite des Geräts an, die sich rechts neben dem Produktetikett befindet.
2.
Schließen Sie das andere Ende des Erdungskabels an die Erde des Kabelsystems an.
VORSICHT: Schließen Sie immer zuerst den permanenten Erdungsschutz an, bevor Sie
versuchen, das Gerät an ein LAN-Segment und Telekommunikationsleitungen anzus-
chließen.
Connections
Servicing Procedures
WARNING: ST1D/ST2D switches contain no internal field serviceable parts. Return the
equipment to Mitel for any required service procedures.
CAUTION: Internal fuses should be serviced only by qualified Mitel personnel. If internal
fuses are blown and require replacement, return the ST1D/ST2D switch to Mitel for
service.
WARTUNGSVERFAHREN
ACHTUNG: ST1D/ST2D enthält keine internen Teile, die vor Ort gewartet werden können.
Senden Sie das Gerät an Mitel, falls Wartungsarbeiten erforderlich sein sollten.
VORSICHT: Interne Sicherungen dürfen nur von qualifizierten Mitel-Mitarbeitern gewartet
werden. Wenn interne Sicherungen ausgetauscht werden müssen, senden Sie den ST1D/
ST2D zur Wartung an Mitel.
Connecting the Voice Switch to the Network
Once the ST1D/ST2D Voice Switch is secured to a rack,
surface-mounted, or wall mounted, you can connect it to the
data network.
Use an RJ-45 Ethernet cable to connect one or both of the LAN
ports to the network subnet.
While both ports can detect and respond to link status, the switch
creates a data connection on only one LAN port at a time.
Powering on the Voice Switch
After connecting the switch to the network, power on the device by connecting it to
an AC power source.
1. Plug an AC surge protector (not provided) into a grounded AC power source.
2. Plug one end of the provided power cord into the receptacle on the back of the
switch, then plug the other end into the AC surge protector.
The power LED flashes momentarily, and remains lit.
• If the LED is not lit, make sure the power cord is plugged into the switch and
the power source.
• If the LED continues flashing, there is an internal error. Unplug the switch to
power it off, then power it back on. Refer to the "Configuring Switches" chapter
in the Mitel Administration Guide for information on flash patterns, or contact
technical support at http://www.shoretel.com.
The LAN ports auto-sense the network transport rate. When the network connection
is established, the network LED indicates a transport rate of 10/100/1000 Mbps, and
whether the switch is receiving and transmitting data.
Optional Connections
After connecting the voice switch to the LAN, you can make
optional connections, including input from a music-on-hold
source or output to your internal paging system.
1.
Connect a music-on-hold source (CD player or other audio
source) to the audio input port.
2.
Connect your site' s paging system to the audio output
port. You can use a Paging Adapter to facilitate paging
connections. Refer to the Paging Adapter (PA-1) Quick Install Guide
for more information.
Connecting a T1/E1 Line(s)
After setting up the network connections and configuring the
ST1D/ST2D Voice Switch for operations, you can connect your
T1 or E1 line(s) to the switch.
Use an RJ-45 T1 or E1 cable to connect your T1 or E1 line(s) to
the Telco port(s).
For detailed information on switch port and trunk configuration, re-
fer to the sections "Configuring Switches" and "Configuring Trunks"
in the Mitel Administration Guide.
