Hardware Setup
Follow the steps below to assemble the hardware:
1. Ensure the hardware is protected from the effects of electrostatic
discharge (ESD).
2. On the carrier board, set DIP switch M12 #1 to OFF (Audio: I²S).
3. Insert the SD card into the SD card slot of the carrier board.
4. Connect the RS232 adapter cable to the connector on the module.
5. Connect the USB 2.0 to Serial Adapter to the RS232 adapter cable port
labeled "CONSOLE".
6. Mount the cooling solution onto the module. (Final torque: 0.4 Nm)
7. Mount the module onto the carrier board. (Final torque: 0.4 Nm)

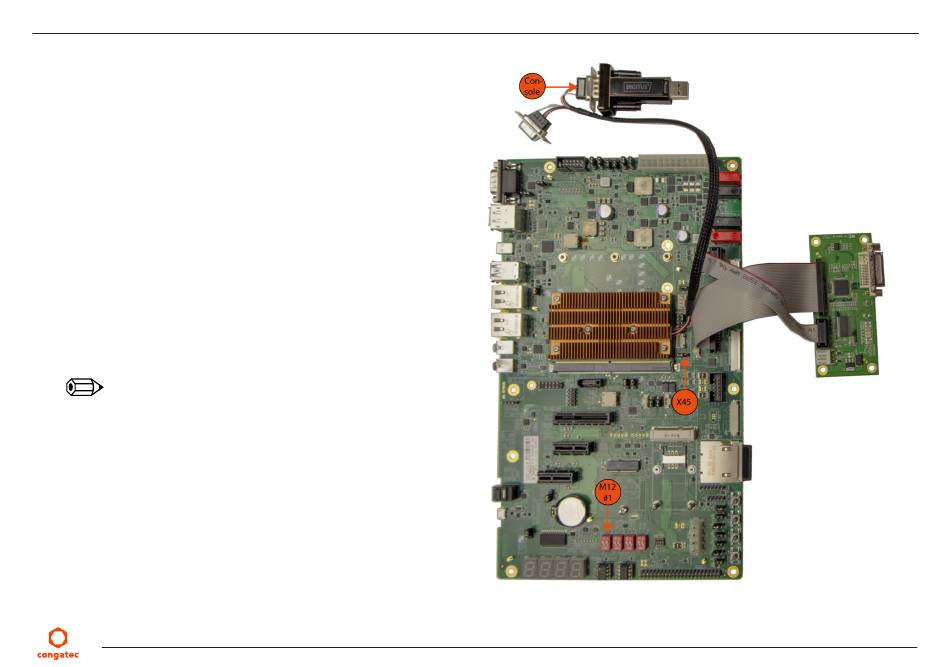

8. Connect the conga-LDVI/EPI as shown in the image on the right.
9. Connect an ATX Power Supply Unit (PSU) to the carrier board.
10. To start the system, switch the ATX PSU on.
Note
To enable serial downloader mode, set jumper X45 to position 2-3.
Copyright © 2019 congatec AG
SX8M_SDS_q12
5/7
