Sistemalux S.5217 Installation Sheet

REEF
MODELS: S.5217, S.5227, S.5237, S.5277
IMPORTANT - READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES, BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT, AND THE HAZARDS INVOLVED. PROPER GROUNDING IS REQUIRED FOR SAFETY.

SURFACE INSTALLATION ON 4" JUNCTION BOX.

INTEGRAL DRIVER (120 / 277V)

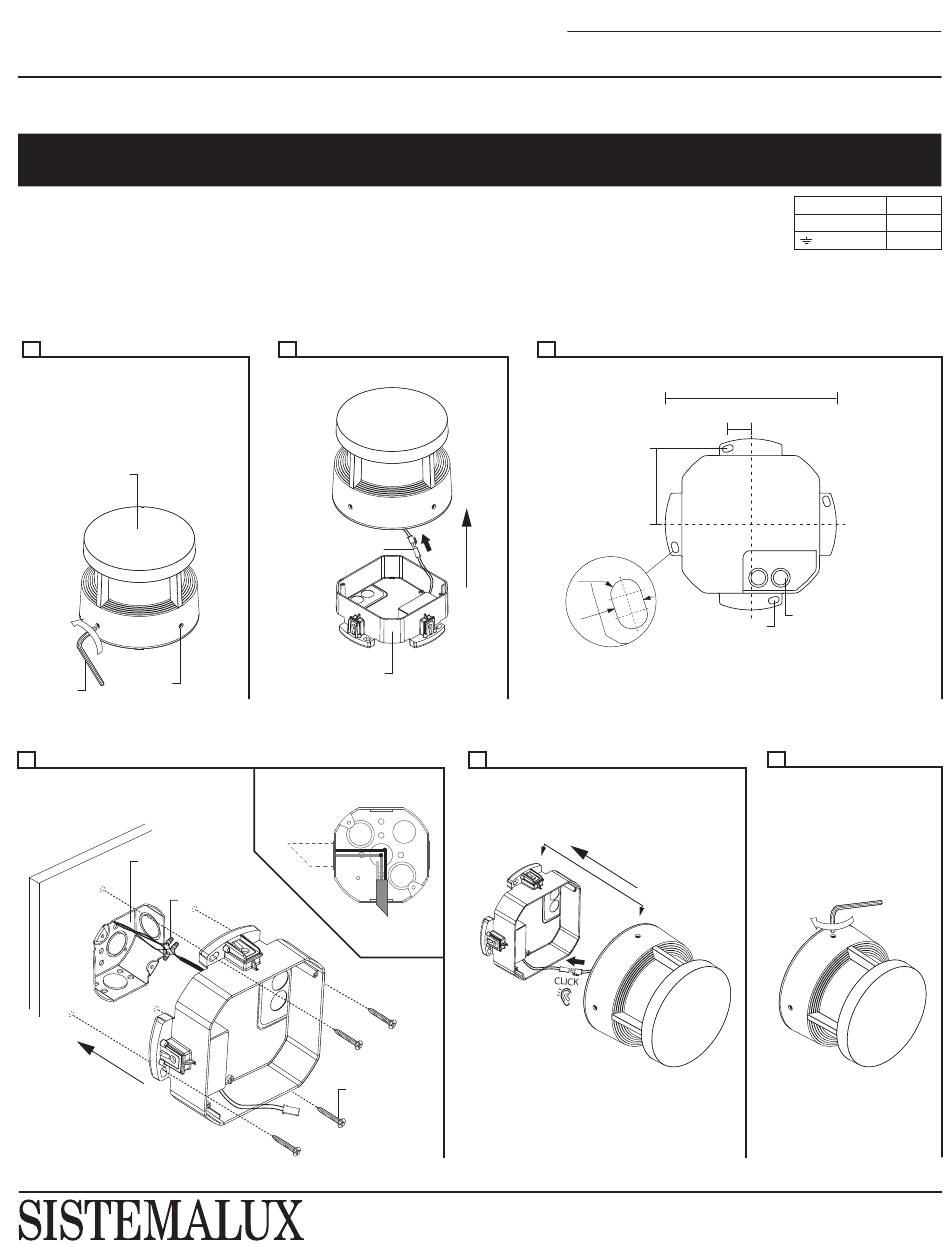

A- UNSCREW THE 4 SET SCREWS AROUND THE HEAD WITH THE INCLUDED ALLEN KEY.
B- START TO REMOVE THE HEAD SLOWLY FROM THE BASE. DISCONNECT THE ELECTRICAL QUICK CONNECTOR.
C- PREPARE SURFACE FOR INSTALLATION USING DIMENSIONS BELOW.
D- MAKE WIRE CONNECTIONS WITH TWIST CONNECTORS (FOLLOWING POLARITY MARKING).
SCREW THE FIXTURE BASE TO THE SURFACE WITH 4 SCREWS (NOT INCLUDED).
E- CONNECT THE ELECTRICAL QUICK CONNECTOR. CORRECTLY ALIGN THE HEAD WITH THE FIXTURE BASE.
F- TIGHTEN THE 4 SET SCREWS AROUND THE HEAD.
A
FIXTURE HEAD
SET SCREW
ALLEN KEY
(INCLUDED)
D
JUNCTION BOX
TWIST CONNECTORS
INS-587
B
QUICK CONNECTOR
FIXTURE BASE
NO DIMMING
AC INPUT
LINE
FIXTURE
CABLE
4 SCREWS
(NOT INCLUDED)
INSTALLATION SHEET
C
107mm
(4¼")
R4
9mm
(⅜")
E
LAST UPDATE: August 7, 2018
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
LIVE / DIM +
NEUTRAL / DIM -
242mm
(9½")
32mm
(1¼")
2 CABLE ENTRIES
4 FIXING HOLES
F
PAGE: 1 OF 3
BLACK
WHITE
GREEN
JP - R0
