^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQM=rÜê==pÉáíÉ=N
Original operating instructions

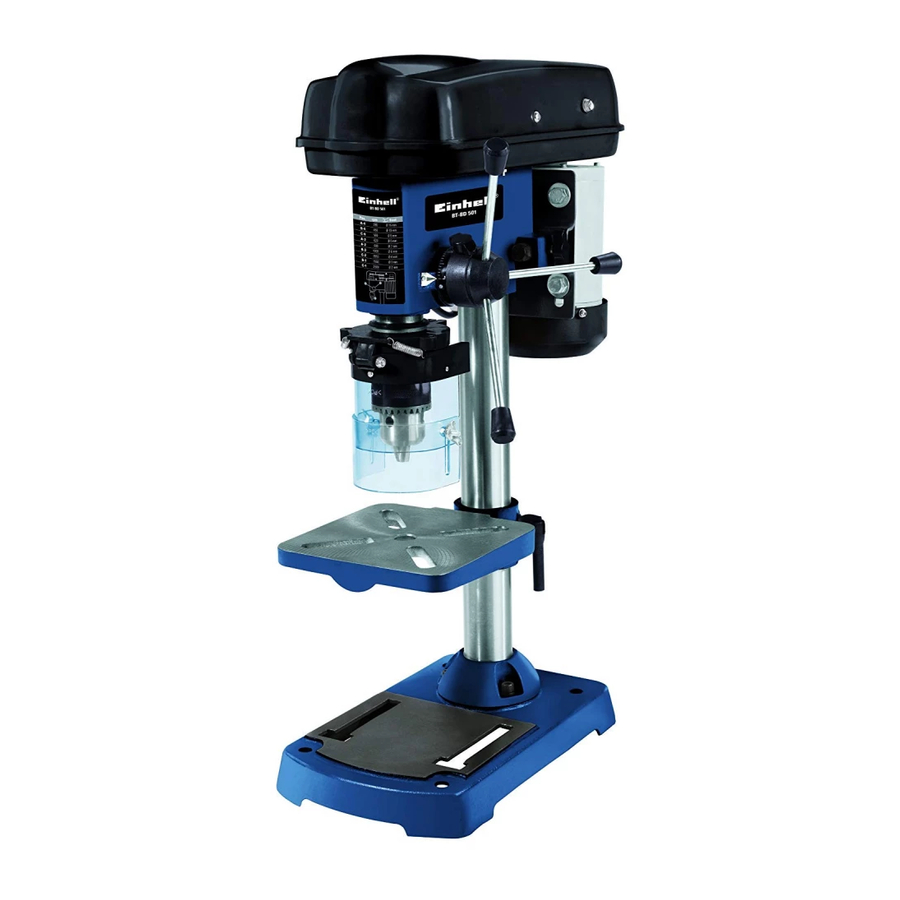

Bench Drill
501
Art.-Nr.: 42.505.42
I.-Nr.: 11012
BT-BD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-BD 501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EINHELL BT-BD 501

Summary of Contents for EINHELL BT-BD 501

  • Page 1 ^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQM=rÜê==pÉáíÉ=N Original operating instructions Bench Drill Art.-Nr.: 42.505.42 I.-Nr.: 11012 BT-BD...
  • Page 2 Anleitung_BT_BD_501_SPK7:_ 14.02.2012 8:40 Uhr Seite 2...
  • Page 3 Anleitung_BT_BD_501_SPK7:_ 14.02.2012 8:41 Uhr Seite 3 Pos. Pos. Pos. 1550 1700 2350...
  • Page 4 ^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQN=rÜê==pÉáíÉ=NM “Caution - Read the operating instructions to reduce the risk of inquiry” Wear ear-muffs. The impact of noise can cause damage to hearing. Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

  • Page 5: Safety Information

    ^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQN=rÜê==pÉáíÉ=NN 3. Items supplied Important. When using the equipment, a few safety precautions Open the packaging and take out the equipment must be observed to avoid injuries and damage. with care. Please read the complete operating instructions and Remove the packaging material and any safety information with due care.

  • Page 6: Technical Data

    ^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQN=rÜê==pÉáíÉ=NO 5. Technical data Residual risks Even if you use this electric power tool in accordance with instructions, certain residual Nominal input voltage 230V ~ 50 Hz risks cannot be rules out. The following hazards n i t may arise in connection with the equipment’s construction and layout: n i t .

  • Page 7: Operation

    ^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQN=rÜê==pÉáíÉ=NP Move the V-belt to the desired position. 6.4. Prior to using the machine for the rst time Ensure that the voltage of the mains supply complies Refer to table (Fig. 8) for the recommended with the specifications on the rating plate. Connect speeds.

  • Page 8: Replacing The Power Cable

    ^åäÉáíìåÖ|_q|_a|RMN|pmhTW|==NQKMOKOMNO==UWQN=rÜê==pÉáíÉ=NQ workpiece/machine vice on a sturdy block. 8. Replacing the power cable Important. Sheetmetal parts must be clamped in to prevent them from being torn up. Properly set the If the power cable for this equipment is damaged, it height and angle of the drill table for each workpiece. must be replaced by the manufacturer or its after- There must be enough distance between the upper sales service or similarly trained personnel to avoid...

  • Page 9: Disposal And Recycling

    ID number of the equipment Spare part number of the required spare part For our latest prices and information please go to www.einhell.com.au 10. Storage Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature.

  • Page 10: Guarantee Certificate

    The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the product. Claims made under the Einhell Express Guarantee should be submitted before the end of this guarantee period and within two weeks of the defect being noticed.
  • Page 12 EH 09/2012 (01)
