Task Force Tips Ball Intake Valve AXD1ST-NX-T Instructions For Installation, Safe Operation And Maintenance page 8

5.6"
[142mm]
AXD1ST-NX-F
Down Position
5.6"
[142mm]
AXD1ST-NX-F
Angled Position
©Copyright Task Force Tips LLC 2014-2019
12.3"
[312mm]
4.8"
[122mm]
8.7"
[221mm]
4.8"
[122mm]
9.4"
[240mm]
Jumbo Low Profi le Ball Intake Valve Front Crank With Pressure Relief Valve
R3.4 [R87]
SWING
R3.4 [R87]
SWING

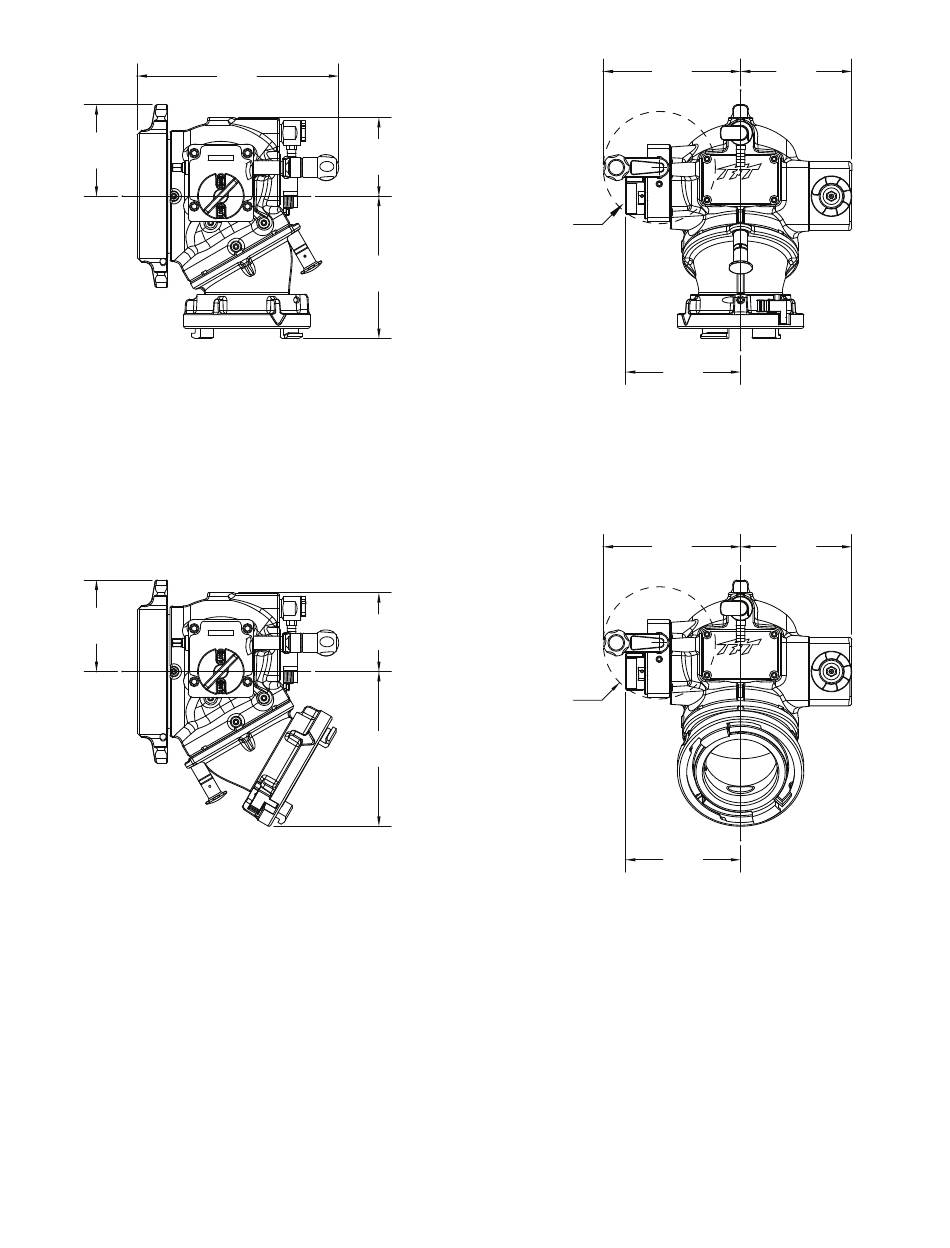

Figure 3.1.2a
Overall Dimensions:
8
6.8"
8.4"
[213mm]
[172mm]
7.0"
[178mm]
8.4" 6.8"
[172mm]
[213mm]
7.0"
[178mm]
LIA-208 August 12, 2019 Rev04
