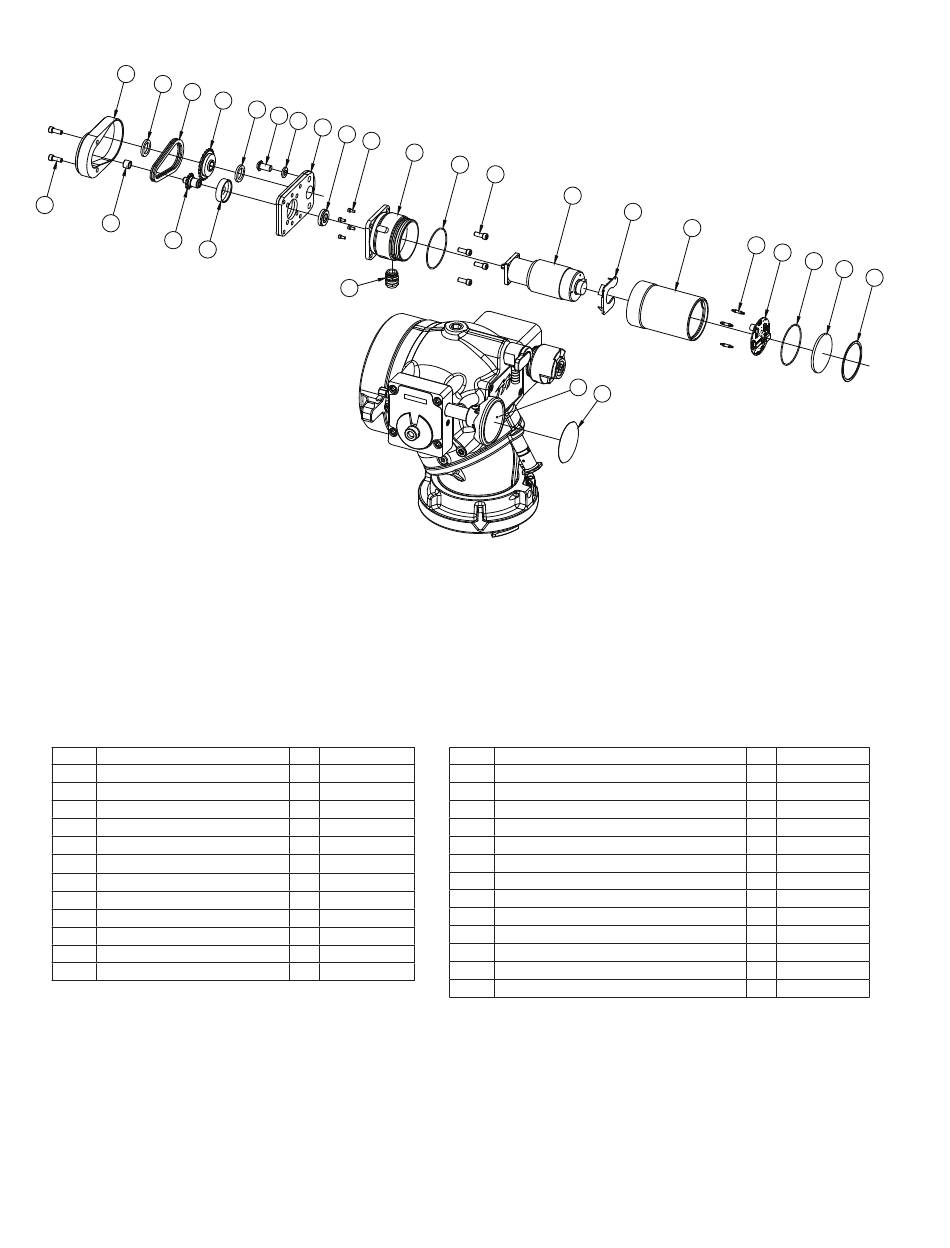

6.2 MOTOR ASSEMBLY JUMBO LOW PROFILE BIV RC PARTS LIST

1
2
3
5
6
7
8
INDEX DESCRIPTION
1 REDUCER COVER
2 THIN WASHER
3 38 LINK ROLLER CHAIN
4 BIV SPROCKET 25
5 1/4-28 X 5/8 SOCKET HEAD SCREW
6 BUSHING NYLON
7 DRIVE SPROCKET
8 BUSHING MOTOR
9 3/8-16 X 3/4 BUTTON HEAD SCREW
10 LOCK WASHER 3/8"
11 REDUCER HOUSING
12 CUP SEAL
©Copyright Task Force Tips LLC 2014-2019
4
2 9
10 11
12 13
14
QTY PART #
1 A1097
2 A1530
1 AX1685
1 A1098
6 VT25-28SH625
1 X252
1 X253
1 X256
1 VT37-16BH750
1 VW375SSLOCK
1 A1096
1 Y4620
15
16
5
17
24
INDEX DESCRIPTION
13 6-32 X 5/16 SHCS WITH SILICONE HEAD SEAL
14 STRAIN RELIEF
15 MOTOR SOCKET
16 O-RING-038
17 GEAR MOTOR W/CRIMPED TERMINALS
18 MOTOR BOARD SUPPORT
19 MOTOR ENCLOSURE TUBE
20 CIRCUIT BOARD STANDOFF
21 VALVE MOTOR BOARD
22 MOTOR ENCLOSURE CAP
23 SMALLEY RING
24 KNOB
25 OVERRIDE KNOB LABEL
18
18
19
20
25
QTY PART #
4
1
1
2
1
1
1
1
1
1
1
1
1
LIA-208 August 12, 2019 Rev04
21
17
22
23
VT06S32SH312
Y5205
Y4615
VO-038
Y4600
Y4643
Y4641
Y5538
A5825
Y4642
V4295
Z245
Y4176
