Task Force Tips Ball Intake Valve AXD1ST-NX-T Instructions For Installation, Safe Operation And Maintenance page 6

6.8"
[172mm]
7.0"
[178mm]
8.4"
[213mm]
5.6"
[142mm]
AXD1ST-NX-T
Angled Position
©Copyright Task Force Tips LLC 2014-2019
R3.4 [R87]
SWING
12.2"
[309mm]
7.2"
[183mm]
9.4"
[240mm]

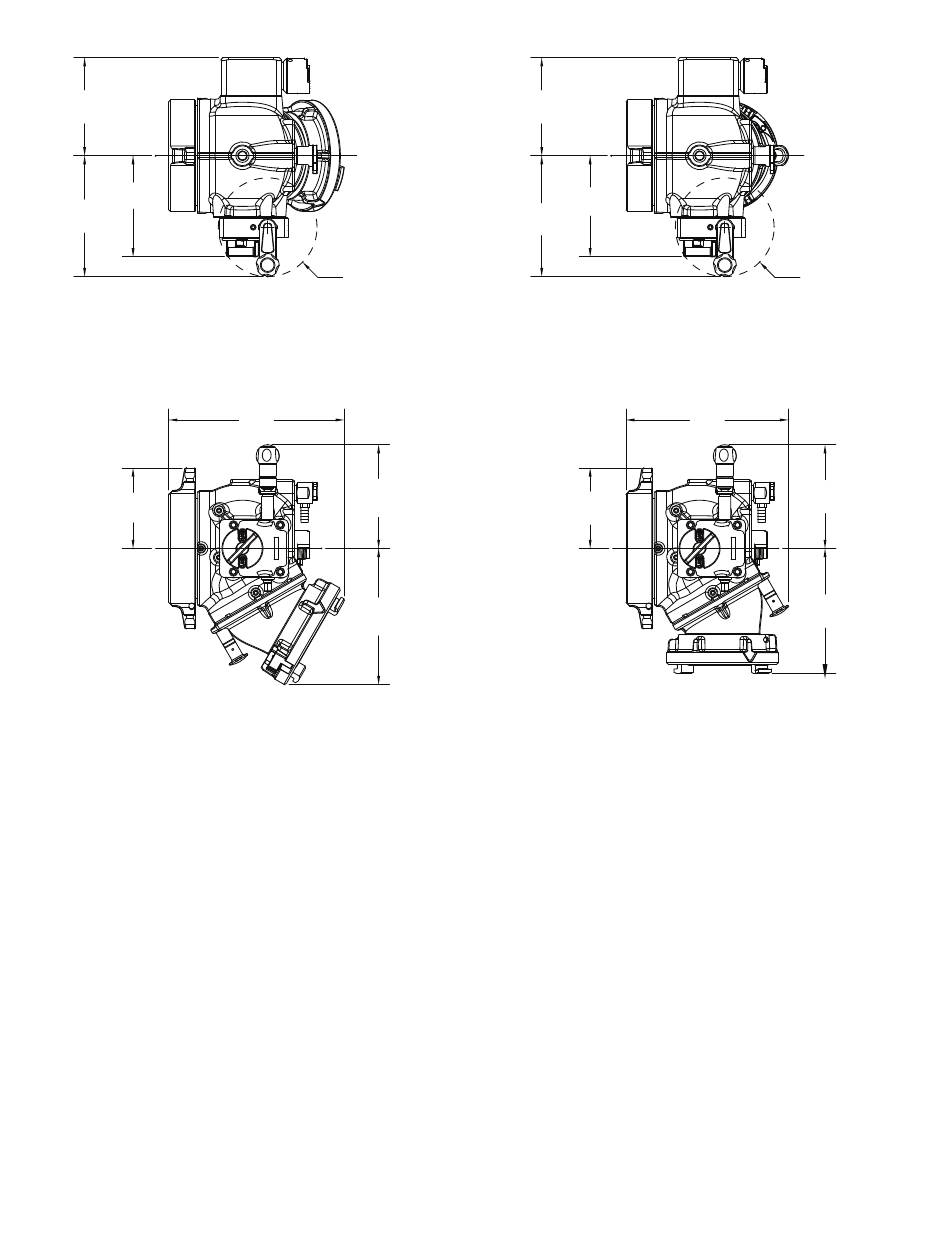

Overall Dimensions:
Jumbo Low Profi le Ball Intake Valve Top Crank With Pressure Relief Valve
6.8"
[172mm]
7.0"
[178mm]
8.4"
[213mm]
5.6"
[142mm]
Figure 3.1.1a
6
R3.4 [R87]
SWING
11.3"
[286mm]
7.2"
[183mm]
8.7"
[221mm]
AXD1ST-NX-T
Down Position
LIA-208 August 12, 2019 Rev04
