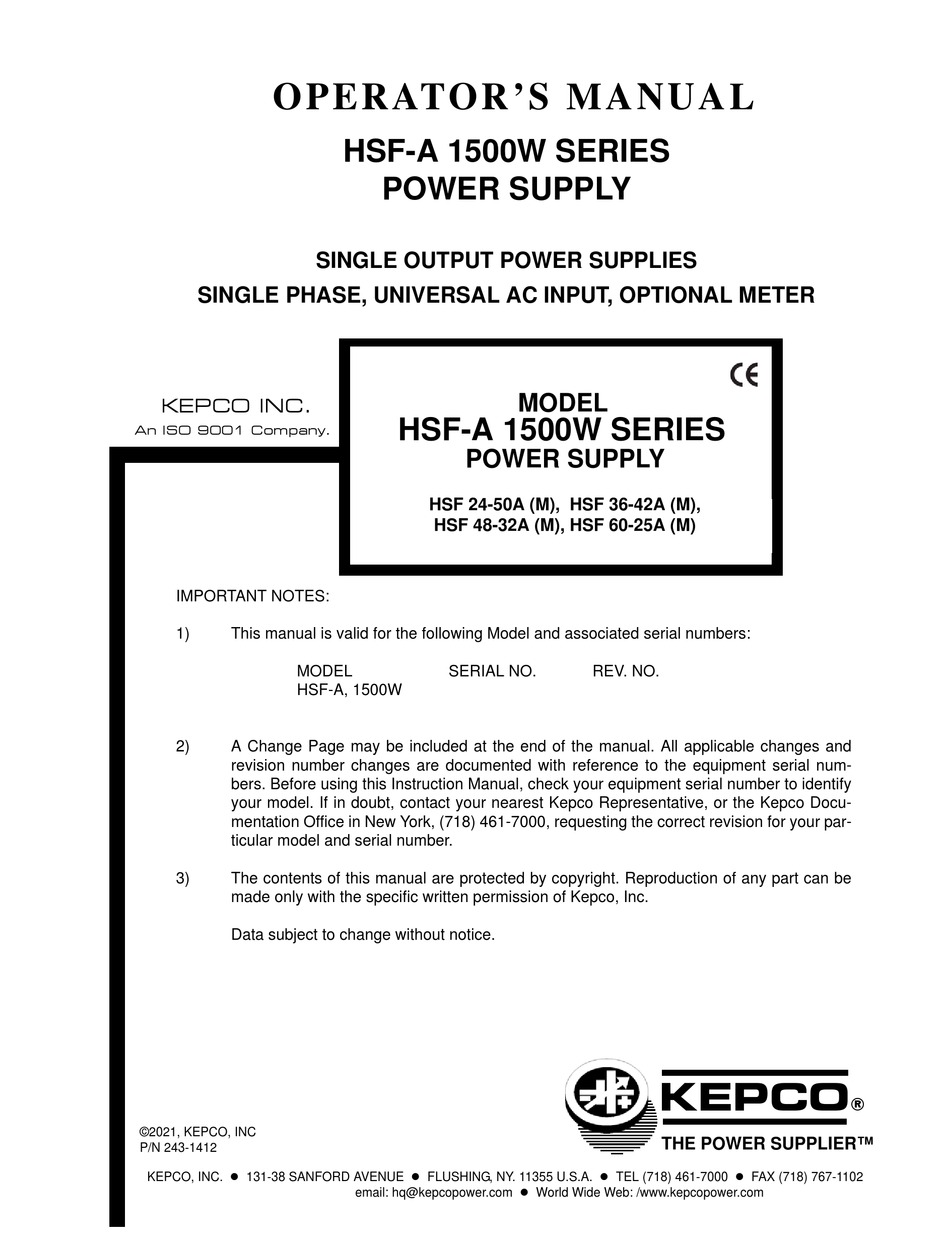

OPERATOR'S MANUAL
SINGLE PHASE, UNIVERSAL AC INPUT, OPTIONAL METER
KEPCO INC.
An ISO 9001 Company.
IMPORTANT NOTES:
1)
This manual is valid for the following Model and associated serial numbers:
MODEL
HSF-A, 1500W
2)
A Change Page may be included at the end of the manual. All applicable changes and
revision number changes are documented with reference to the equipment serial num-
bers. Before using this Instruction Manual, check your equipment serial number to identify
your model. If in doubt, contact your nearest Kepco Representative, or the Kepco Docu-
mentation Office in New York, (718) 461-7000, requesting the correct revision for your par-
ticular model and serial number.
3)
The contents of this manual are protected by copyright. Reproduction of any part can be
made only with the specific written permission of Kepco, Inc.
Data subject to change without notice.
©2021, KEPCO, INC
P/N 243-1412
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
HSF-A 1500W SERIES
POWER SUPPLY
SINGLE OUTPUT POWER SUPPLIES
HSF-A 1500W SERIES
POWER SUPPLY
HSF 24-50A (M), HSF 36-42A (M),
HSF 48-32A (M), HSF 60-25A (M)
SERIAL NO.
email: hq@kepcopower.com World Wide Web: /www.kepcopower.com
MODEL
REV. NO.
KEPCO
THE POWER SUPPLIER™
®
Advertisement
Table of Contents
Related Manuals for KEPCO HSF-A Series
Summary of Contents for KEPCO HSF-A Series
- Page 1 Data subject to change without notice. KEPCO ® ©2021, KEPCO, INC THE POWER SUPPLIER™ P/N 243-1412 KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102 email: hq@kepcopower.com World Wide Web: /www.kepcopower.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE 1. Introduction ................................ 1 Scope of Manual ............................. 1 Description ..............................1 2. Specifications ..............................2 Features ................................5 DIP Switch Configuration ..........................5 Front Panel Access............................6 Keying ................................6 Output Voltage Control............................ 7 3.4.1 Front Panel Voltage Control ......................... -
Page 3: Introduction
47-63Hz). A built-in current balancing circuit and OR-ing diodes allow configuration for hot-swap and parallel-redundant N+1 operation. These power supplies are designed to be used with Kepco's Series RA 19-4C rack adapters. The RA 19-4C rack adapter accepts up to four modules. All input/output connections are through a 24- pin connector that plugs in to the rack adapter. -
Page 4: Specifications
TABLE 1. REAR CONNECTOR PIN ASSIGNMENTS (CONTINUED) Signal Function Name +Remote On-off used with –RC, pin 21, to allow remote turn-on turn-off of the unit (see PAR. 3.6) Signal Common - return for AUX 5V pin 15, RV pin 18 and CSB pin 17. AC input ground AC Input neutral AC input line... -
Page 5: Power Supply Ratings And Specifications
TABLE 3. POWER SUPPLY RATINGS AND SPECIFICATIONS CHARACTERISTIC SPECIFICATION CONDITION/NOTES Input Voltage Range: 90-264V a-c, 127-370V d-c Up to t0% derating between 90 and 100V a-c Input Source Frequency Range: 57-63 Hz Input Current: 115V a-c 18A Maximum Load At 25°C with Nominal Output Voltage 230V a-c 9A Input Protection... -
Page 6: Power Rating Vs. Temperature, Load Vs. Input Voltage
B) PCB 0.063" THK FR-4 1.813" [46.04] C) FRONT PANEL 0.090 THK. ALUM. 6061-T6 SEE DETAIL "A" 2. FINISH: FRONT PANEL -KEPCO DUAL TONE GRAY 3. MODULE IS KEYED AS SHOWN IN DETAIL 4. DIMENSIONS ARE IN INCHES, [DIMENSIONS IN = PIN PRESENT 3044520 BRACKETS ARE IN MILLIMETERS]. -
Page 7: Features
FEATURES DIP SWITCH CONFIGURATION The power supply incorporates one DIP switch, SW1 (see Figure 5), which must be configured before the unit is installed in the rack adapter. The DIP switches control the following parameters: • Position 1 - default: position 1 is OFF. When switch is ON, AUX 5V supply is made avail- able on pin 15 (used for I C communication). -
Page 8: Front Panel Access
FRONT PANEL ACCESS. The front panel provides a power ON/OFF switch controlling input power and a “VDC ON” indica- tor which lights green when the unit is operating. The indicator lights red if the unit fails or if RESET is pressed; it lights red for about 30 seconds if there is a power loss.. CAUTION: DO NOT repeatedly toggle the power ON/OFF switch as this may cause unit to fault. -
Page 9: Output Voltage Control
Rs (see Table 2) is measured across ± IMON pins (requires millivoltmeter, range 0 to 200mV). Accuracy is ±3%; contact Kepco if greater accuracy is required. There is no isolation between ±IMON, negative d-c output, /P_OK and RV signals. -
Page 10: Remote On-Off
RA 19-4C RA 19-4C REMOTE VOLTAGE REMOTE VOLTAGE HSF SLOT 1 CONTROL USING CONTROL USING EXTERNAL RESISTANCE EXTERNAL VOLTAGE I/O 1 I/O 1 VOLTAGE SOURCE LOAD LOAD FIGURE 7. CONNECTIONS FOR REMOTE VOLTAGE CONTROL REMOTE ON-OFF When power is ON at the source, the output may be turned ON or OFF using the +RC signal if the remote ON-OFF feature is enabled. -
Page 11: Current Limit Setting And Excess Power Protection
3.7.2 CURRENT LIMIT SETTING AND EXCESS POWER PROTECTION The output characteristic of the power supply is square type, with default current limit at 105% of nominal current. If a current limit lower than the default is needed, a 0.5 to 4.5 kohm resistor can be installed on the main printed circuit board at location R9. -
Page 12: Retaining Latches
NOTE: Retaining latches must not be used to secure the HSF power supply in the rack adapter for shipping purposes. For shipping HSF units installed in the rack adapter, the units must be secured by two flat head #8 screws (Kepco P/N 101-0188): FLP0, 8-32 X 0.375, ST at the top of the rack adapter.
