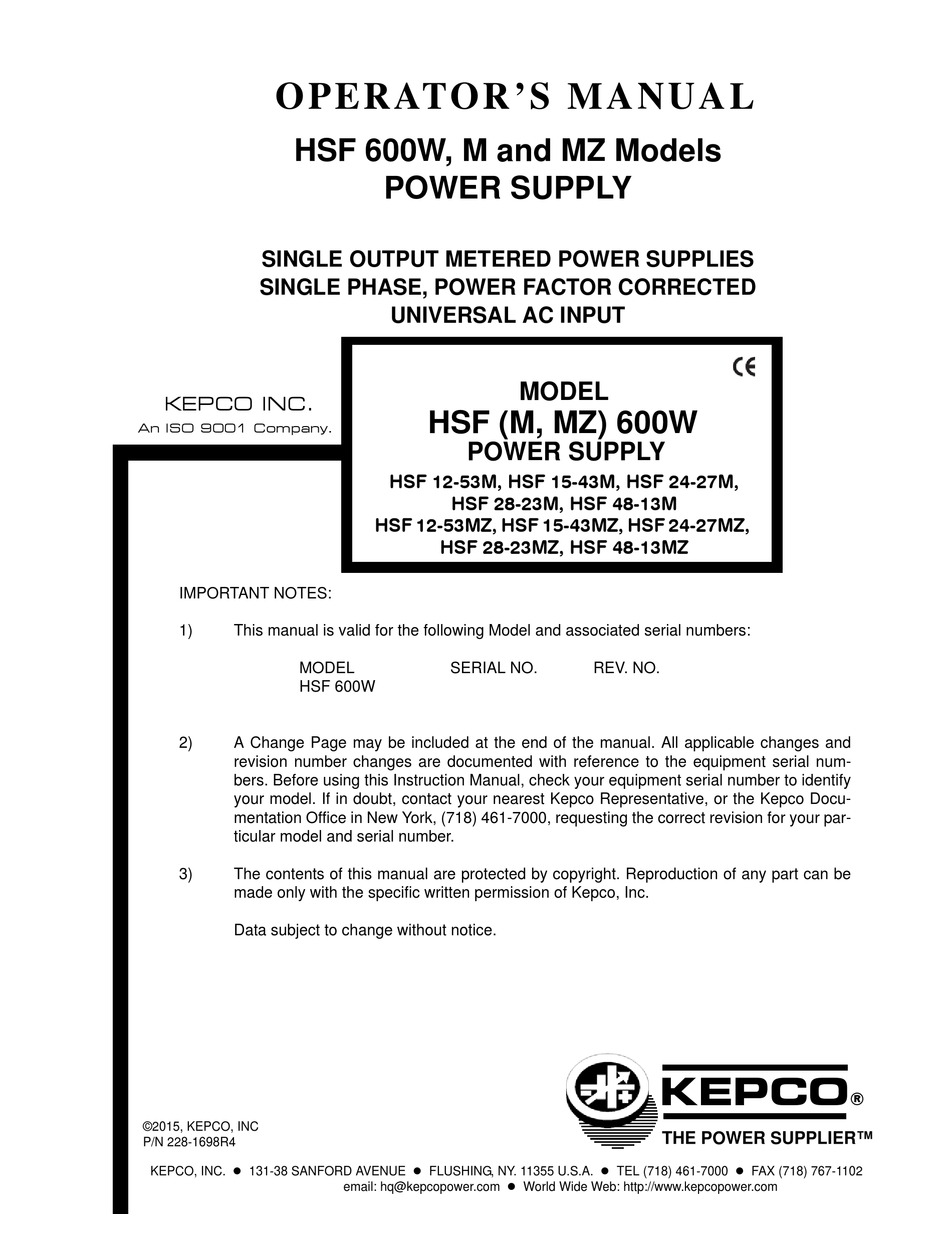

OPERATOR'S MANUAL
HSF 600W, M and MZ Models
SINGLE OUTPUT METERED POWER SUPPLIES
SINGLE PHASE, POWER FACTOR CORRECTED
KEPCO INC.
An ISO 9001 Company.
IMPORTANT NOTES:
1)
This manual is valid for the following Model and associated serial numbers:
MODEL
HSF 600W
2)
A Change Page may be included at the end of the manual. All applicable changes and
revision number changes are documented with reference to the equipment serial num-
bers. Before using this Instruction Manual, check your equipment serial number to identify
your model. If in doubt, contact your nearest Kepco Representative, or the Kepco Docu-
mentation Office in New York, (718) 461-7000, requesting the correct revision for your par-
ticular model and serial number.
3)
The contents of this manual are protected by copyright. Reproduction of any part can be
made only with the specific written permission of Kepco, Inc.
Data subject to change without notice.
©2015, KEPCO, INC
P/N 228-1698R4
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
POWER SUPPLY
UNIVERSAL AC INPUT
MODEL
HSF (M, MZ) 600W
POWER SUPPLY
HSF 12-53M, HSF 15-43M, HSF 24-27M,
HSF 28-23M, HSF 48-13M
HSF 12-53MZ, HSF 15-43MZ, HSF 24-27MZ,
HSF 28-23MZ, HSF 48-13MZ
SERIAL NO.
email: hq@kepcopower.com World Wide Web: http://www.kepcopower.com
REV. NO.
KEPCO
THE POWER SUPPLIER™
®
Advertisement
Table of Contents
Related Manuals for KEPCO HSF 12-53M
Summary of Contents for KEPCO HSF 12-53M
- Page 1 Data subject to change without notice. KEPCO ® ©2015, KEPCO, INC THE POWER SUPPLIER™ P/N 228-1698R4 KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102 email: hq@kepcopower.com World Wide Web: http://www.kepcopower.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE 1. Introduction................................ 1 Scope of Manual ............................1 Description ..............................1 2. Specifications ..............................2 Features ................................. 6 DIP Switch Configuration ..........................6 Front Panel Access............................7 Keying ................................9 Output Voltage Control........................... 9 3.4.1 Front Panel Voltage Control ........................ -
Page 3: Introduction
DESCRIPTION The Kepco HSF 600 Watt Series M and MZ models are hot swappable, high frequency switching, plug-in power supplies that are completely interchangeable with the non-metered HSF Series (except where noted, this manual applies to both M and MZ Models). Five models may be selected for outputs of 12V, 15V, 24V, 28V or 48V. -
Page 4: Specifications
TABLE 1. HSF REAR CONNECTOR PIN ASSIGNMENTS Signal Function Name Output + 1, 2, 4 DC output (+) applied to load. Output – 3, 5, 6 DC Output (–) applied to load. SENSE– Sense– connection IMON+ Current Monitor+ (sense resistor). SENSE+ Sense+ connection Normally Open contact of alarm relay, referenced to AL COM, pin 14 (see PAR. -
Page 5: Power Rating Vs. Temperature (Input: 95 To 264V A-C)
TABLE 2. OUTPUT RATINGS AND SPECIFICATIONS MODEL HSF 12-53* HSF 15-43* HSF 24-27* HSF 28-23* HSF 48-13* Output Volts d-c (nominal) Using front panel trim 9 to 13.8 11.5 to 17.4 17 to 28.2 21.5 to 33 35 to 52.2 Output 0 to 13.8 0 to 17.4... -
Page 6: Power Supply Ratings And Specifications
TABLE 3. POWER SUPPLY RATINGS AND SPECIFICATIONS CHARACTERISTIC SPECIFICATION CONDITION/NOTES Input Voltage Nominal: 100-120V a-c, 200-240V a-c 0 to 100% load, -10 to 40°C Range: 85-264V a-c , 110-370V d-c Input Source Frequency Nominal: 50-60 Hz 0 to 100% load, -10 to 40°C Range: 47-440 Hz At 440 Hz leakage current exceeds UL/VDE safety spec. - Page 7 UL 60950-1, 1st Edition, 2007-10-31; CSA C22.2 No. 60950-1-03, 1st Edition, 2006-07; EN 60950 RoHS Compliance Contact Kepco Sales for further information. EMC Emission - Conducted: Designed to meet FCC Class B, VCCI-Class B, EN55011-B, EN55022-B EMC Emission - Radiated:...
-
Page 8: Features
B) PCB 0.063" THK FR-4 C) FRONT PANEL 0.090 THK. ALUM. 6061-T6 SEE DETAIL "A" 2. FINISH: FRONT PANEL -KEPCO DUAL TONE GRAY 3. MODULE IS KEYED AS SHOWN IN DETAIL 4. DIMENSIONS ARE IN INCHES, [DIMENSIONS IN BRACKETS 3043128 ARE IN MILLIMETERS]. -
Page 9: Front Panel Access
• Positions 5 and 6 of SW1 and SW2 allows alarm signals to be produced from either internal relay, Form C contacts (one NO, one NC) or open-collector logical alarm signals (see PAR. 3.8.2). • MZ Models only: Position 7 of SW1 either enables (default) or disables using the inter- nal power supply reference voltage to power the DC ON/ALARM indicator. -
Page 10: Front Panel Controls, Indicators And Test Points
If remote voltage control (see PAR. 3.4.2) is not enabled, the front panel Vadj trimmer (see PAR. 3.4.1) provides adjustment of the output voltage within the limits specified in Table 2; test points are available at the front panel for monitoring the DC output. Figure 5 shows the location of all operating controls, indicators and test points followed by an explanation of each. -
Page 11: Keying
KEYING Keying of the HSF 600W is established at the factory. The output voltage determines which key pins are installed (see Figure 3, Detail A). When the proper holes in the rack adapter are blocked by keying screws installed by the user, only a power supply of the correct voltage can be inserted in the rack adapter slot. -
Page 12: Mz Models Only: Vdc On/Alarm Indicator Function
FIGURE 7. CONNECTIONS FOR REMOTE VOLTAGE CONTROL TABLE 4. M MODELS: MINIMUM CONDITIONS FOR RELAY, METER AND LED OPERATION MODEL HSF 12-53M HSF 15-43M HSF 24-27M HSF 28-23M HSF 48-13M Minimum HSF output voltage required for relay, meter 11.5 21.5... -
Page 13: Remote On-Off
TABLE 5. MZ MODELS: CONDITIONS FOR VDC ON/ALARM LED OPERATION POWERED BY OUTPUT CONDITION MODEL: HSF 12-53M HSF 15-43M HSF 24-27M HSF 28-23M HSF 48-13M Minimum HSF output voltage required for VDC ON LED to function when SW 2 position 8 is ON and SW 1... -
Page 14: Reset (Restart)
RESET (RESTART) There are three ways to reset the unit: • If remote on/off feature (see PAR. 3.5) IS NOT in use, press and release the OUTPUT RESET switch on the front panel. • If the remote on/off feature IS in use (see PAR. 3.5), open the connection between the ±RC pins and then reconnect the pins. -
Page 15: Alarm Settings
The second option uses optically-coupled logic level alarm signals, +PF (pin 5 of the rack adapter I/O connector) and -PF (pin 13), provided directly from the Kepco RKW power supply that is the heart of the HSF. This option is selected by setting positions 5 and 6 of the DIP switches as shown in Figure 10B. -
Page 16: Dip Switch Settings For Optically Coupled Logical Alarm
USE N.O. AND N.C CONTACTS USE OPTICALLY-COUPLED OF INTERNAL RELAY LOGICAL ALARM (FACTORY DEFAULT) (+PF AND -PF) 5 +PF +PF 5 5 +PF +PF 5 -PF 6 -PF 6 6 -PF 6 -PF 3042878 FIGURE 10. DIP SWITCH SETTINGS FOR OPTICALLY COUPLED LOGICAL ALARM The logic alarm circuit is a diode transistor optical coupler (see Figure 11). -
Page 17: Local/Remote Sensing
LOCAL/REMOTE SENSING HSF 600W Power Supplies allow remote error sensing which can compensate up to 0.4 Volts per load wire. Local/Remote error sensing is configured by means of separate DIP switches mounted on the RA 19-4C Rack Adapter (see RA 19-4C Rack Adapter Operator Manual). Either local or remote sensing MUST be used, otherwise the units will not operate. -
Page 18: Parallel Connections, M Models
