10 Replacing components | Removing/replacing connectors

10.2 Removing/replacing connectors

Explosion risk!
▶ Prior to starting work, make sure that
there is not a potentially explosive atmos-
phere!
Operation of the machine/system can
be disrupted!
▶ In the event of the machine/system being
put into a dangerous state as a result of
the removal of a connector, a replacement
can only be made once the machine/sys-
tem is disconnected from the power!
Risk of contact fire!
▶ Remove connectors only while they are
load current free.
The product can be destroyed by elec-
trostatic discharge!
The components can be destroyed by electro-
static discharge.
▶ Please make sure that personnel and work
equipment are adequately earthed!

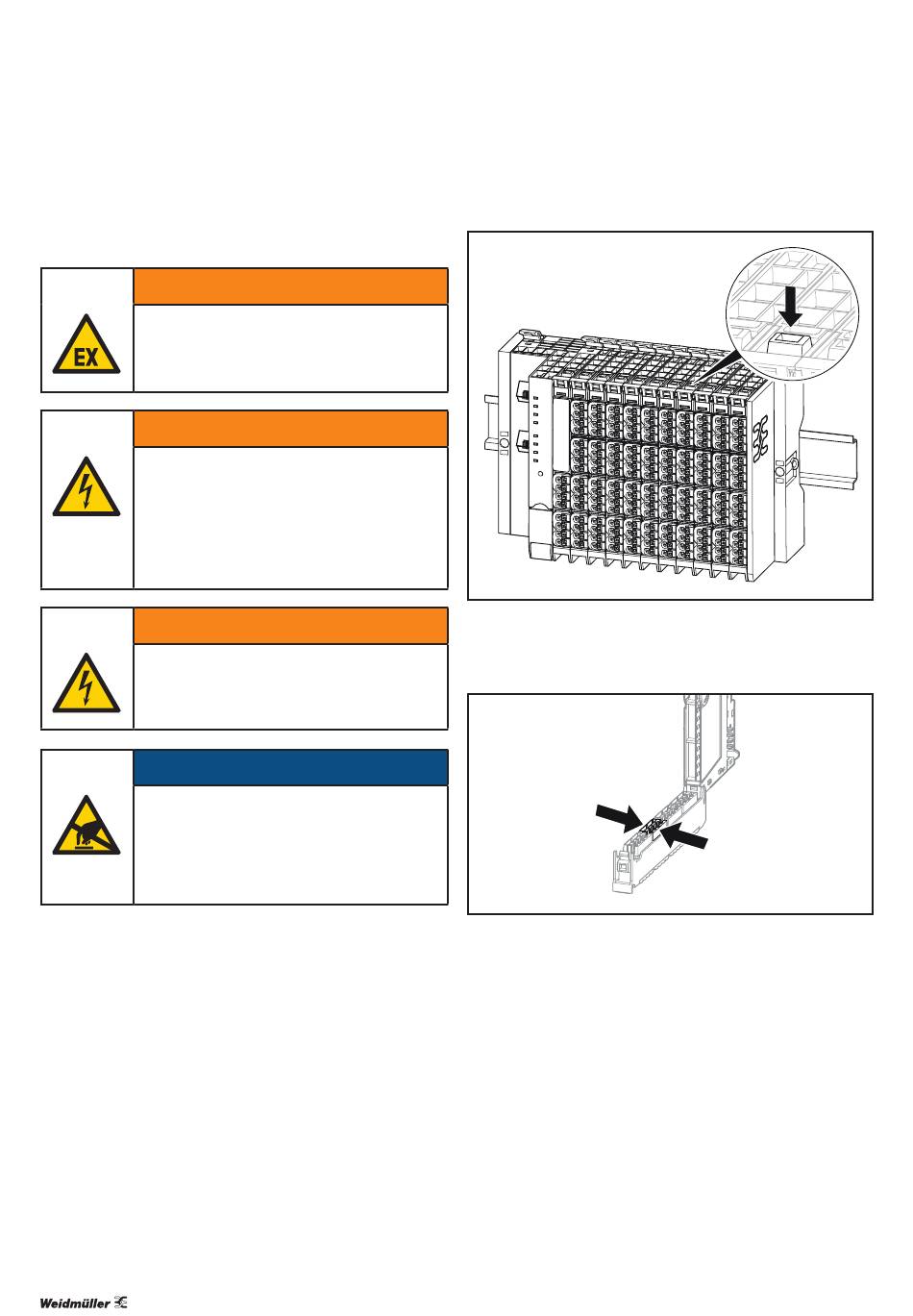

▶ Open the connector frame and flip the plug-in unit open
so far that you can reach the connector.
66
WARNING
WARNING
WARNING
ATTENTION
X1
X
Unlocking the connector frame
▶ Press both sides of the connector together so that it can
be slid off the frame.
Pushing the connector together
▶ Remove the connector by pulling it off.
▶ Insert the new connector in the frame so that it audibly
clicks into place.
▶ Swivel the plug-in unit upwards until the connector frame
clicks into place.
