5.4

UC20-SL2000-EC-CAN

Up to 64 active u-remote modules can be connected via
the u-remote system bus to the UC20-SL2000-EC-CAN
controller. The controller has two Ethernet connections for
integration into the existing network architecture or HMI con-
nections.
The controller has a CAN interface. For information regarding
the CAN-based communication protocols, which are support-
ed by the controller, please refer to the documentation for
the u-create studio software.
The controller can be configured as a EtherCAT master.
The u-control station can be configured and parametrised
and controlling applications can be programmed using the
engineering tool u-create studio (according to IEC 61131-3,
additional programming languages: C and C++)
The station's main power supply is integrated into the con-
troller. Power is supplied via two 4-pole connectors, separat-
ed into the input and output current paths.

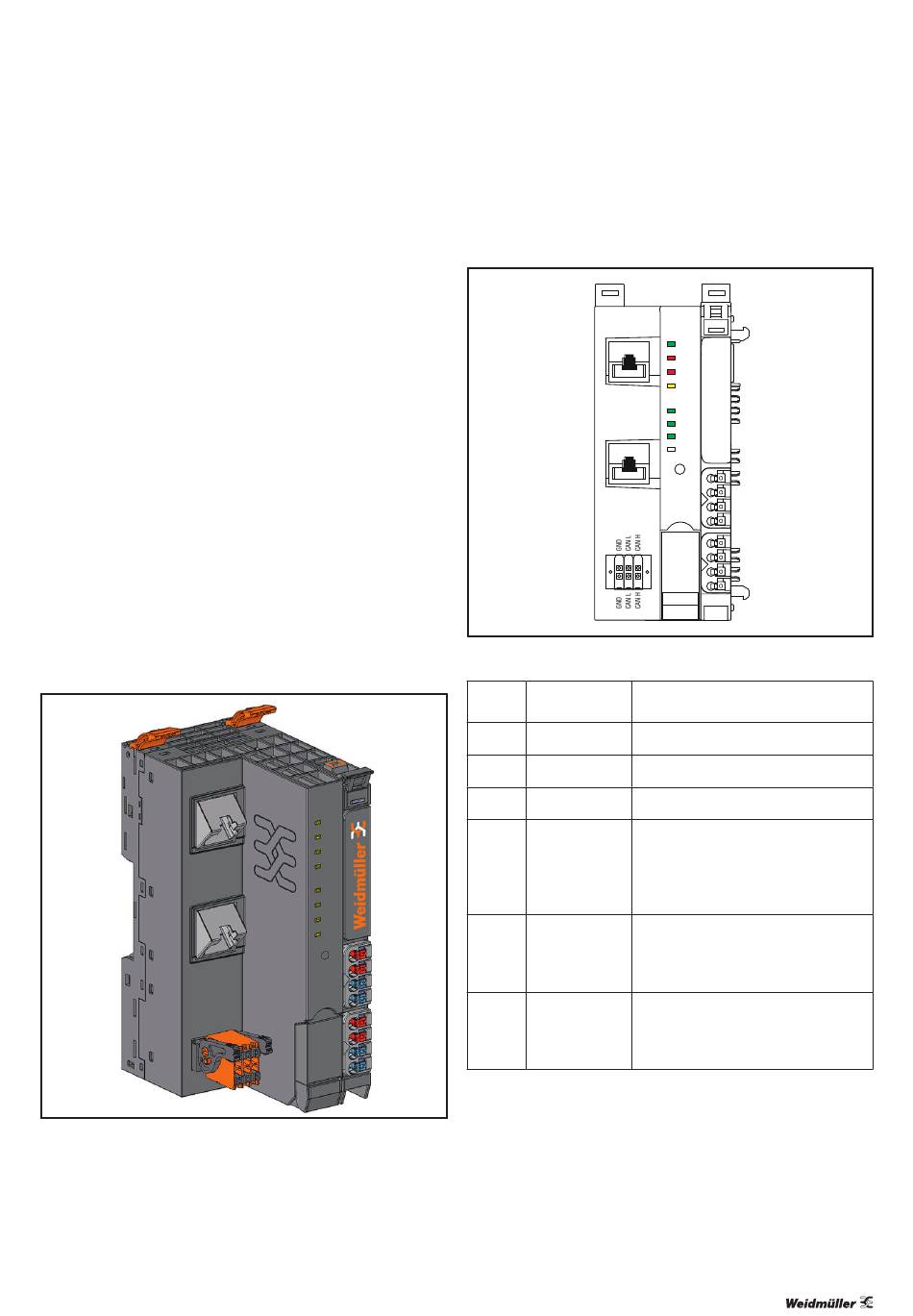

Controller UC20-SL2000-EC-CAN (Order No. 2674620000)
2604080000/03/08.2020
5 Detail description of controllers | UC20-SL2000-EC-CAN
Status indicators
LED status indicators UC20-SL2000-EC-CAN for error messages see Chapter 12
PWR
Power LED
SF
System failure
BF
Bus failure
MT
Maintenance
RUN Controller status
L/A X1 Connection/
activity
L/A X2
Connection/
activity
Manual u-control
SL-EC-CAN
X1
PWR
SF
BF
MT
RUN
L/A X1
X2
L/A X2
1
2
3
3
4
1
X4
2
4
3
4
green: supply voltage present, firmware is
running
red: system bus failure
red: field bus failure
yellow: communication error with module
green: application running
green flashing: application stopped
yellow: operating system running
yellow flashing: system update running
red: serious system failure
green: connection of controller connection 1
with an additional field device
green/yellow flashing: data being ex-
changed on connection 1
green: connection of controller connection 2
with an additional field device
green/yellow flashing: data being ex-
changed on connection 2
