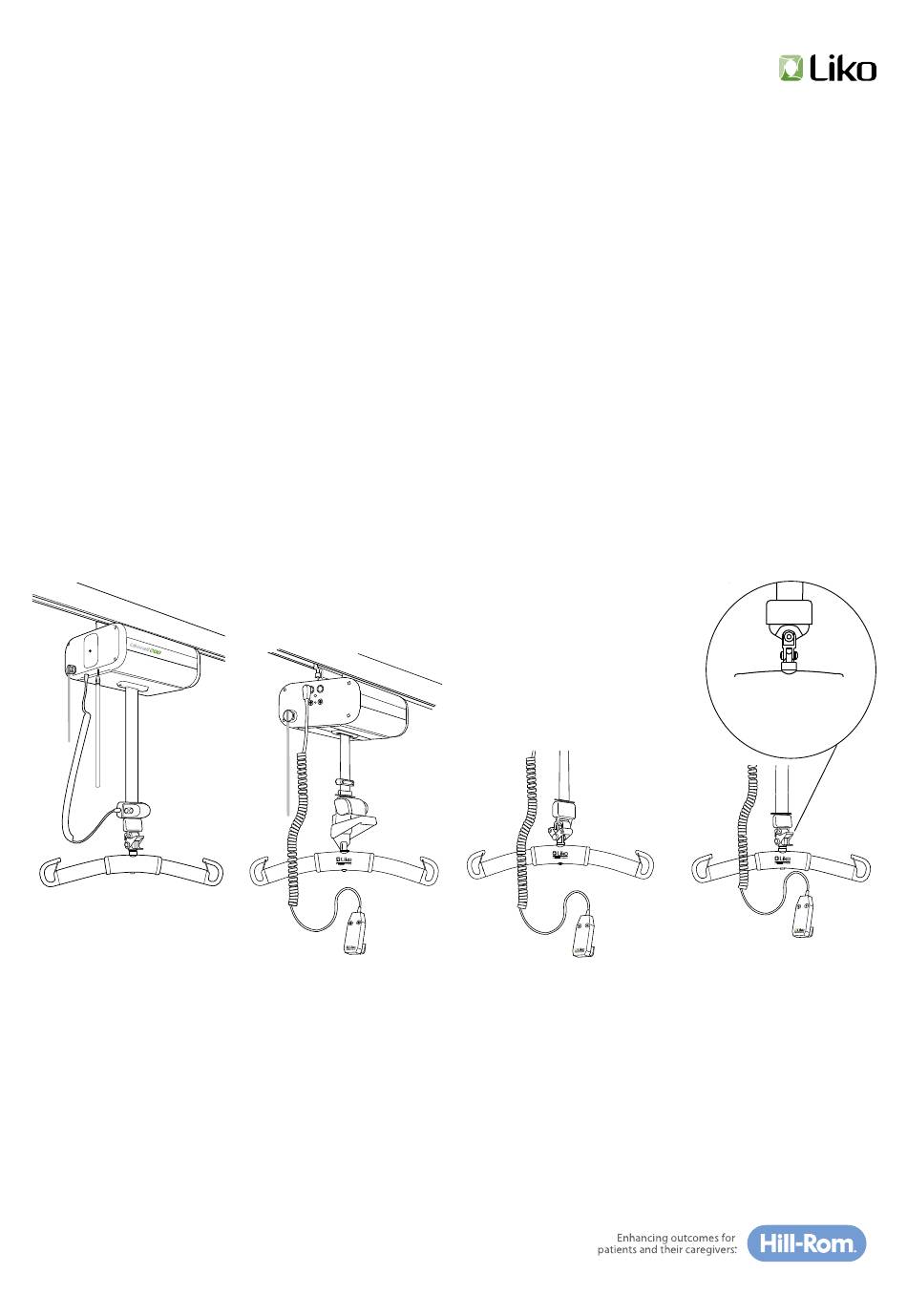

Likorall™
Service Manual
Likorall 200
Prod. No. 3121001
Likorall 240 natural / white
Prod. No. 3120001-3121617
Likorall 242 natural / white
Prod. No. 3122001-3122004
Likorall 242 ES
Prod. No. 3122005-3122006 / NA
Likorall 242 ES R2R
Prod. No. 3122007-3122008 / NA
Likorall 242 S
         
Prod. No. 3122009-3122010 / NA
Likorall 242 S R2R            
Prod. No. 3122011-3122012 / NA
Likorall 243 ES, natural
Prod. No. 3123001 / NA
Likorall 243 ES, white
Prod. No. 3123002 / NA
Likorall 250 ES, natural
Prod. No. 3122501 / NA
Likorall 250 ES, white
Prod. No. 3122502 / NA
Likorall 250 S, IRC
Prod. No. 3124050
Likorall 200
3EN200405 Rev 9
ENGLISH
© Copyright Liko AB, 2014 June
Discontinued 2004
Discontinued 2004
Likorall 242 S
Likorall 242 ES
Likorall 242 S R2R
Likorall 242 ES R2R
Likorall 243 ES, NA
Likorall 250 ES, NA
Likorall 243 ES
Likorall 250 ES
Likorall 250 S IRC

Advertisement

loading
Need help?

Need help?

Do you have a question about the Likorall 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hill-Rom Likorall 200

  • Page 1 Likorall™ Service Manual Likorall 200 Prod. No. 3121001 Likorall 240 natural / white Prod. No. 3120001-3121617 Discontinued 2004 Likorall 242 natural / white Prod. No. 3122001-3122004 Discontinued 2004 Likorall 242 ES Prod. No. 3122005-3122006 / NA Likorall 242 ES R2R Prod.
  • Page 2: Table Of Contents

    Likorall™ Page 1.0 Table of Contents ..................3 2.0 Spare Parts Positions ................5 3.0 Technical Data Likorall 200 ................8 Likorall 240, 242 ..............8 Likorall 242 S/ES, 243 S/ES, 250 S/ES ........9 4.0 Troubleshooting Likorall 200 ................10 Likorall 240, 242, 243, 250 ..........11 5.0 Spare Parts List.
  • Page 3 Spare parts are available in the spare parts list or in the Service Manual for each model of lift. Components (manufacturing parts) are not available after last manufacturing date. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts.
  • Page 5 Likorall™ Spare Parts Positions PROD. NO. PRODUCT 3121001 Likorall 200 PROD. NO. PRODUCT PROD. NO. PRODUCT 3122001 Likorall 242 (Discontinued 2003) 3120001-3120999 Likorall 240 (Discontinued 2003) 3122002 Likorall 242, white 3121607 Likorall 240 R2R 3122003 Likorall 242 R2R 3121617 Likorall 240 R2R, white...
  • Page 6 Likorall™ Spare Parts Positions PROD. NO. PROD. NO. PRODUCT PRODUCT PROD. NO. PRODUCT 3122005 Likorall 242 ES 3122007 Likorall 242 ES R2R 3122006 Likorall 242 ES, white 3122008 Likorall 242 ES R2R, white 3122009 Likorall 242 S 3122011 Likorall 242 S R2R 3122010 Likorall 242 S, white 3122012...
  • Page 7 Likorall™ Spare Parts Positions PROD. NO. PRODUCT 3122501 Likorall 250 ES 3122502 Likorall 250 ES, white 264 311 3122501NA 3122502NA PROD. NO. PRODUCT 3124050 Likorall 250 S IRC Motor Cable Cable adapter battery Cable for Limit Switch Cable Emergency Stop Strain relief hook 264 311 www.
  • Page 8: Table Of Contents

    Safety Instructions ....................2 Likorall™ Technical Specifications ..................2 Product Description .................... 3 Technical Data Assembling ......................3 e of Contents Likorall 200 Technical Data Charging the battery ..................3 ..............2 User's Guide ....................... 4 Intermittent power: Maximum load: Operating Likorall ......................
  • Page 9: Likorall 242 S/Es, 243 S/Es, 250 S/Es

    Likorall™ Technical Data Likorall 242 S/ES, 243 S/ES, 250 S/ES Technical Data Maximum Likorall 242: 200 kg (440 lbs) Emergency Mechanical: Likorall 242 load: lowering device: Electrical: Likorall 242 R2R Likorall 243: 230 kg (507 lbs)     Likorall 243 Likorall 250: 250 kg (550 lbs)  ...
  • Page 10 Quick Reference Guide (see respective product) Likorall™ Troubleshooting Likorall 200 Simple Troubleshooting 1. Check to ensure that the emergency stop The lift doesn’t work. button is not pressed in (page 5). 2. Charge the battery (page 7). 3. If the lift still does not function properly, please contact Liko/Hill-Rom 1.
  • Page 11 1. Charge the battery immediately. the lift 2. If the lift still does not work properly, please contact Liko/Hill-Rom . The lift stops in the high position 1. Check to ensure that the emergency stop button is not pressed in.
  • Page 12 Likorall™ Spare Parts List w w w . l i ko . com www.liko.com 3EN200405 Rev. 9...
  • Page 13 Likorall™ Spare Parts List w w w . l i k o. com www.liko.com 3EN200405 Rev. 9...
  • Page 14 Kritiskt om man sätter nya längre band på gammal motor Likorall™ = riskerar att dra sönder i motorn mot mek stopp. Spare Parts List ww w. li ko. com www.liko.com 3EN200405 Rev. 9...
  • Page 15 It is very important that the correct lift strap is mounted to the overhead lift motor. Older versions of Likorall have black shorter lift strap. (Likorall 200 has short and long grey lift straps) Likorall serial number (S/N) controls the choice of lift strap.
  • Page 16 It is very important that the correct lift strap is mounted to the overhead lift motor. Older versions of Likorall have black shorter lift strap. (Likorall 200 has short and long grey lift straps) Likorall serial number (S/N) controls the choice of lift strap.
  • Page 17 It is very important that the correct lift strap is mounted to the overhead lift motor. Latest versions of Likorall have grey longer lift strap. (Likorall 200 has short and long grey lift straps) Likorall serial number (S/N) controls the choice of lift strap.
  • Page 18 It is very important that the correct lift strap is mounted to the overhead lift motor. Latest versions of Likorall have grey longer lift strap. (Likorall 200 has short and long grey lift straps) Likorall serial number (S/N) controls the choice of lift strap.
  • Page 19: Spring Magazine

    Likorall™ Spare Parts Spare Parts List Likorall PROD. NO. POS. NO. NAME UNIT Electronic Cards 31290073 Electronic card with cover LR 200 31290085 Gable LR 250 S IRC 31290109 Electronic Card with Cover 242 ES (From S/N 423745) 31290110 Electronic Card with Cover 242 S (From S/N 262603) 31290111 Electronic Card with Cover 243/250 ES...
  • Page 20: Body/Handle Set For Emergency Lowering Device

    Likorall™ Spare Parts Spare Parts List Likorall PROD. NO. POS. NO. NAME UNIT 31290014 Cable for Handcontrol with Connecting Plug LR24, 5 pol Fits 3126031 3106004 Parking Bracket Fits Instruction Placard Likorall, 3126003 3126031 Hand Control LR 2 buttons (5-pin connector) For operating lifting motion LR240/242 3126033 Hand Control LR with extra long cable (5-pin connector)
  • Page 21: Latch

    Likorall™ Spare Parts Spare Parts List Likorall PROD. NO. POS. NO. NAME UNIT 31290068 Electrical Motor LR 240 31290070 Cable f hand control LR 242 S/ES (8-pin connector) Fits: 3126034 31390007 Restoration set Limiting switch Fits only with liftstrap assembled with mechanical emergency lowering.
  • Page 22 Likorall™ Spare Parts Spare Parts List Likorall PROD. NO. POS. NO. NAME UNIT 31590005 Q-link 31590025 Lift strap joint 31290080 Emergency Stop Mk2 21090060 Key pad Hand Control 2-buttons (Replaces Spare Part No. 21090038) 31290086 Fuse 12 A, 10 pce Only to Likorall 242, 243, 250 with this type of fuse holder: 31290087...
  • Page 23 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com www.liko.com...
  • Page 24 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com ©...
  • Page 25 5.79 5.79.1 Likorall™ Plastic Housing Bandmagasin Assembly Instruction Monteringsanvisning Contains: Qty: Prod. No. 31190008 Plastic Housing Locking pin 3x48 3SE640289-03 Fits: 2009-12-15 Golvo 7000/7007, 7000S/7007S Golvo 7000ES to S/N 7024205 Tools required: Golvo 7007ES to S/N 7729721 Masterlift 2200, 2300 Likorall 240, 242, 242S, 242ES 13 mm 1.
  • Page 26 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com ©...
  • Page 27 - Make sure the spare part is mounted according to the assembly instruction. - Pull up on the latch and make sure it falls to the closed position when released. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com ©...
  • Page 28 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com ©...
  • Page 29 - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. - Old batteries are to be left at the nearest recycling station or given to personnel authorized by Hill-Rom/Liko. www.liko.com www.liko.com 3EN200405 Rev.
  • Page 30: Handcontrol Lr 2 Buttons

    - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com www.liko.com...
  • Page 31 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com...
  • Page 32 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com...
  • Page 33 - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com...
  • Page 34: Hook R2R

    - Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com ©...
  • Page 35: Strap Stop

    After changing strapstop the lift must be tested with maximum load. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. After changing strapstop the lift must be tested with maximum load.
