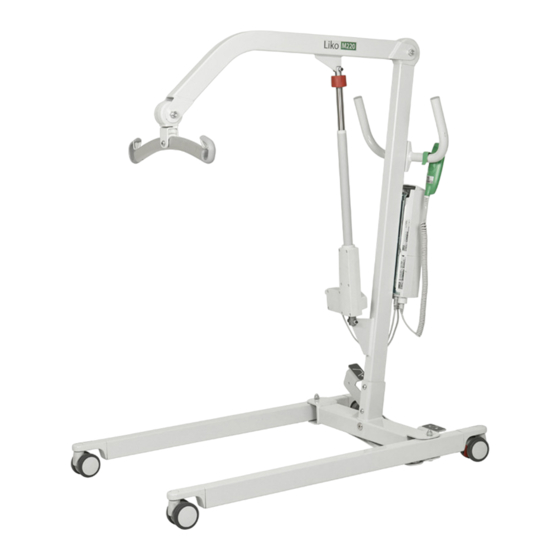

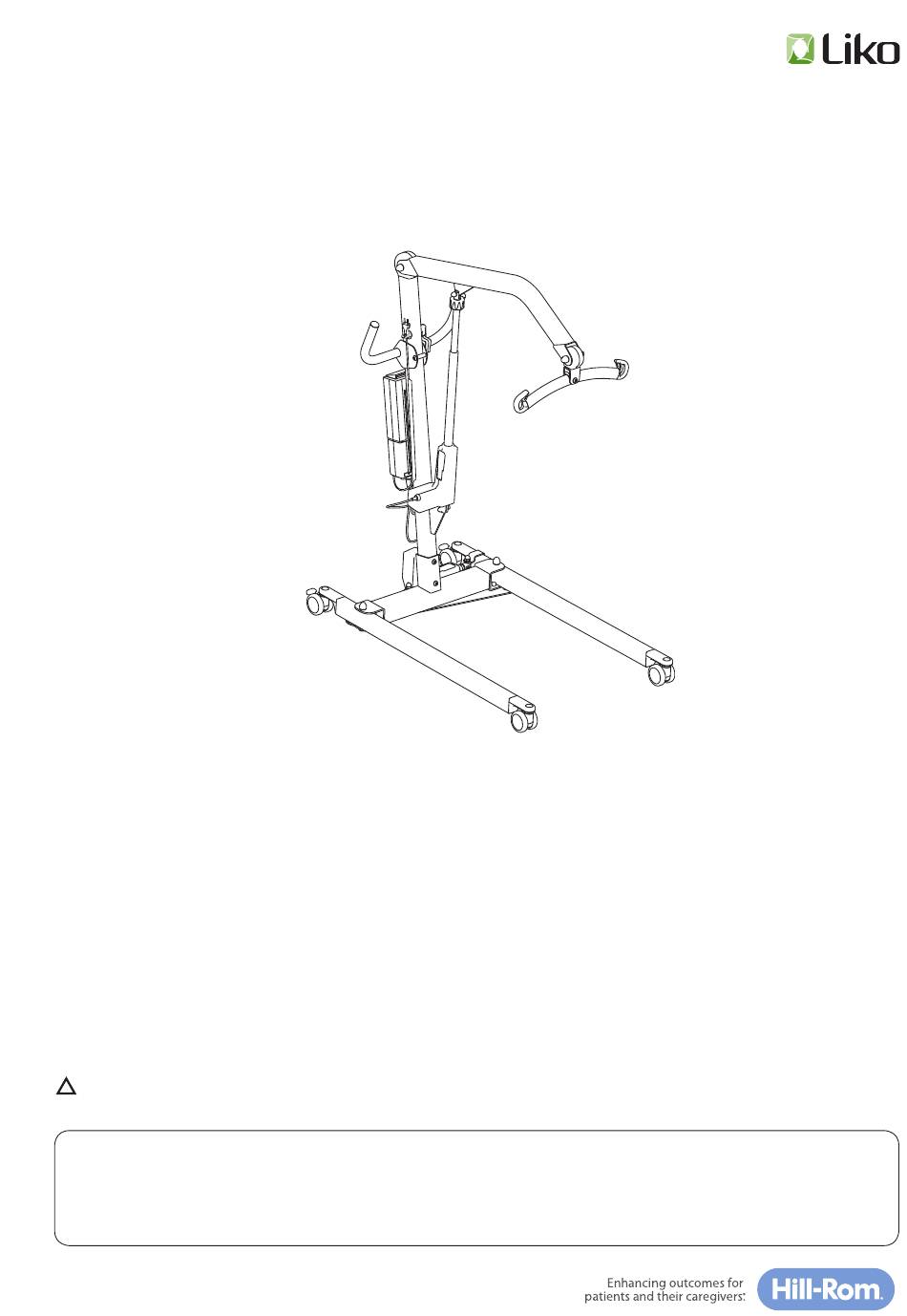

The models differ in the way the base width is adjusted while both lifts feature an electric lift mechanism. Liko M230 mobile lift has an electric base and Liko M220 mobile lift a manual base for opening and closing the legs.
• the sling’s strap loops are correctly connected to the sling bar hooks when the sling straps are stretched up but before the patient is lifted from the underlying surface. Liko M220 and M230 mobile lifts have been tested by an accredited testing institute and fulfill the requirements specified in the Medical Device Directive 93/42/EEC, for Class I products.
Material: Steel active, but no more than 2 min. Weight: Gross: (Liko M220) 40 kg ( 88 lbs) Battery: In series: 2 x 12 V 2.9 Ah valve-regulated lead- (Liko M230) 40 kg ( 88 lbs) acid gel batteries. New batteries provided by the supplier.
1 Allen wrench 3 mm, • control box, charger cable, hand control with cable; 2 Allen wrench 6 mm. • instruction guide and quick reference guide with chain; Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9 www.hill-rom.com I www.liko.com...
Page 6
• lift arm motions correspond with the buttons on the • Rear wheel brakes, functions properly. handcontrol • the adjustment of the base width is functional; Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9 www.hill-rom.com I www.liko.com...
Liko M230 Liko M220 Hand control Manual Adjustment of the Base (Liko M220) The lifting motion is operated with the push buttons on Press the raised pedal to adjust the base width. the hand control. The direction of the arrows applies when the hand control is held as shown in the picture.
Page 8
Chair/Toilet Seat Floor NOTE: Place a pillow under the patient’s head for increased performance and comfort. Always have the wheels locked when lifting from the floor. Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9 www.hill-rom.com I www.liko.com...
"ON" and "CHARGE" on the charger lights up. Old batteries are to be deposited at the nearest recycling station or given to personnel authorized by Hill-Rom. Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9...
For the assembled lift unit, the maximum load is always the lowest maximum load rating for any of the components. For example, a Liko M220/Liko M230 mobile lift which is approved for 182 kg (400 lbs) can be equipped with a lifting accessory which is approved for 200 kg (440 lbs).
Page 11
Quick Reference Guide Liko M220/M230 Prod. No. 2050100EN with chain. Holder for Quick Reference Guide Prod. No. 2000100 Leg Protector Prod. No. 20190029 Battery Charger Prod. No. 2004106 for wallmounting or to use with the Table charger housing Table Charger Housing Prod.
7. Check that the base widht actuator cable is correctly connected to the control box. 8. If the problem persists, please contact Hill-Rom. 1. Make sure that the emergency stop button has not been The charger doesn’t work.
Recycling Instructions Lead battery (Pb) Waste of Electrical and Electronic Equipment (WEEE). Metals Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9 www.hill-rom.com I www.liko.com...
The lift may not be cleaned with CSI or equivalent. The hand control may not be cleaned with Viraguard or equivalent. The control box may not be cleaned with Anioxy Spray or equivalent. Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9 www.hill-rom.com I www.liko.com...
Page 15
Liko™ M220 / Liko M230 mobile lift • 7EN150106 Rev. 9 www.hill-rom.com I www.liko.com...
Service activities are not allowed with the patient in the lift. Service Agreement Hill-Rom offers the opportunity to enter into service contracts for the maintenance and regular inspection of your Liko product. Expected Life Time The product has an expected service life of 10 years when correctly handled, serviced and periodically inspected in accordance with Liko’s instructions.
