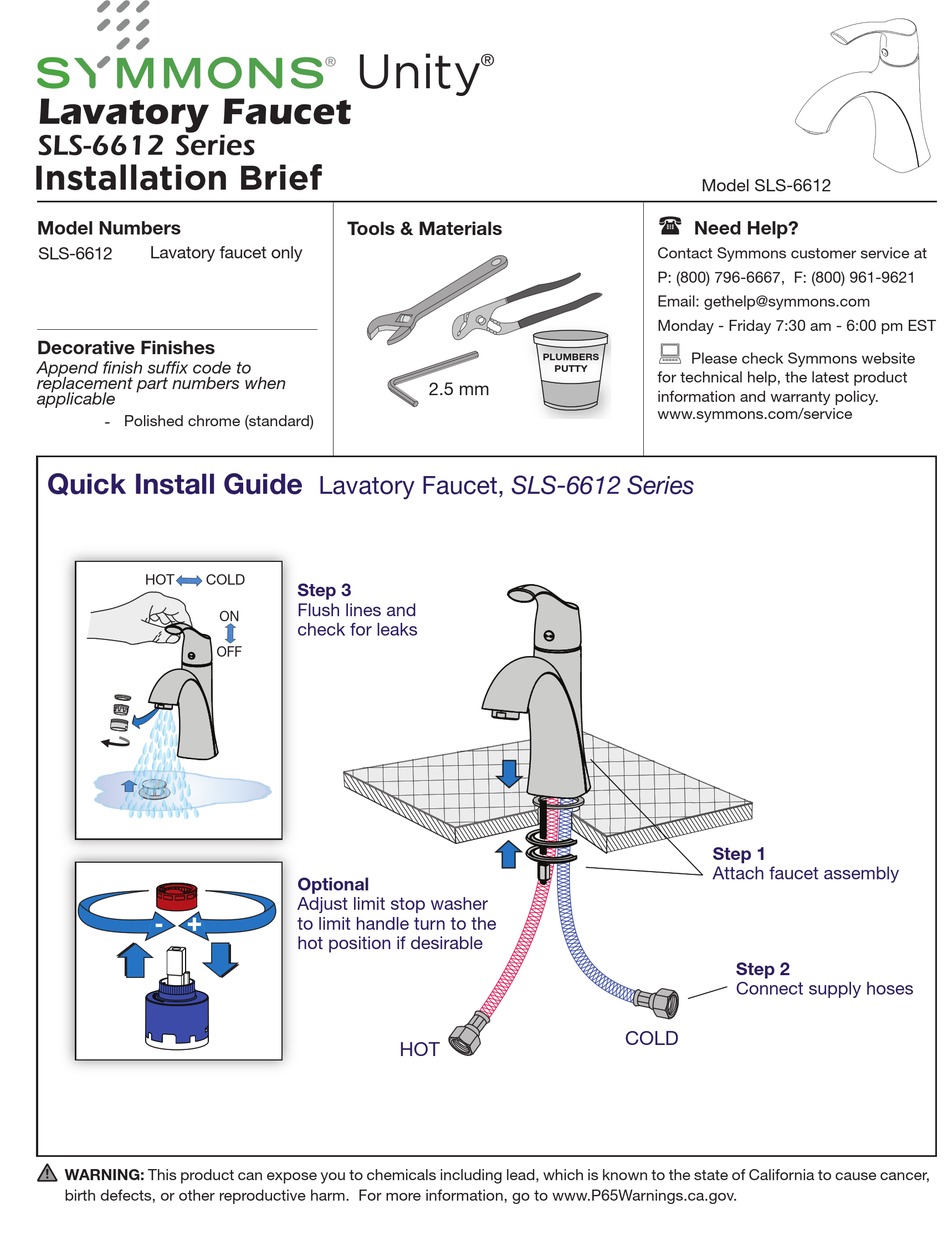

Symmons Unity SLS-6612 Series Installation Brief

Lavatory Faucet
SLS-6612 Series
Installation Brief
Model Numbers
Lavatory faucet only
SLS-6612
Decorative Finishes
Append finish suffix code to
replacement part numbers when
applicable
- Polished chrome (standard)
Quick Install Guide
HOT COLD
-
+
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer,
birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Unity
Tools & Materials
Lavatory Faucet, SLS-6612 Series
Step 3
Flush lines and
ON
check for leaks
OFF
Optional
Adjust limit stop washer
to limit handle turn to the
hot position if desirable
K
J
H
®
G
F
E
D
C
B
A
16
PLUMBERS
PUTTY
2.5 mm
HOT
Model SLS-6612

Need Help?
Contact Symmons customer service at
P: (800) 796-6667, F: (800) 961-9621
Email: gethelp@symmons.com
Monday - Friday 7:30 am - 6:00 pm EST
15 14 13 12

Please check Symmons website
for technical help, the latest product
information and warranty policy.
www.symmons.com/service
Step 1
Attach faucet assembly
Step 2
Connect supply hoses
COLD
11 10 9 8 7
