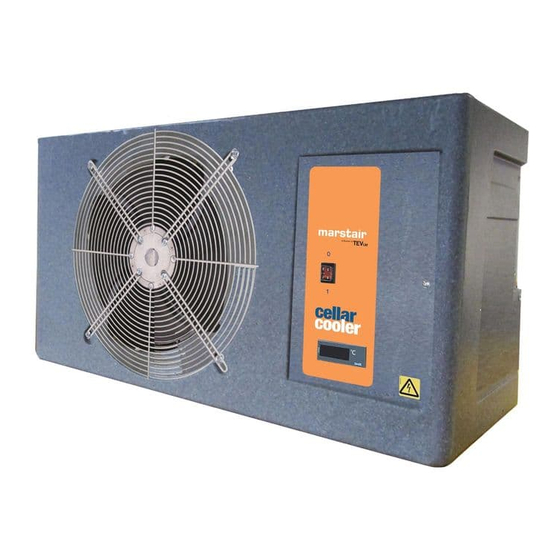

Marstair CXE Series Technical Manual
Hide thumbs Also See for CXE Series:

Advertisement

TECHNICAL MANUAL
CXE SPLIT SYSTEMS
55908039-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CXE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Marstair CXE Series

  • Page 1 TECHNICAL MANUAL CXE SPLIT SYSTEMS 55908039-06...
  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE PART NUMBERS, OPTIONS, UNIT COMBINATIONS, DIMENSIONS & WEIGHTS PERFORMANCE DATA & AIR FLOW SOUND POWER AND SOUND PRESSURE LEVELS ELECTRICAL DATA DIMENSIONS INSTALLATION: CONTENTS & PIPEWORK ELECTRICAL: FUSES & WIRING DIAGRAMS CONTROLLER SETTINGS INSTALLATION: DIMENSIONS PIPEWORK ELECTRICAL 13 -14 R407C REFRIGERANT 15 -17...
  • Page 3 PART NUMBERS Part No. MODEL MODEL Part No. CKC 50 55020722 55020776 CXE30 MASTER 55917026 CKC 80 55020723 55020724 CXE50 MASTER 55917028 CKC 90 55020771 55020778 CXE70 MASTER 55917029 CKC 100 55020779 CXE30 SLAVE 55917056 CKC 130 55020780 CXE 50 SLAVE 55917058 CKC 150...
  • Page 4 DIMENSIONS & WEIGHTS MODEL UNPACKED PACKED HEIGHT WIDTH DEPTH WEIGHT HEIGHT WIDTH DEPTH WEIGHT MODEL UNPACKED PACKED WEIGHT WEIGHT WEIGHT WEIGHT HEIGHT WIDTH DEPTH HEIGHT WIDTH DEPTH 1000 1080 1000 1080 1000 1090 1000 1090 1000 1080 1080 1090 1000 1080 1080 1090...
  • Page 5: Sound Power And Sound Pressure Levels

    AIR FLOWS MODEL m³/s MODEL m³/s CKC 50 0.97 CXE 30 0.61 CKC 80 0.97 CXE 50 0.66 CKC 90 0.97 CXE 70 0.58 CKC 100 0.97 CKC 130 1.85 CKC 150 1.85 CKC 165 1.85 CKC 180 1.85 SOUND POWER AND SOUND PRESSURE LEVELS INDOOR UNIT MAXIMUM SOUND POWER LEVELS...
  • Page 6: Electrical Data

    ELECTRICAL DATA UNIT ELECTRICAL LOADS [230V 50Hz 1Ph (A) or 400V 50Hz 3Ph (A/Ph)] PERFORMANCE DATA MODEL FAN MOTOR HEATER CXE 30 13.0 CXE 50 13.0 CXE 70 13.0 Starting Nominal Starting Nominal Power Power MODEL current current current current (nominal) (nominal) (kW)
  • Page 7: Dimensions

    CXE DIMENSIONS 55908039-06...
  • Page 8 CXE INSTALLTION CONTENTS PARTS DESCRIPTION ACTION Envelope containing operating instructions and Declaration of Pass to the end user. Conformity Drain Stub/Nut/Gasket Fitted by installer. Drain stub adaptor Convert to ¾" drain if required. Mounting brackets plus fixings Use to hang unit. The unit may be mounted on a wall or solid ceiling using brackets supplied.
  • Page 9 3PH FUSE SIZE (Cooling Only Systems) FUSE Note: On 3 ph systems the supply must go to the MCU+ outdoor unit and then to the CXE indoor unit. For fuse sizing with electric heating contact Marstair technical department. WIRING DIAGRAM MASTER (Also shows optional heater)
  • Page 10: Controller Settings

    CONTROLLER SETTINGS TEMPERATURE CONTROL (Do not set the controller below 4°C.) The SET temperature is factory set at 12⁰C. The digital display normally displays the return air temperature. To change the SET temperature, press and hold down the SET button. If no alarms active, the ‘St1’...
  • Page 11: Ckc

    CKC INSTALLATION MOUNTING Whether floor or wall mounted, it is essential that the mounting surface is capable of supporting the unit weight. Leave space around the unit for air circulation and access for installation and maintenance. CKC DIMENSIONS CKC 50-100 ( Dimensions in mm.) Weight (kg) MODEL...
  • Page 12 CKC 130 – 180 ( Dimensions in mm.) MODEL Weight (kg) CKC 130 1000 1020 CKC 150 1000 1020 CKC 165 1000 1020 CKC 180 1100 1215 55908039-06...
  • Page 13: Pipework

    CKC PIPEWORK Individual pipe runs to a maximum of 20m, including 7.5m lift, are permissible with liquid lines, 80m with expansion lines, provided good refrigeration practice is followed. Performance is based on 7.5m pipe runs. Correctly sized pipes for each installation will result in no significant loss of capacity on extended pipe runs.
  • Page 14 USING SUCTION AND EXPANSION LINES The expansion assembly must be removed from the indoor unit and connected to the outdoor unit allowing a pipe run of up to 80m, including a maximum lift of 20m. Fully insulate both the suction and expansion lines, including the expansion device: ensure the pipes are insulated well over the drain tray at the indoor unit.
  • Page 15 PIPE CONNECTIONS Units are supplied with the following male flare connections (sizes in inches): Model Size 50 80 90 100 130 150 165 180 Expansion 3/8 1/2 1/2 1/2 1/2 1/2 1/2 1/2 Suction 1/2 5/8 5/8 3/4 3/4 3/4 3/4 7/8* CONNECTING THE UNITS Ensure both service valves on the unit are closed (clockwise) before commencing installation.
  • Page 16: Electrical

    CKC ELECTRICAL • The installer supplies mains, control and interconnecting cables: equipment must be earthed. • Wiring must be carried out in accordance with local and national codes. • Mains supply cables must be size compatible with the recommended fuse. •...
  • Page 17 INTERCONNECTING WIRING REFRIGERANT 55908039-06...
  • Page 18: R407C Refrigerant

    R407C REFRIGERANT Charging the System: Evacuate the system and interconnecting pipework ensuring the service valves are fully open. Allow the evacuated system to draw in the majority of the refrigerant charge. The final charge should be adjusted with the system running. All units are fitted with head pressure control.
  • Page 19: End Of Life Requirements

    END OF LIFE REQUIREMENTS Refrigerant must be recovered by a certificated technician before the plant is dismantled. Modern refrigerant recovery machines should be able to remove well over 95% of the refrigerant in an old system. All recovered HFC refrigerants can either be: a) Sent for destruction by incineration at a licenced waste facility b) Sent to a specialist plant that can re-process the old refrigerant into a gas with properties identical to virgin refrigerant, to create “reclaimed refrigerant”...
  • Page 20 CXE INDOOR UNIT COMPONENT IDENTIFICATION Grille De-ice stat (option) Fan / motor Heater assembly (option) Case Drain stub adaptor Wall / ceiling mounting brackets Drain tray Heater bracket Side access panel Coil assembly Electrics box door Thermostat bulb & bracket Digital display (option) Restrictor assembly / extended pipe (option) 55908039-06...
  • Page 21 HEAD PRESSURE CONTROL pcb MOUNTING FOOT 3 MINUTE TIMER pcb LP SWITCH COMPRESSOR CAPACITOR COMPRESSOR ELECTRICS BOX TEV LTD, ARMYTAGE ROAD, BRIGHOUSE, WEST YORKSHIRE, HD6 1QF. TEL: + 44 (0) 1484 405600 FAX: +44 (0) 1484 405620 EMAIL: sales@marstair.com WEB: www.marstair.com 55908039-06...
