Consort WMH3SL Installation & Control Manual

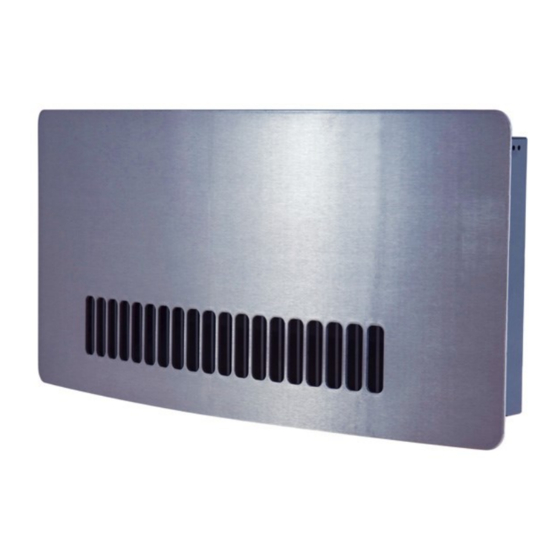

Chelsea wall mounted fan heater for sl wireless control

Download this manual

UALITY

PACE

EATERS

Installation & Control Guide for

Chelsea Wall Mounted Fan Heater for SL Wireless Control-

Model

WMH3SL

All electrical appliances produced for the Company are guaranteed for one year against

faulty material or workmanship.

This applies only if the appliance has been used for

purposes in accordance with the instructions provided and has not been connected to an

unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired

by any person not authorised by us. This guarantee is offered to you as an extra benefit and

does not affect your legal rights.

The correct electricity supply voltage is shown on the rating label attached to the

appliance.

Reasonable care has been taken to ensure that this guide is accurate at the time of

printing. In the interest of progress the Company reserve the right to vary specifications from

time to time without notice.

58000388 Iss 02

Need help?

Do you have a question about the WMH3SL and is the answer not in the manual?

Page 1 Installation & Control Guide for Chelsea Wall Mounted Fan Heater for SL Wireless Control- Model WMH3SL All electrical appliances produced for the Company are guaranteed for one year against faulty material or workmanship. This applies only if the appliance has been used for...
Page 2 Overview  Ensure that the appliance is functioning correctly. If the TOC control operates Please read this guide carefully and retain again, the appliance should be checked for future use and maintenance. by a competent electrician. The heater carries a ‘Do Not Cover’ label to warn This appliance has been designed and the user that if the appliance is covered, there is a risk of overheating.
Page 3 Wall Mounting Remove the front cover (2 screws on the side and 2 screws on the bottom). Mark top 2 screw fixing positions ‘A’ in accordance with the dimension shown on the diagram. The unit must be screwed to the wall with 3 screws through the holes provided in the case. Drill 2 holes in the wall to suit No 10 wood screws (round head) and insert wall plugs.
Page 4 USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com...
