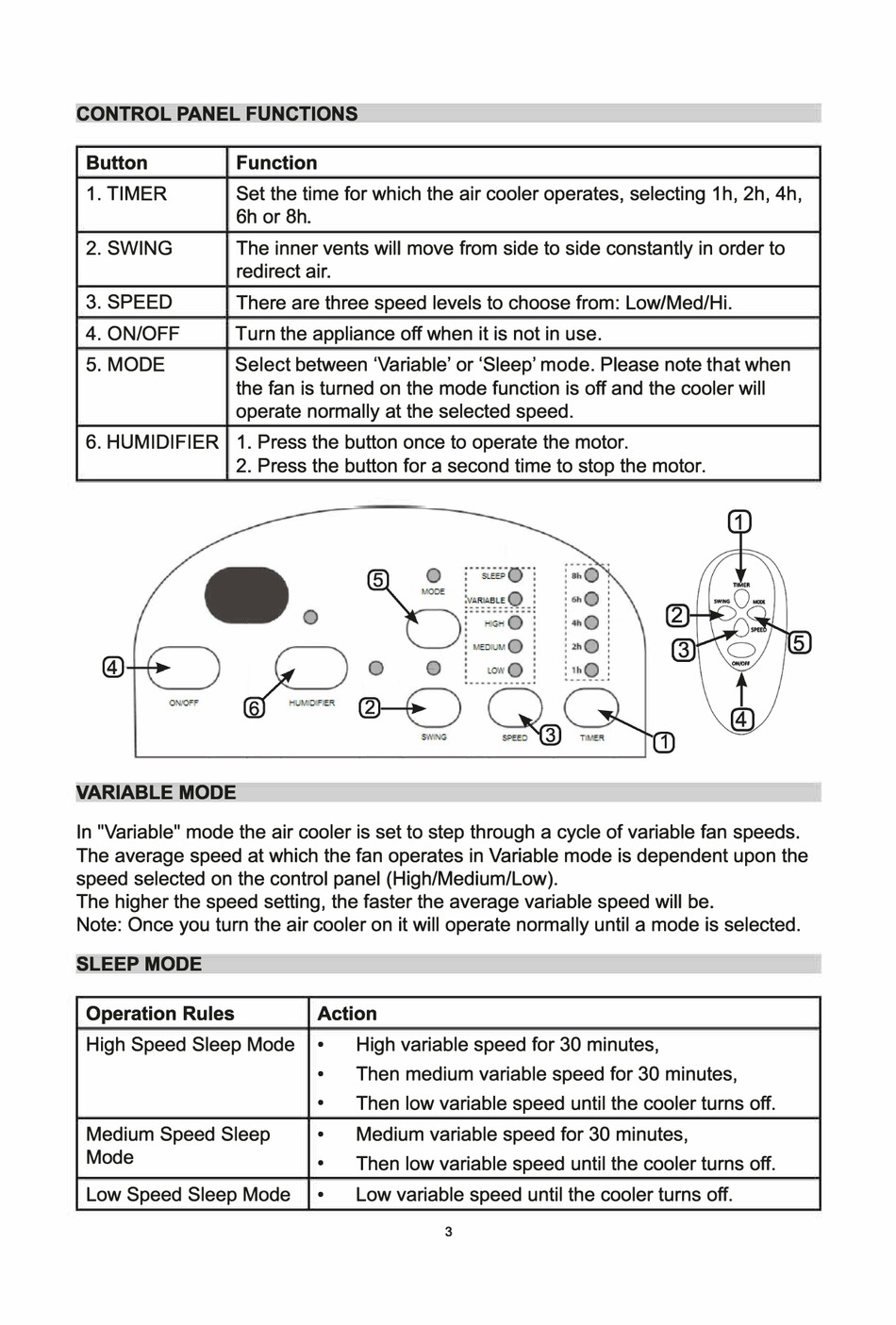

CONTROL PANEL FUNCTIONS

Button Function
1. TIMER Set the time for which the air cooler operates, selecting 1 h, 2h, 4h,
6h or Bh.
2. SWING The inner vents will move from side to side constantly in order to
redirect air.
3. SPEED There are three speed levels to choose from: Low/Med/Hi.
4. ON/OFF Turn the appliance off when it is not in use.
5. MODE Select between 'Variable' or 'Sleep' mode. Please note that when
the fan is turned on the mode function is off and the cooler will
operate normally at the selected speed.
6. HUMIDIFIER 1. Press the button once to operate the motor.
2. Press the button for a second time to stop the motor.
@

VARIABLE MODE

In "Variable" mode the air cooler is set to step through a cycle of variable fan speeds.
The average speed at which the fan operates in Variable mode is dependent upon the
speed selected on the control panel (High/Medium/Low).
The higher the speed setting, the faster the average variable speed will be.
Note: Once you turn the air cooler on it will operate normally until a mode is selected.

SLEEP MODE

Operation Rules
High Speed Sleep Mode
Medium Speed Sleep
Mode
Low Speed Sleep Mode
.
Action
.
High variable speed for 30 minutes,
.
Then medium variable speed for 30 minutes,
.
Then low variable speed until the cooler turns off .
.
Medium variable speed for 30 minutes,
.
Then low variable speed until the cooler turns off .
Low variable speed until the cooler turns off.
3
