ASSEMBLY

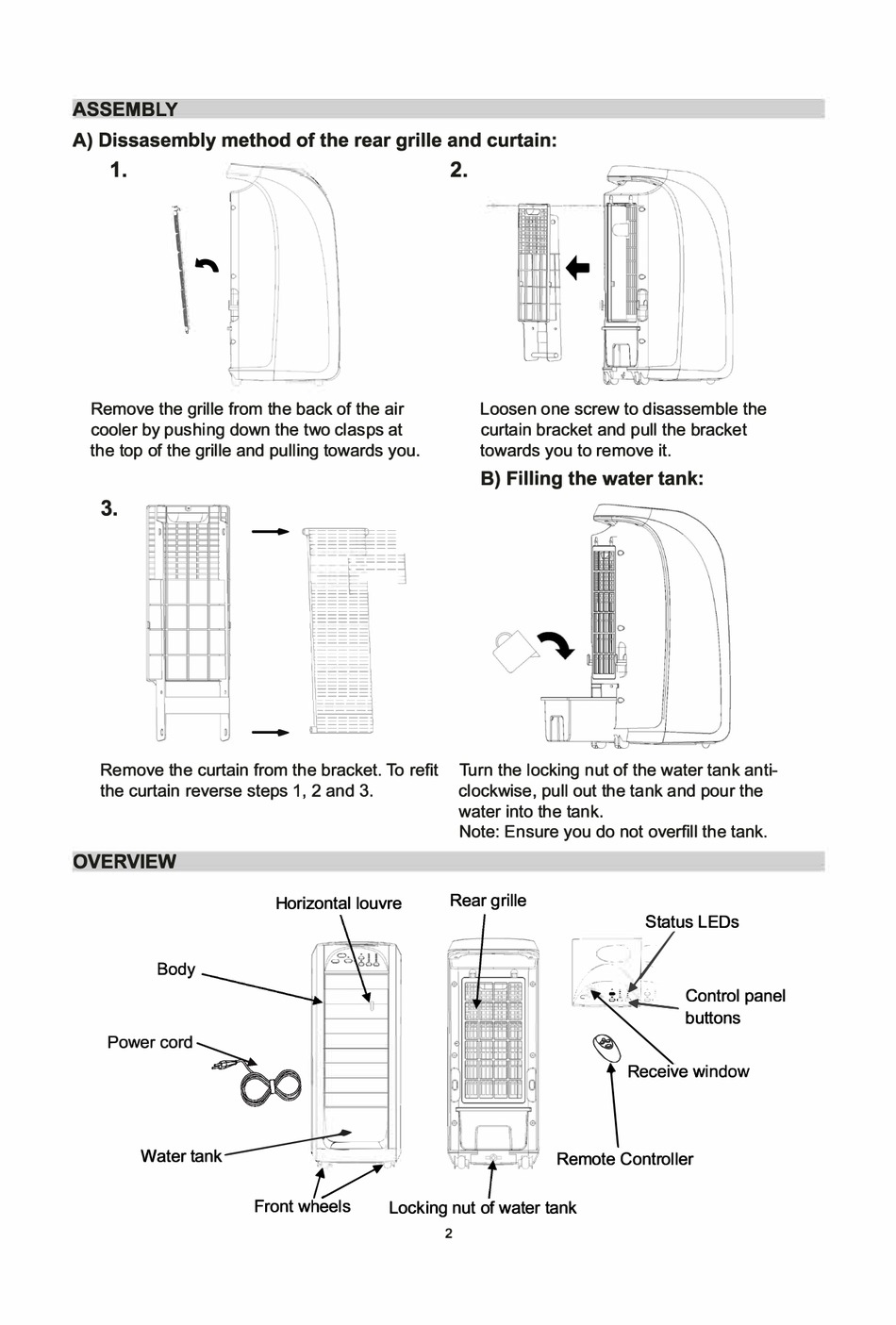

A) Dissasembly method of the rear grille and curtain:
1.
..
\
\
Remove the grille from the back of the air
cooler by pushing down the two clasps at
the top of the grille and pulling towards you.
3.
Remove the curtain from the bracket. To refit
the curtain reverse steps 1, 2 and 3.

OVERVIEW

e-,oom�
Water tank�"=.___,·
-
�\ � � � ���
_i
Horizontal louvre
J
L
t/ '
Front wheels
Locking nut of water tank
2.
..
Loosen one screw to disassemble the
curtain bracket and pull the bracket
towards you to remove it.
B) Filling the water tank:
Turn the locking nut of the water tank anti-
clockwise, pull out the tank and pour the
water into the tank.
Note: Ensure you do not overfill the tank.
Rear grille
l�)o_ :
�
\ •="'"""'=
Remote Controller
2
Status LEDs
L
buttons
�otml paool
