Summary of Contents for Pro-Elec PELL0374

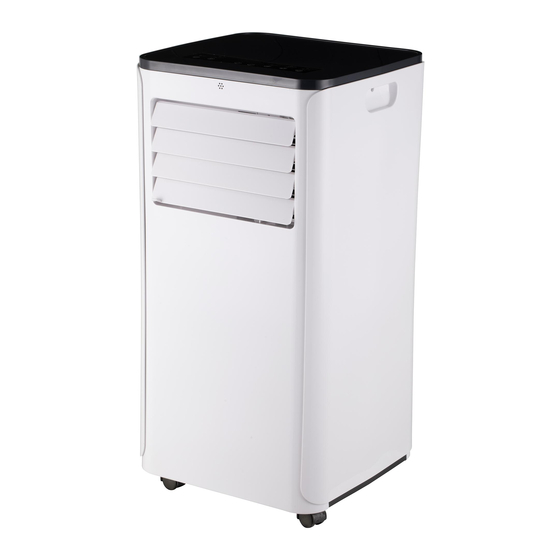

- Page 1 LOCAL AIR CONDITIONER Model: PELL0374...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • Do not use any means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). -
Page 3: Transportation And Storage
• Do not install and use the appliance in a bathroom or other humid environments. • Do not pull out the mains plug to turn off the appliance. • Do not place cups or other objects on the appliance to prevent water or other liquids from spilling into the air conditioning. -
Page 4: Product Overview
PRODUCT OVERVIEW Front 1 Top Panel 2 Control Panel 3 Side Panel 4 Air Outlet Louvres 5 Front Panel 6 Castor 7 Base Back Rear Housing EVA Filter 10 Continuous Drainage Outlet 11 Air Vent 12 Wrapping Post 13 CON Filter 14 Manual Drainage Outlet Accessories 15 Remote Control... -
Page 5: Positioning & Installation
POSITIONING & INSTALLATION Positioning Warning: before using the local air conditioning, keep it upright for at least two hours. • The air conditioner must stand upright on an even surface. • Do not position near a bath, sink or other permanently damp or wet areas. •... -
Page 6: Installation Errors
INSTALLATION ERRORS To operate efficiently the air must be able to flow freely into the exhaust hose. To assist this: • Avoid any sharp bends or kinks in the exhaust hose. • Keep it as level as possible. • Keep its length as short as possible. The maximum extension length of the exhaust pipe is 1.5m. -
Page 7: Remote Control
REMOTE CONTROL 1. POWER 2. TIMER 3. DOWN 4. MODE 5. UP 6. FAN 7. SLEEP OPERATION MODES Cooling Mode • After the air conditioner turns on, the default setting is cooling mode with a temperature of 22°C and low fan speed. •... -
Page 8: Water Drainage
Compressor Protection After powering on, or a restart, there is a three minute delay before the compressor starts to operate. This helps to prolong the life of the compressor. There is an automatic frost protection mode which once the temperature of the exhaust has risen to a safe level normal operation will resume. -
Page 9: Maintenance
MAINTENANCE Important: In order to avoid an electric shock, power-off the air conditioner and disconnect the mains plug before performing any maintenance or repair activities. Cleaning • Unplug from the mains supply before cleaning. • Do not splash water into the air conditioner. •... -
Page 10: Further Safety Information
FURTHER SAFETY INFORMATION Information on servicing • Checks to the work area prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. - Page 11 The following checks shall be applied to installations using flammable refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed. The ventilation machinery and outlets are operating adequately and are not obstructed.
- Page 12 Repair to intrinsically safe components • Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. • Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
- Page 13 to be repeated several times. Compressed air or oxygen shall not be used for this task. • Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
- Page 14 Do not exceed the maximum working pressure of the cylinder, even temporarily. When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. 10.
-
Page 15: Troubleshooting
TROUBLESHOOTING Trouble Cause Solution • Power is off • Switch the power on • Water-full indicator is on • Drain internal water tank • The ambient temperature is too • Recommend to use the low or too high machine in at the temperature range of 7-35 C (44-95 •... -
Page 16: Technical Specification
TECHNICAL SPECIFICATION Main voltage 220-240V ~ 50Hz Rated input power 1120W Power standby mode 1.0W Cooling capacity 2.93kW (10,000BTU/h) Air flow 350m³/h Sound power level 65dB (A) Refrigerant/charge R290/200g Global warming potential 0.66kgCO Energy efficiency ratio (EER) Energy efficiency class Fan speeds Thermostat 16 - 31°C...
