INTRODUCTION
This easy to use kit provides a platform with good circuit board layout and grounding to evaluate Power
Amplifier PA164. With additional prototype area, it is flexible enough to analyze a multitude of standard or
proprietary circuit configurations. All components are provided with the kit. The evaluation kit consists of a
PA164, which is mounted on a daughter board along with input protection diodes, power supply bypass
capacitors, and compensation capacitors.
The Evaluation kit also consists of few passive components and connectors that should be soldered on
the board. These components are not presoldered so as to provide flexibility to the user for changing ampli-
fier configuration as per the users application.
TP1-1
RIN1
P1
-IN
2K
RT1
51
TP2-1
RIN2
P2
2K
+IN
RT2
51
TP15-1
P15
VTMP
TP14-1
N/C
P14
PDWN
N/C
TP13-1
P13
OCFLG
N/C
TP16-1
P16
+5V
TP17-1
P17
GND
HEATSINK_HS36_ECO_REG
www.apexanalog.com
Evaluation Kit

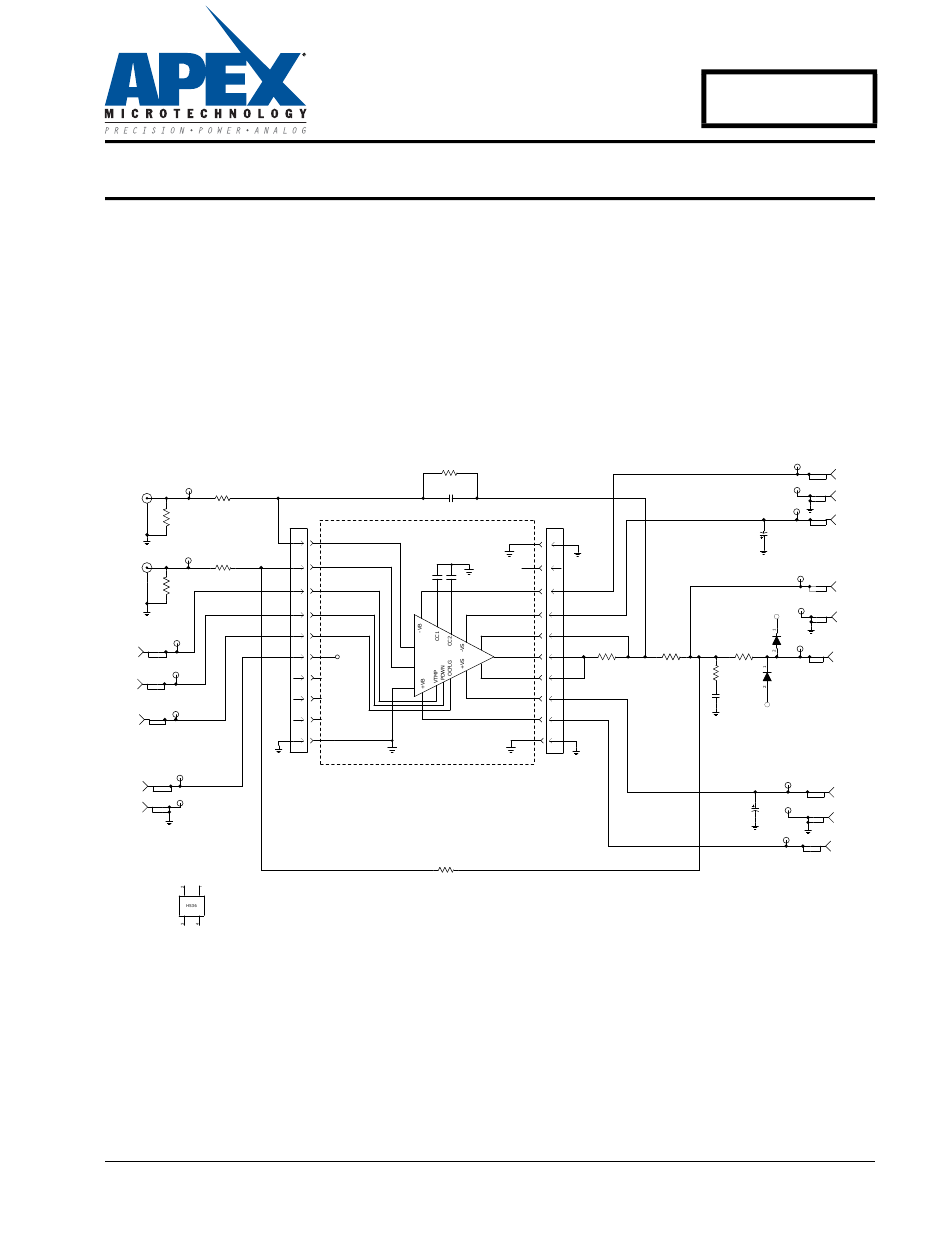

Figure 1: EK24 Circuit Configuration Diagram
RFB1
49.9 K
CFB1
11
11
12
12
13
13
14
14
15
15
-IN
16
ILIM-
16
PA164
+5V
ILIM+
+IN
17
17
GND
18
18
19
19
20
20
EVAL77 BOARD
J1B
RFB2
© Apex Microtechnology Inc.
All rights reserved
10
10
9
9
N/C
N/C
8
8
7
7
6
6
RLIM
RS
OUT
5
5
1 Ohm
4
4
3
3
2
2
1
1
J1A
EK24
TP3-1
P3
-VB
TP4-1
P4
GND
TP5-1
P5
-VS
C1
470uF
TP11-1
P11
OUT_1
TP10-1
+VS
P10
GND
D2
400V
TP12-1
RISO
P12
OUT_2
RN
D1
400V
CN
-VS
TP6-1
P6
+VS
TP7-1
C2
P7
470uF
GND
TP8-1
P8
+VB
Nov 2018
EK24U Rev A
