INTRODUCTION
This easy to use kit provides a platform with good circuit board layout and grounding to evaluate Power
Amplifiers PA07, PA08, PA09, PA85, PA88, and PA96. With additional prototype area, it is flexible enough to
analyze a multitude of standard or proprietary circuit configurations. All components are provided with the
kit. Similar circuitry is used for evaluation and the circuit for a particular package can be changed using jump‐
ers. External connections to the evaluation kit can be made through the connectors at the edges of the cir‐
cuit. The circuit provides an input line termination of 50 Ω.
The PA07 and PA09 are configured for a gain of 12. The PA08 and PA96 are configured for a gain of 21.
The PA85 and PA88 are configured for a gain of 53. This evaluation kit provides flexibility for modifying the
gain, in inverting or non‐inverting mode.
Composite
www.apexanalog.com
Evaluation Kit

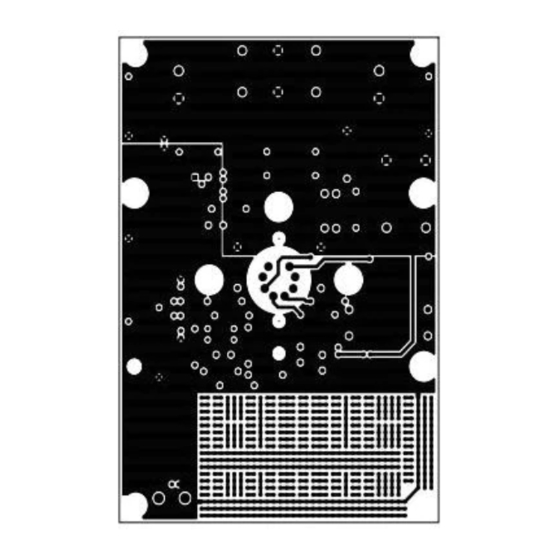

Figure 1: PCB Layout
© Apex Microtechnology Inc.
All rights reserved
EK30
Component Side
EK30U Rev C
Jan 2016

Advertisement

loading

Related Manuals for Apex Digital EK30

Summary of Contents for Apex Digital EK30

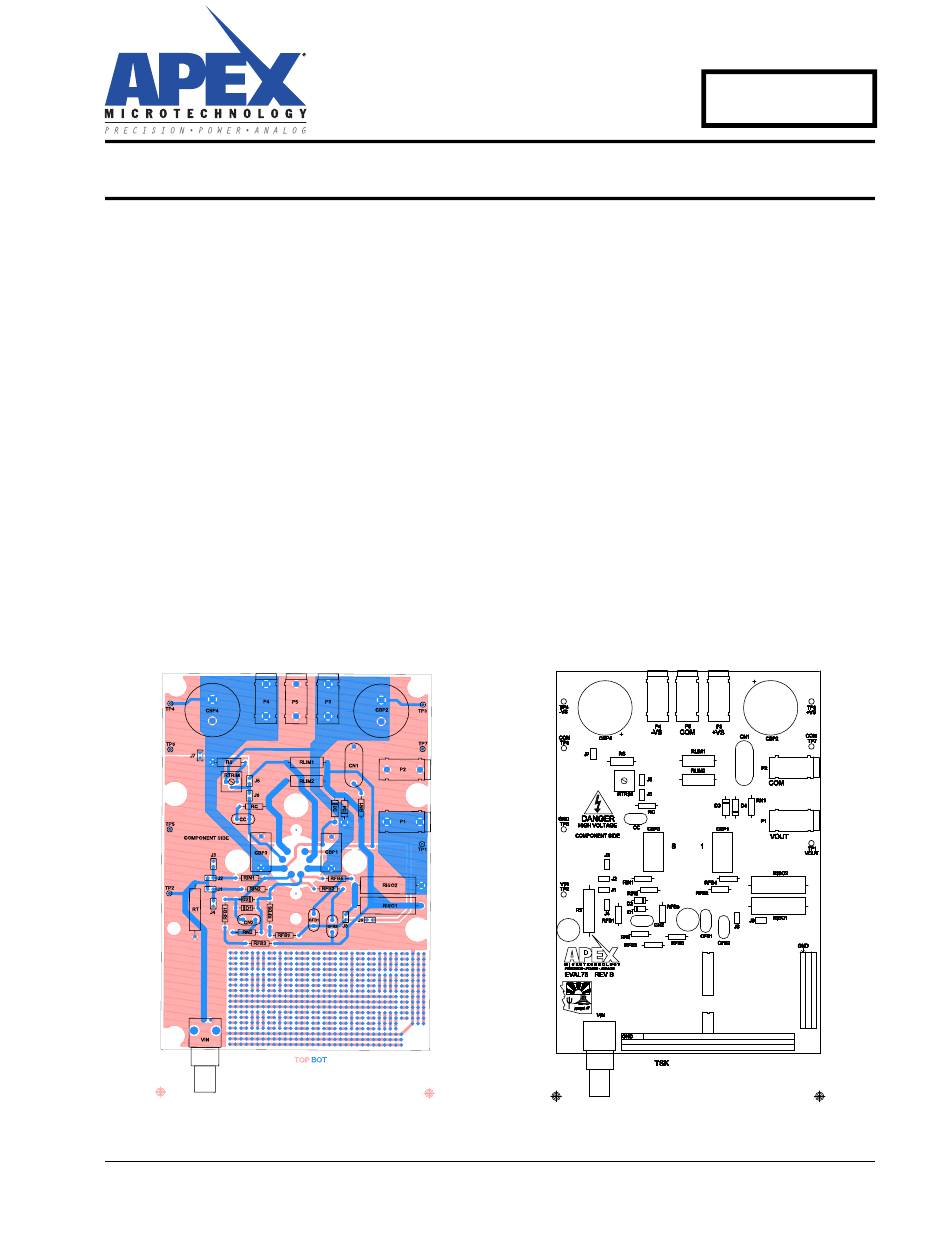

  • Page 1 EK30 Evaluation Kit APPLICABLE PARTS (SOLD SEPARATELY) • PA07 • PA08 • PA85 • PA88 • PA96 INTRODUCTION This easy to use kit provides a platform with good circuit board layout and grounding to evaluate Power Amplifiers PA07, PA08, PA09, PA85, PA88, and PA96. With additional prototype area, it is flexible enough to analyze a multitude of standard or proprietary circuit configurations.
  • Page 2 EK30 Top Metal Layer Bottom Metal Layer Figure 2: Complete PCB Schematic Diagram EK30U Rev C...

  • Page 3: Parts List

    EK30 PARTS LIST Reference Manufacturer Part # Description Resistors PR03000205109JAC00 51 Ω, 3W, 5% RIN, RIN2 RN60D1801FB14 1.8 kΩ, 1/4W, 1% RFB1‐A, RFB3‐A CMF5510K000FKEA 10 kΩ, 1/4W, 1% RFB1‐B, RFB3‐B RN60D1802FB14 18 kΩ, 1/4W, 1% RFB1‐C, RFB3‐C RN60D4702FB14 47 kΩ, 1/4W, 1% RLIM1‐A, RLIM2‐A...
  • Page 4 EK30 Reference Manufacturer Part # Description 91735A151 Screw, Panhead, #6 X 0.75” 91841A007 Nut, Hex, #6 X 5/16” 91735A146 Screw, Panhead, #6 X 0.375” Miscellaneous TFT20018NA005‐6" Tubing, Teflon, #18AWG, 6 Inches SPC02SVJN‐RC Jumper, Slip On PRPC002SADN‐RC Header, Connector 5001 Test Point, PC Mini Table 1 identifies the components that should be installed in the schematic for a particular Power Ampli‐...

  • Page 5: Before You Get Started

    EK30 BEFORE YOU GET STARTED • All Apex Microtechnology amplifiers should be handled using proper ESD precautions. • Always use the heat sink and thermal washers included in this kit. • Always use adequate power supply bypassing. • Do not change the connections while the circuit is powered.
  • Page 6 EK30 13. Ten thermal washers (TW03) are provided with the kit. The thermal washer is used between the part and the heat sink. A new washer must be used for each mounting. Mount the Power amplifier to the socket using the thermal washer provided with the kit and secure with the #6 screws.
  • Page 7 EK30 Figure 4: PA85, PA88, PA96 Circuit Configuration Diagram FOR PARTS PA85, PA88, AND PA96: (REFER TO TABLE 1 FOR SPECIFIC COMPONENT VALUES) (Refer to Figure 4) 1. Install the compensation capacitor CC. 2. Install the feedback resistors, RFB1 and RFB3.
  • Page 8 EK30 Figure 5: PA08, PA88 Assembly Diagram 1. 4 X #8 X 0.375" SCREW 2. 4 X #6 HEX NUT 3. 2 X EVAL 75 PCB 4. 2 X #6 HEX NUT 5. 1 X MS03 SOCKET 6. 1 X HS02 HEATSINK 7.
  • Page 9 EK30 Figure 6: PA07, PA09, PA85, PA96 Assembly Diagram 1. 4 X #8 X 0.375" Screw 2. 1 X EVAL 75 PCB 3. 2 X #6 Hex NUT 4. 1 X MS03 SOCKET 5. 4 X #8 X 0.375" HEX SPACER 6.
  • Page 10 EK30 NEED TECHNICAL HELP? CONTACT APEX SUPPORT! For all Apex Microtechnology product questions and inquiries, call toll free 800-546-2739 in North America. For inquiries via email, please contact apex.support@apexanalog.com. International customers can also request support by contacting their local Apex Microtechnology Sales Representative. To find the one nearest to you, go to www.apexanalog.com...
