PA90
•
PA91
•
PA98
INTRODUCTION
This easy-to-use kit provides a platform for the evaluation of linear power amplifiers circuits using the
PA91 pin-out. With ample breadboarding areas it is flexible enough to analyze a multitude of standard or pro-
prietary circuit configurations. Critical connections for power supply bypassing, compensation and current
limiting are pre-wired. Components not usually readily available in engineering labs are provided. External
connection to the evaluation kit can be made via the terminals at the edge of the circuit board. These termi-
nal pads are suitable for standard banana jacks or direct soldering of wires. The schematic is shown in Figure
2.
www.apexanalog.com
Evaluation Kit

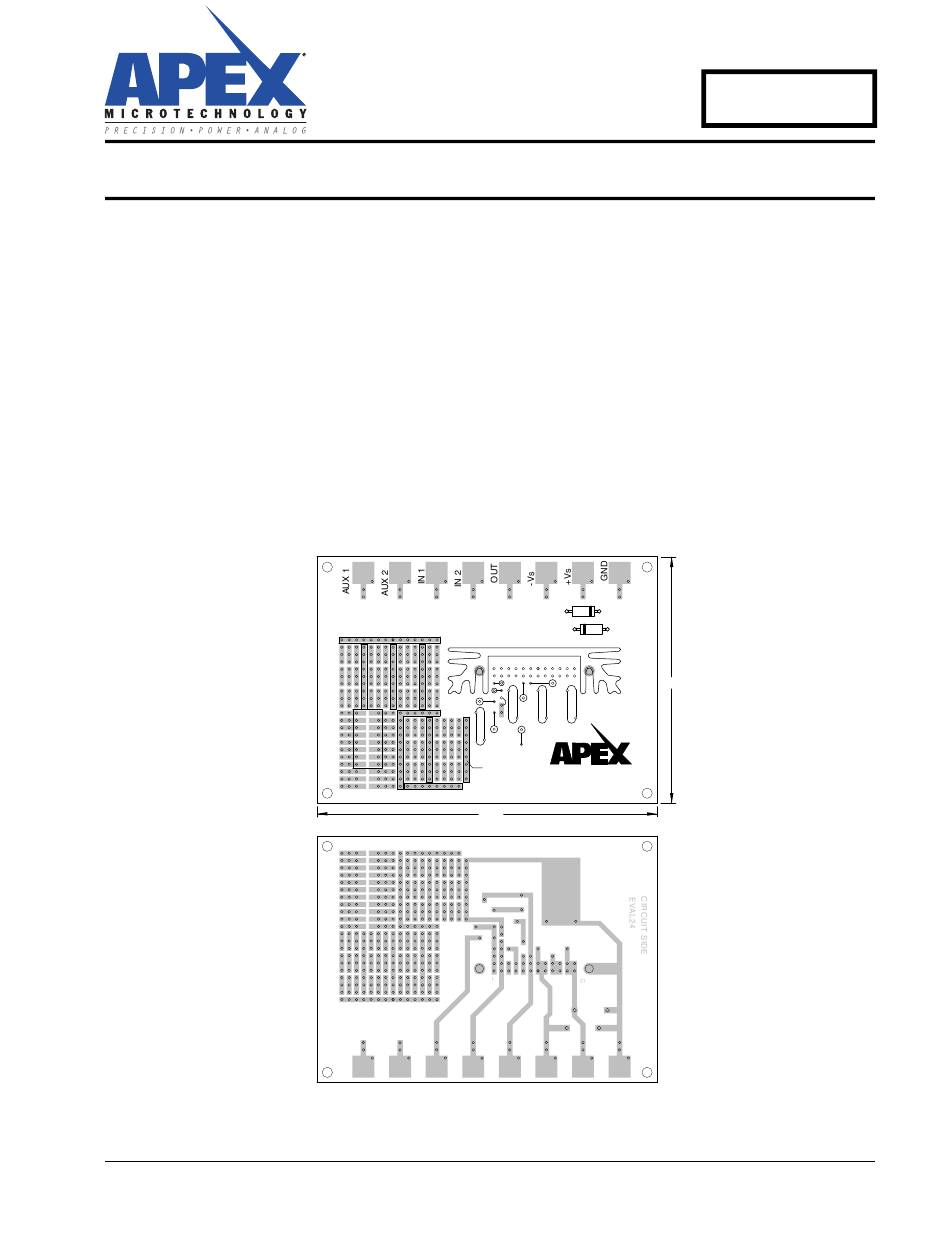

Figure 1: PCB
TOP SIDE
DANGER
HIGH VOLTAGE
HS27
1
1
D2
R3
GND
IC
R2
C4
GND
EVAL24 R
COMPONENT & DUT SIDE
4.65
BOTTOM SIDE
Note: Not shown to size
© Apex Microtechnology Inc.
All rights reserved
D3
D4
12
D1
3.37
R
LIM
Rc
J1
Cc
C1
C2
R1
MICROTECHNOLOGY
EK11
Jan 2016
EK11U Rev G
