APPLICABLE PARTS (SOLD SEPARATELY)
• PA94
• PA95
INTRODUCTION
This easy-to-use kit provides a platform for the evaluation of linear power amplifiers circuits using the
PA94/PA95 pin-out. With ample breadboarding areas it is flexible enough to analyze a multitude of standard
or proprietary circuit configurations. Critical connections for power supply bypassing, compensation and cur-
rent limiting are pre-wired. Components not usually readily available in engineering labs are provided. Exter-
nal connection to the evaluation kit can be made via the terminals at the edge of the circuit board. These
terminal pads are suitable for standard banana jacks or direct soldering of wires. The schematic is shown in
Figure 1.

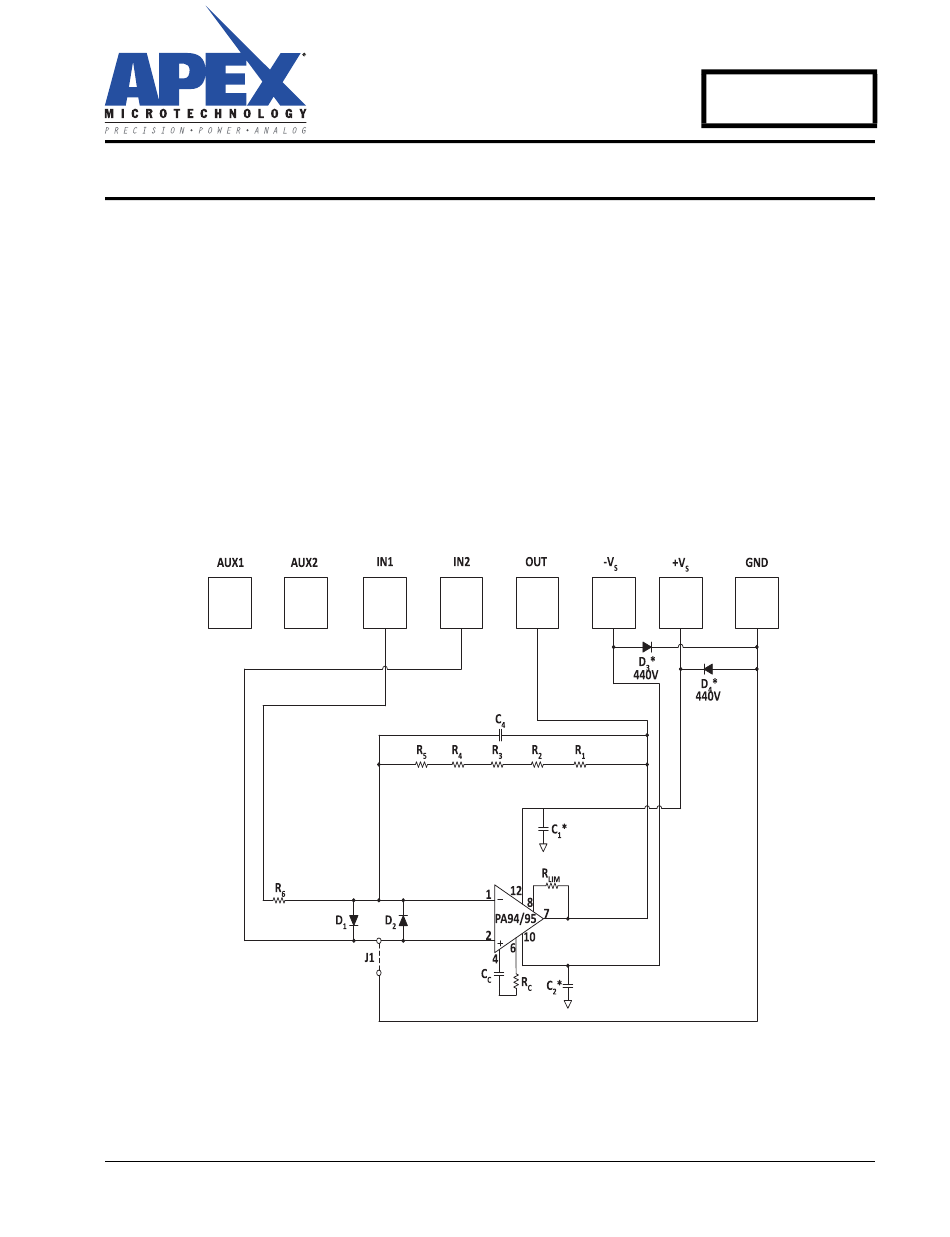

Figure 1 shows the schematic of the evaluation kit's pre-wired connections. Components supplied with
the kit are marked with an asterisk (*). See the amplifiers data sheet for full application information.
www.apexanalog.com
Evaluation Kit
Figure 1: Schematic
