HANDLING INFORMATION

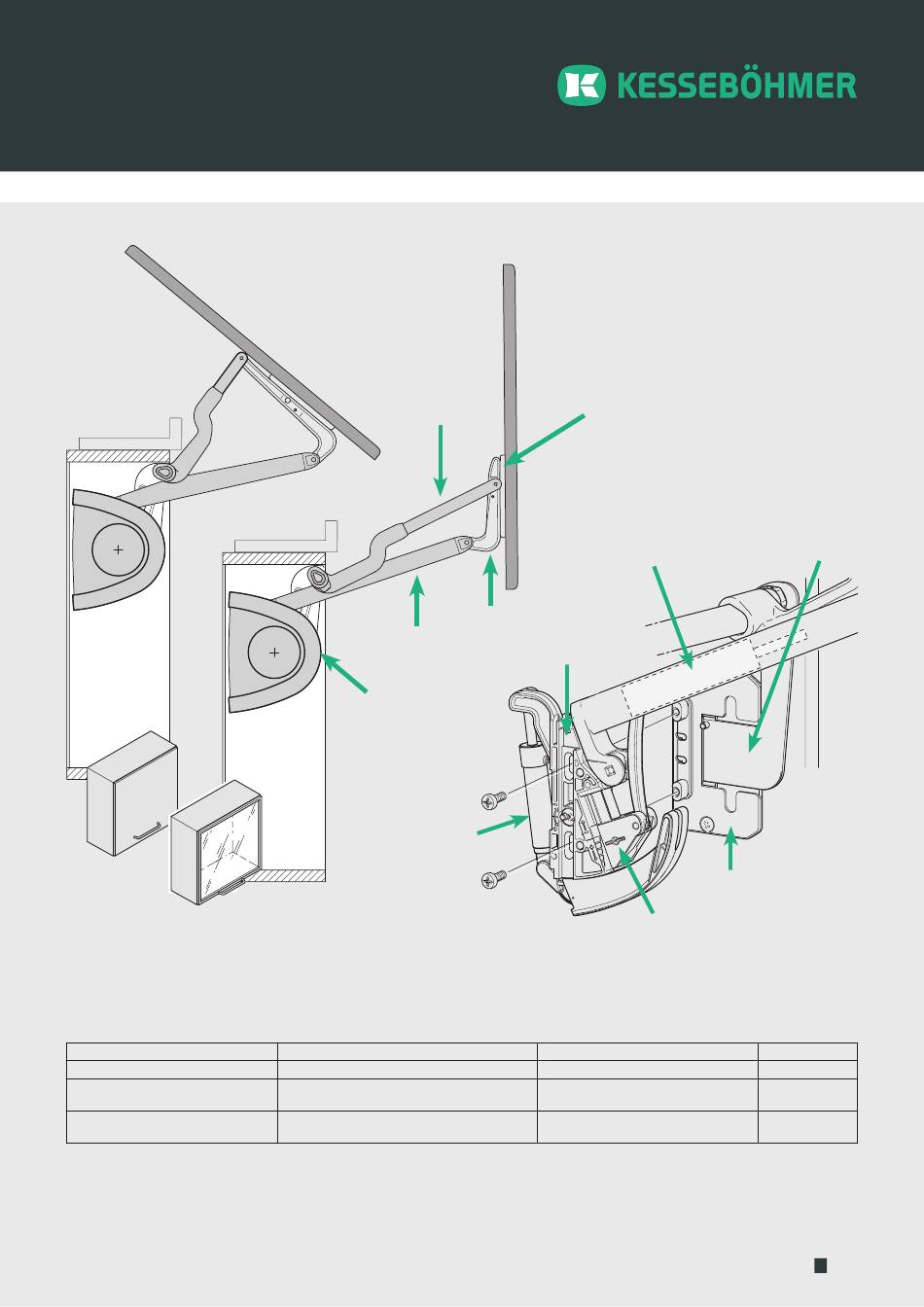

Verso + Strato Wall Unit
Problem
2. Unit panel opens too quickly and
springs upwards.
Traction
lever
Operating
Lifting
arm
Housing
cover
Cushion
Possible cause
Adapter plate setting not appropriate for traction
lever.
Front panel
attachment
Hydraulic cylinder
(internal)
element
Base body
Adjustment slide
for adjusting force
Possible solution (summary)
Increase/adjust spring force.
Reduce spring force.
Adjusting screws need to be adjusted.
04.06.2010
Adapter plate
with adjusting
screw
Base plate
Detailed advice
1.1
2.1
3.1
KESSEBÖHMER
l
1
l
2
l
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kesseböhmer Verso Wall Unit
Summary of Contents for Kesseböhmer Verso Wall Unit
- Page 1 HANDLING INFORMATION Verso + Strato Wall Unit 04.06.2010 Front panel Traction attachment lever Adapter plate with adjusting Hydraulic cylinder screw (internal) Operating Lifting element Base body Housing cover Cushion Base plate Adjustment slide for adjusting force Problem Possible cause Possible solution (summary) Detailed advice 1.
- Page 2 HANDLING INFORMATION Verso + Strato Wall Unit 1. Unit panel does not stay in position 1.1 Spring force too low Strato Verso Adjustment slide moves down. Remove the housing cover. Using a hexagon key (4 mm), increase the force by turning the key anticlockwise (the adjustment slide Do not use a cordless moves down).
- Page 3 HANDLING INFORMATION Verso + Strato Wall Unit 3. Unit door is not aligned when closed 3.1 The adjusting screw of the adapter plate has not been set correctly Once the furniture has been installed (or adjustment work has been performed on the front panels), the front panels may not close cleanly.
