CLEANING INSTRUCTION
opticalCON HYBRID MED

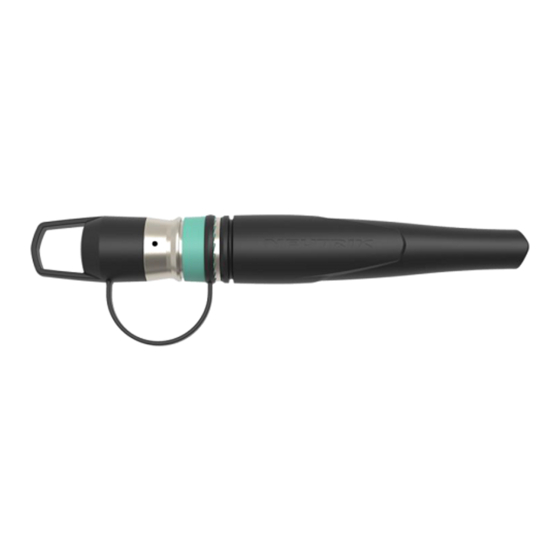

Cable & Chassis Connector
CAUTION:
Laser radiation, do not look directly into beam of light!
Tools: Dust remover (Air in a can)
Dry Cleaner PRIZM* MTP* P/N: 1689

Cable Connector Cleaning

A
B
E
BDA 598 V1
®
C
D
Disconnect both cable ends for safety reasons.
Do not stare into beams or view directly with
optical instruments.
Remove the protection cap.
A
Small contamination:
B Use the dust remover to apply air to the lenses.
Heavy contamination:
C
Open the protective cap of the dry cleaner and
insert the tip into the connector.
D Push the main body to initiate the cleaning of the
connector endface.
!
Repeat the cleaning process if necessary, then
close the proptective cap.
