NAVIGATING THE EVOLUTION CONTROL

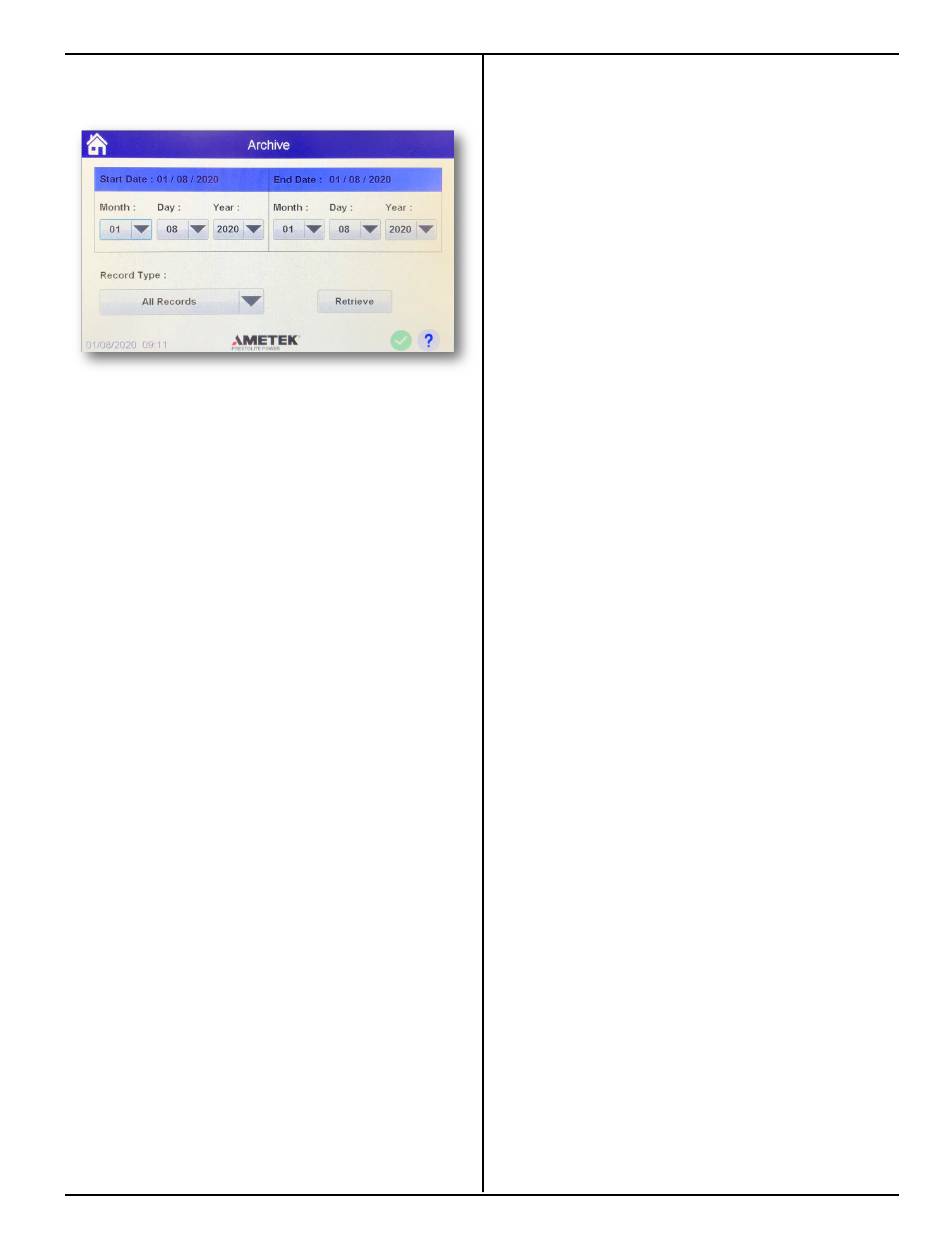

Evolution Charge Archive
The archive data can be selected on the main
screen. After the range of charge cycles is chosen,
the archive will display on the screen.
AMP HOURS RETURNED
The total ampere-hours returned during the charge
cycle. This number includes ampere-hours deliv-
ered to the battery during the Verify, 0-80%, 80% to
End, and Equalize portions of the charge cycle.
CHARGE TIME
The total charging time of the charge cycle. This
number includes the time of the Verify, 0-80%
80% to End, and Equalize portions of the charge
cycle.
80% TO END
The time the battery was charged from the 80%
charged point until DV/DT or VT (depending on the
control setting) charge termination. This time does
not include any equalize charging time that may
have been automatically or manually selected.
BATTERY OCV
The open circuit voltage of the battery immediately
before the beginning of the charge cycle.
START AMPS
The value of the current delivered to the battery at
the start of the charge cycle.
START VOLTS
The value of the battery voltage (in volts/cell) of the
battery at the start of the charge cycle.
FINISH AMPS
The value of the charge current delivered to the
battery at the end of the charge cycle.
FINISH VOLTS
The value of the battery voltage at the end of the
charge cycle.
8-3
EQUALIZE TIME
The time of the equalize portion of the charge cycle.
Equalize can be automatically or manually selected.
START TIME
The time at the start of the charge cycle.
END TIME
The time at the end of the charge cycle. Includes
the equalize time if it was automatically or manually
selected (am/pm format).
BATTERY I.D.
The Battery I.D. number of the battery that was
charged in the charge cycle. Requires Prestolite
Battery Identification Module (BID).
BID START TEMP
The temperature of the battery sensed by the
Prestolite Battery Identification Module at the start of
the charge cycle.
BID END TEMP
The temperature of the battery sensed by the
Prestolite Battery Identification Module at the end of
the charge cycle.
CYC. AMP HOURS
The Ampere-hour setting of the charger during the
charge cycle. This value cannot exceed the maxi-
mum charger output rating.
CYCLE CELLS
The Cell Size setting of the charger during the
charge cycle. This value cannot exceed the maxi-
mum charger output rating.
BATTERY TYPE
The Battery Type setting of the charger during the
charge cycle. This value cannot exceed the maxi-
mum charger output rating.
PRESENT MONTH
The month that the charge cycle occurred.
PRESENT DATE
The day of the month that the charge cycle occurred.
MODULE OUTPUT AND TEMPERATURE
Each module will display its maximum current and
temperature as well as any warnings or engine
faults.
CHARGE STATUS
Statistics will have a real-time status. Archive
records will have the termination code.
Session Start – Charge Session started
