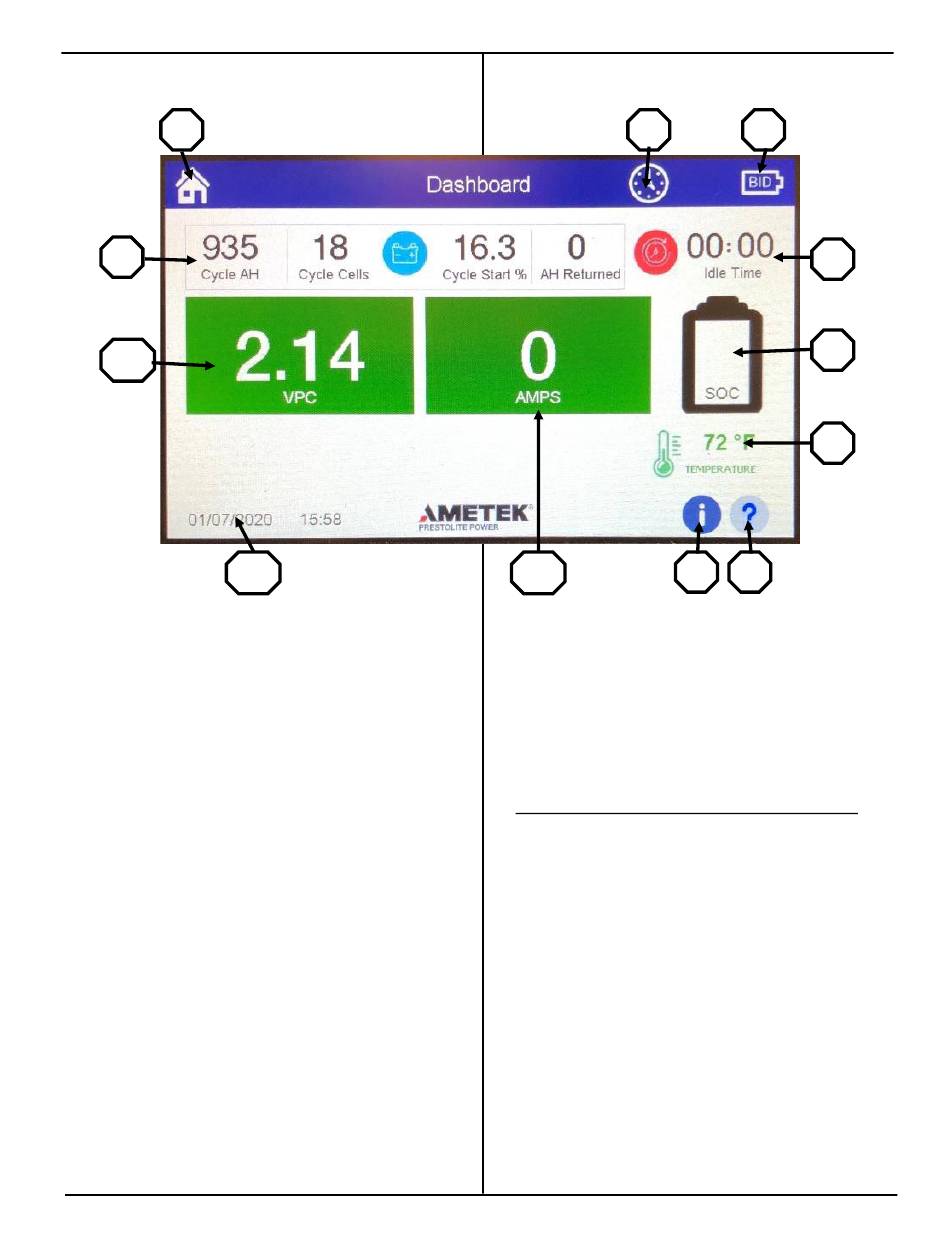

Evolution Dashboard
1
4
10
12
1. Home Icon: Touching icon will automatically return
the unit to the Home screen from any other screen.
2. Clock Icon: Indicates the charger has stopped the
charge cycle temporarily for one or more of the follow-
ing functions:
Start Mode Delay
No Gassing Delay
Battery Cool Down
Multi-Cell mode new battery delay
3. Battery Icon: Indicates the battery connection state.
-Battery with no text in the center means that a
battery is connected with no BID installed.
-Battery with the word BID in the center indi-
cates the charger has detected a BID on the connected
battery.
-Battery with the word BID flashing indicates
the charger is attempting communication with the BID
device.
4. Battery Info Icon: Indicates Battery AH size, Cell
size, Start% & AH returned.
5. Charge Time Icon: Indicates the Charge time, Idle
time, & Time since Charge Complete.
November 23, 2020
NAVIGATING THE EVOLUTION CONTROL
2
11
6. Battery State of Charge Icon: Indicates battery state
at a glance.
Each bar indicates the State of Charge in 20% in-
crements, along with colors.
-Red – Start of Charge at battery connect
-Orange – SOC < 80%
-Yellow - > 80%
-Green – Finish to Charge Complete, Bars will
flash during equalize.
SOC text will indicate current status as follows:
-SOC will be displayed while charging is in progress
-CC is displayed when the it is Charge Complete
-EQ is displayed when battery has completed the initial
charge & is now Equalizing.
7. Battery Temperature Icon: Touching this icon will
cycle display between Celsius and Fahrenheit.
8. Help Icon: Pressing this icon provides a description
of the app function that the user is currently in.
9. Status Icon: Indicates the status of the charger and
charge cycle at a glance. Touching this icon will recall
any active warnings/errors for review.
10. Charge VPC: Indicates On Charge VPC
11. Charge Amps: Indicates On Charge DC Amps
12. Date & Time: Indicates current date & time
