Model 109SS
Temperature Probe
Revision: 11/14
C o p y r i g h t
©
1 9 8 3 - 2 0 1 4
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 109SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell 109SS

Summary of Contents for Campbell 109SS

  • Page 1 Model 109SS Temperature Probe Revision: 11/14 C o p y r i g h t © 1 9 8 3 - 2 0 1 4 C a m p b e l l S c i e n t i f i c ,...
  • Page 3 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
  • Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
  • Page 5 Periodically (at least yearly) check electrical ground connections. • WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.

  • Page 7: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements ..........1 3. Initial Inspection ............1 4.
  • Page 8 Figures 6-1. Worst-case probe and measurement errors .......... 5 6-2. Steinhart-Hart linearization error ............6 8-1. 109SS thermistor probe schematic ............8 Tables 7-1. Wire Color, Function, and Datalogger Connection ......6 C-1. 109SS Thermistor Resistance and Temperature ......C-1...

  • Page 9: Introduction

    Report any shortages immediately to Campbell Scientific. Quickstart Short Cut is an easy way to program your datalogger to measure the 109SS probe and assign datalogger wiring terminals. Use the following procedure to get started.
  • Page 10 Model 109SS Temperature Probe 2. The Short Cut installation should place an icon on the desktop of your computer. To open Short Cut, click on this icon. 3. When Short Cut opens, select New Program. 4. Select Datalogger Model and Scan Interval (default of 5 or 10 seconds is...
  • Page 11 Model 109SS Temperature Probe 5. Under the Available Sensors and Devices list, select the Sensors folder, then select the Temperature sub-folder. Select 109 Temperature Probe. Click to move the selection to the Selected device window. Data defaults to degree Celsius. This can be changed by clicking the Deg C box and selecting Deg F, for degrees Fahrenheit, or K, for Kelvin.

  • Page 12: Overview

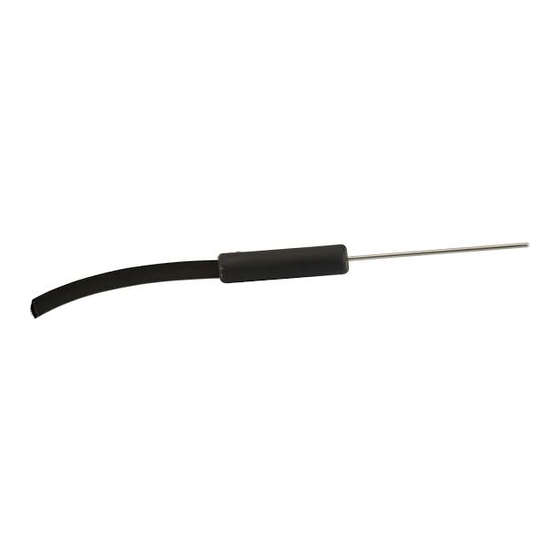

    Overview The 109SS is a rugged probe that accurately measures soil or water temperature in a variety of applications. The sensor consists of a thermistor encased in a stainless-steel sheath. This design protects the thermistor, allowing the 109SS to be buried or submerged in harsh, corrosive environments.

  • Page 13: Worst-Case Probe And Measurement Errors

    Model 109SS Temperature Probe Stainless-Steel Sheath Diameter: 0.16 cm (0.063 in) Length: 5.84 cm (2.3 in) Overmolded Joint Diameter: 1.02 cm (0.40 in) Length: 4.24 cm (1.67 in) Cable: Santoprene ® , 0.220 in diameter Cable/Probe Connection: ATUM heat shrink...

  • Page 14: Installation

    Model 109SS Temperature Probe Steinhart-Hart Linearization Error 0.03 0.025 0.02 0.015 0.01 0.005 -0.005 Temperature °C FIGURE 6-2. Steinhart-Hart linearization error Installation If you are programming your datalogger with Short Cut, skip Section 7.1, Wiring to Datalogger, and Section 7.2, Datalogger Programming. Short Cut does this work for you.

  • Page 15: Datalogger Programming

    Editor. Programming basics are provided in the following section. A complete program example can be found in Appendix B, Example Programs. If the 109SS probe is to be used with long cable lengths or in electrically noisy environments, consider employing the measurement programming techniques outlined in Section 8.3, Electrically Noisy Environments, and Section 8.4, Long...

  • Page 16: Water Temperature Installation

    Model 109SS Temperature Probe Water Temperature Installation 109SS probes can be submerged to 45 m (150 ft) or 63 psi. The 109SS is not weighted, so a weighting system should be added, or the probe secured to a submerged object such as a piling.

  • Page 17: Electrically Noisy Environments

    Model 109SS Temperature Probe The ratio of measured voltage (Vs) to excitation voltage (Vx) is related to thermistor resistance (Rs) and the 24.9 kΩ bridge resistor as described in the following equations: Vs/Vx = 24900 Ω / (Rs + 24900 Ω) Solving for Rs: Rs + 24900 Ω...

  • Page 18: Troubleshooting And Maintenance

    Periodically check cabling for signs of damage and possible moisture intrusion. Calibration Calibration of the 109SS probe is not necessary unless the application requires removal of the thermistor interchangeability offset described in Section 6, Specifications.

  • Page 19: 10. Attributions And References

    Model 109SS Temperature Probe 10. Attributions and References Santoprene ® is a registered trademark of Exxon Mobile Corporation. ATUM is a trademark of Tyco Electronics Corporation. Macromelt ® is a trademark of Henkel Corporation.
  • Page 20 Model 109SS Temperature Probe...

  • Page 21: Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut Code Into CRBasic Editor This tutorial shows: How to import a Short Cut program into a program editor for • additional refinement • How to import a wiring diagram from Short Cut into the comments of a custom program Short Cut creates the following files, which can be imported into CRBasic Editor.
  • Page 22 Appendix A. Importing Short Cut Code Into CRBasic Editor...

  • Page 23: Example Programs

    Appendix B. Example Programs The following example can be used directly with CR200(X) series dataloggers. 'Program measures one 109SS temperature probe once a second and 'stores the average temperature every 60 minutes. 'Wiring Diagram '============== 109SS Probe Lead CR200(X) Color...
  • Page 24 Therm109(T109SS_C,1,1,Vx1,0,_60Hz,1.0,0.0) 'Call Data Table CallTable(Table1) NextScan EndProg The following example can be used directly with CR6 series dataloggers. 'Program measures one 109SS temperature probe once a second and 'stores the average temperature every 60 minutes. 'Wiring Diagram '============== 109SS Probe...

  • Page 25: Conversion Of Thermistor Resistance Or Voltage Ratio To Temperature

    Appendix C. Conversion of Thermistor Resistance or Voltage Ratio to Temperature TABLE C-1. 109SS Thermistor Resistance and Temperature 10K3MCD1 CRBasic Actual Thermistor Therm109() Temperature (°C) Resistance (Ω) Output (°C) 336103.2 -40.00 314558 -39.00 294529.1 -38.00 275900.8 -37.00 258567 -36.00 242430.2 -35.00...
  • Page 26 Appendix C. Conversion of Thermistor Resistance or Voltage Ratio to Temperature 29500.5 2.00 28054.4 3.00 26687.5 4.00 25395 5.00 24172.5 6.00 23015.9 7.00 21921.2 8.00 20884.7 9.00 19903.2 10.00 18973.3 11.00 18092.2 12.00 17256.9 13.00 16464.9 14.00 15713.7 15.00 15000.9 16.00 14324.5 17.00...
  • Page 27 Appendix C. Conversion of Thermistor Resistance or Voltage Ratio to Temperature 2673.9 58.00 2578.6 59.00 2487.1 60.00 2399.4 61.00 2315.2 62.00 2234.4 63.00 2156.8 64.00 2082.3 65.00 2010.8 66.00 1942.1 67.00 1876 68.00 1812.6 69.00 1751.6 70.00 1693 71.00 1636.6 72.00 1582.4 73.00...
  • Page 28 Appendix C. Conversion of Thermistor Resistance or Voltage Ratio to Temperature...
