Campbell IR100 User Manual

Infra-red remote temperature sensor
Hide thumbs Also See for IR100:
Table of Contents

Advertisement

Quick Links

Download this manual

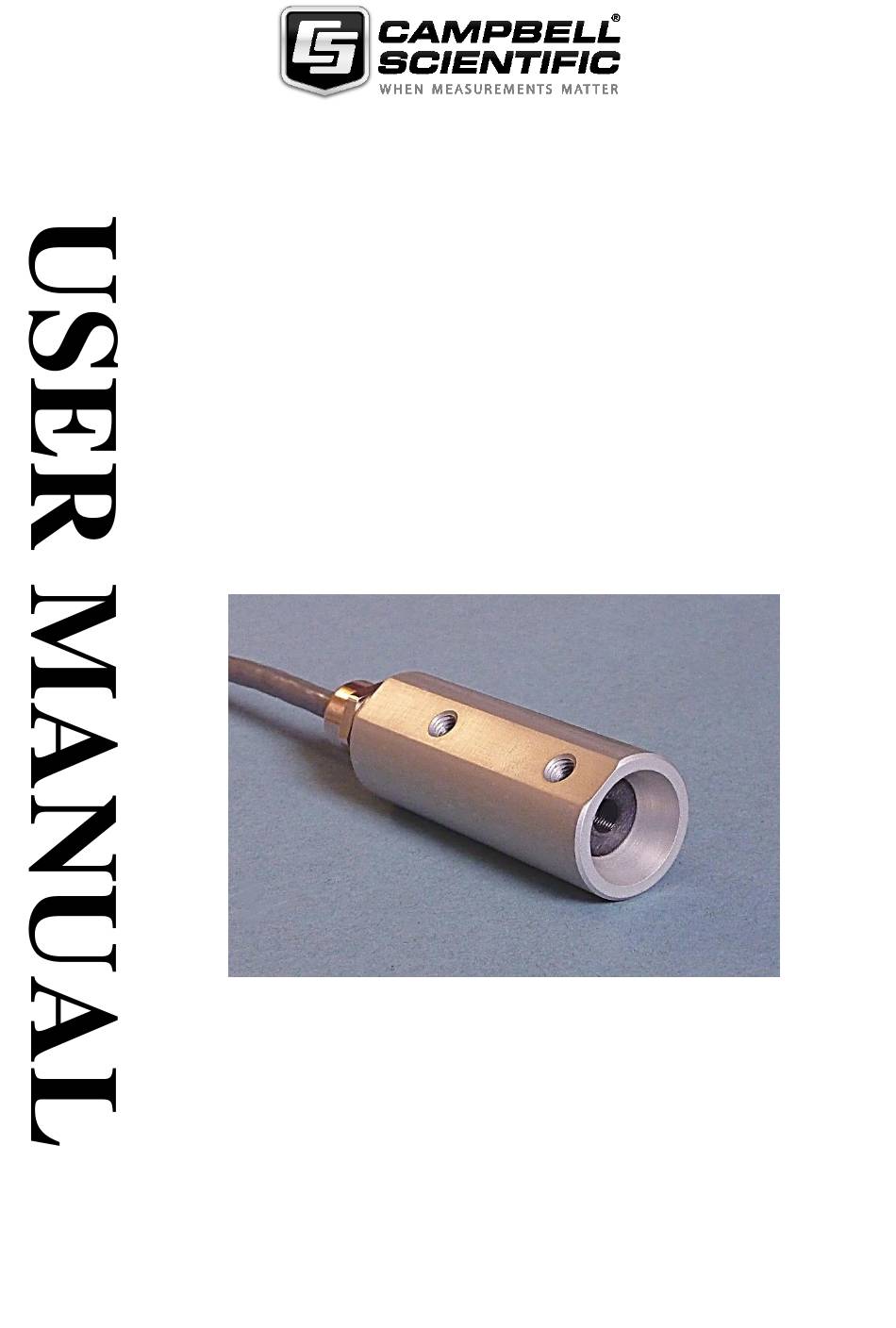

IR100/IR120
Infra-red Remote
Temperature Sensor
Issued: 2.5.18
Copyright © 2007-2018 Campbell Scientific Ltd.
CSL 708

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR100 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell IR100

Summary of Contents for Campbell IR100

  • Page 1 IR100/IR120 Infra-red Remote Temperature Sensor Issued: 2.5.18 Copyright © 2007-2018 Campbell Scientific Ltd. CSL 708...
  • Page 3 Quotations for repairs can be given on request. It is the policy of Campbell Scientific to protect the health of its employees and provide a safe working environment, in support of this policy a “Declaration of Hazardous Material and Decontamination”...
  • Page 5 PLEASE READ FIRST About this manual Please note that this manual was originally produced by Campbell Scientific Inc. primarily for the North American market. Some spellings, weights and measures may reflect this origin. Some useful conversion factors: Area: 1 in...
  • Page 7 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS...

  • Page 9: Table Of Contents

    5.5 Getting the best measurements ............... 10 6. Program Examples & Explanation of Terms ..............11 6.1 IR100 Blackbody Infrared Temperature Measurement ......11 6.1.1 Thermistor Measurement – Sensor Body Temperature ....11 6.1.2 Thermopile Detector – Infrared Radiation Measurement .... 11 6.2 Correcting for an enclosure window ............
  • Page 10 Equipment ..............A-1 B IR100 Thermistor resistance ........B-1 Table 1. IR100 Datalogger Wiring Details ............... 2 Figures 1. A picture of the IR-SS with IR120 fitted ............ 4 2. A cross-sectional diagram of the sensor fitted inside the IR-SS shield ..5 3.

  • Page 11: Introduction

    Two variants of the sensor are available, the IR100 has an ultra-narrow field of view whilst the IR120 has a narrow field of view (see specifications below).

  • Page 12: Wiring

    Excitation Black Ground Clear Shield The IR100 can be wired either single ended or differentially as detailed in Table 1. 3.1 Spectral response Wavelength Range: IR100: effective bandwidth 7-14 µm (some sensitivity from 2-6 µm) IR120: 8 to 14 µm...
  • Page 13 User Manual Thermistor 30K @25°C Excitation 30K@ 77020R Thermistor Brown White Ground Black Ground Amplifier Green IR Temp Clear Shield Thermopile...

  • Page 14: Installation

    The IR100 sensor should not be allowed to fill with water. Do not point skywards. The IR100 can be secured by means of one or two 6 mm screws to fix the sensor to a flat surface - such as a metal mounting bracket (screws not provided).

  • Page 15: A Cross-Sectional Diagram Of The Sensor Fitted Inside The Ir-Ss Shield

    User Manual the sensor above the hole in the sensor nearest the cable (position A) so you can see the mounting hole through the centre of the pillar. Carefully lift the sensor and insert it inside the shield balancing the pillar on sensor as you do so.

  • Page 16: The Shield Fitted Onto The Ir1X0 Mounting Arm

    IR100/IR120 Infra-red Remote Temperature Sensor Figure 3. The shield fitted onto the IR1X0 mounting arm Optional band-clamp, pole mounts are available to allow the IR-SS to be mounted on the side of lamp posts and similar structures. The band-clamps are specified to match a specific range of size of pole.

  • Page 17: The Arrangement Of The Nut And Washers On The Band Clamp Fitting

    User Manual free at the end. Then screw that bolt into the side of the shield, so the bolt is fully screwed into the metal insert in the shield, but not so far that the end is not touching the body of the sensor. Now mount the bracket on the pole using the band, rotating the band so the sensor points in the right direction.

  • Page 18: Principles Of Measurement

    The IR100 will also be more sensitive to moisture in the atmosphere compared to the IR120 so the distance to the target should be minimised.

  • Page 19: Correction For Non-Blackbody Surfaces

    (IRcan_Temp -25) 5.4 Correction for Non-Blackbody Surfaces The IR100 sensor is calibrated against a blackbody target. The proportion of energy it emits to that which it reflects is known as its Emissivity (ε). A black body is said to have an emissivity of 1.

  • Page 20: Getting The Best Measurements

    This is because reflection can lead to significant errors and reflection increases the more acute the angle. Those reflections can be long wave IR and/or from reflected sunlight (the IR100 is more prone to this as it has a little sensitivity at lower wavelengths). ...

  • Page 21: Program Examples & Explanation Of Terms

    The following CR1000 program example shows the code required to obtain a raw infrared radiation measurement from the IR-100 sensor. To minimise the effect of noise on the signal the IR100 has an internal amplifier that requires a positive 2500 mV excitation and at least a75 mS settling time before taking the measurement.

  • Page 22: Correcting For An Enclosure Window

    This correction is not needed for the sensor fitted in an IR-SS shield. Campbell Scientific have supplied enclosure with a thin plastic white film that has high IR transmission or an enclosure with a hard germanium window.

  • Page 23: Non-Blackbody Infrared Temperature Measurement

    6.3 Non-Blackbody Infrared Temperature Measurement The following example shows the additional line of code required to obtain an infrared temperature measurement from the IR100 sensor, corrected for a target surface emissivity of 0.94. and assuming that the adjacent surfaces are at the sensor temperature: Emissivity = 0.94...

  • Page 24: Crbasic Cr1000 Program Examples

    6.4.1 CRBasic example with Emissivity correction 'CR1000 Program for the IR1x0 with emissivity correction 'Calibration Data for the IR1x0 'NOTE : These values should match those listed on the IR100 calibration certificate Const Coeff_A = 9.355652E-04 Const Coeff_B = 2.203275E-04 Const Coeff_C = 1.394681E-07...

  • Page 25: Crbasic Example With Emissivity And Window Film Correction

    'Used when the sensor is installed inside a protective housing with a 'transmissive film or window 'Calibration Data for the IR1x0 'NOTE : These values should match those listed on the IR100 calibration certificate Const Coeff_A = 9.355652E-04 Const Coeff_B = 2.203275E-04 Const Coeff_C = 1.394681E-07...

  • Page 26: Edlog Cr10X Program Example

    ;IR120 Example Program *Table 1 Program 01: 5 Execution Interval (seconds) ; Calibration Data for the IR120 ; NOTE : These values should match those listed on the IR100 Calibration Certificate Z=F x 10^n (P30) 1: 2.29176 2: -5 n, Exponent of 10...
  • Page 27 3: 77020 Multiplier (Rf) ;Use Steinhart-Hart, apply calibration coeff to get body temperature in deg C ; Calibration Data for the IR120 ; NOTE : These values should match those listed on the IR100 Calibration Certificate Steinhart-Hart Equation (P200) 1: 1...
  • Page 28 IR100/IR120 Infra-red Remote Temperature Sensor 9: 0.0 Offset ; Apply Temperature Compensation Z=X+F (P34) 1: 8 X Loc [ IR_Can 2: -25 3: 10 Z Loc [ IR_Can_Tp ] Z=F x 10^n (P30) 1: 1.0004 2: 00 n, Exponent of 10...
  • Page 29 User Manual Z=F x 10^n (P30) 1: 5.67 2: -8 n, Exponent of 10 3: 15 Z Loc [ IR_Exp Z=X/Y (P38) 1: 13 X Loc [ IRs_E 2: 15 Y Loc [ IR_Exp 3: 13 Z Loc [ IRs_E Z=X+Y (P33) 1: 13 X Loc [ IRs_E...

  • Page 30: Maintenance

    IR100/IR120 Infra-red Remote Temperature Sensor 3: 14 Z Loc [ IRs_Temp Z=X/Y (P38) 1: 14 X Loc [ IRs_Temp 2: 18 Y Loc [ Emissiv 3: 14 Z Loc [ IRs_Temp Z=F x 10^n (P30) 1: 0.25 2: 00 n, Exponent of 10...

  • Page 31: Equipment

    Appendix A. Correction for Non- Blackbody used in Campbell Scientific’s Road Temperature Monitoring Equipment This appendix is added so that those wishing to understand the correction method used in IRIS and other road surface monitoring equipment may do so and to help those wishing to apply similar techniques to other applications.
  • Page 32 Thus: B = Transmissivity x Emissivity The proportion or the sky depends to an extent on the exposure to of the site in question. This is known as the Sky View Factor and is the ratio of the area of the surrounding buildings &...
  • Page 33 Appendix B. IR100 Thermistor Resistance Please note tolerance on these figures is ±5%. Individual calibration for each sensor is included on the calibration certificate. Ohms Degree C 363,300.0 273,420.0 207,600.0 158,910.0 122,580.0 95,355.0 74,655.0 58,857.0 46,716.0 37,320.0 30,000.0 24,261.0 19,734.0 16,140.0...
  • Page 34 CAMPBELL SCIENTIFIC COMPANIES Campbell Scientific, Inc. (CSI) 815 West 1800 North Campbell Scientific Centro Caribe S.A. (CSCC) Logan, Utah 84321 300N Cementerio, Edificio Breller UNITED STATES Santo Domingo, Heredia 40305  COSTA RICA www.campbellsci.com info@campbellsci.com  www.campbellsci.cc info@campbellsci.cc Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Campbell Scientific Ltd.
