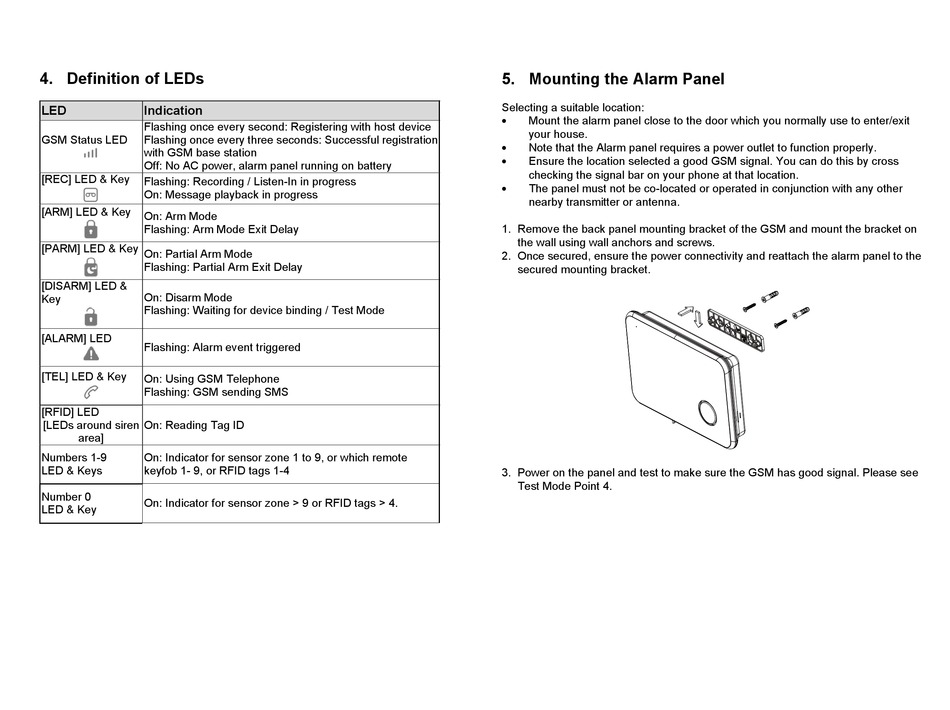

4. Definition of LEDs
LED Indication
Flashing once every second: Registering with host device
GSM Status LED Flashing once every three seconds: Successful registration
with GSM base station
Off: No AC power, alarm panel running on battery
[REC] LED & Key
Flashing: Recording / Listen-In in progress
On: Message playback in progress
[ARM] LED & Key
On: Arm Mode
Flashing: Arm Mode Exit Delay
[PARM] LED & Key On: Partial Arm Mode
Flashing: Partial Arm Exit Delay
[DISARM] LED &
On: Disarm Mode
Key
Flashing: Waiting for device binding / Test Mode
[ALARM] LED
Flashing: Alarm event triggered
[TEL] LED & Key
On: Using GSM Telephone
Flashing: GSM sending SMS
[RFID] LED
[LEDs around siren On: Reading Tag ID
area]
Numbers 1-9 On: Indicator for sensor zone 1 to 9, or which remote
LED & Keys keyfob 1- 9, or RFID tags 1-4
Number 0
On: Indicator for sensor zone > 9 or RFID tags > 4.
LED & Key

5. Mounting the Alarm Panel

Selecting a suitable location:

Mount the alarm panel close to the door which you normally use to enter/exit
your house.

Note that the Alarm panel requires a power outlet to function properly.

Ensure the location selected a good GSM signal. You can do this by cross
checking the signal bar on your phone at that location.

The panel must not be co-located or operated in conjunction with any other
nearby transmitter or antenna.
1. Remove the back panel mounting bracket of the GSM and mount the bracket on
the wall using wall anchors and screws.
2. Once secured, ensure the power connectivity and reattach the alarm panel to the
secured mounting bracket.
3. Power on the panel and test to make sure the GSM has good signal. Please see
Test Mode Point 4.
