Summary of Contents for Smartwares CS96DVR

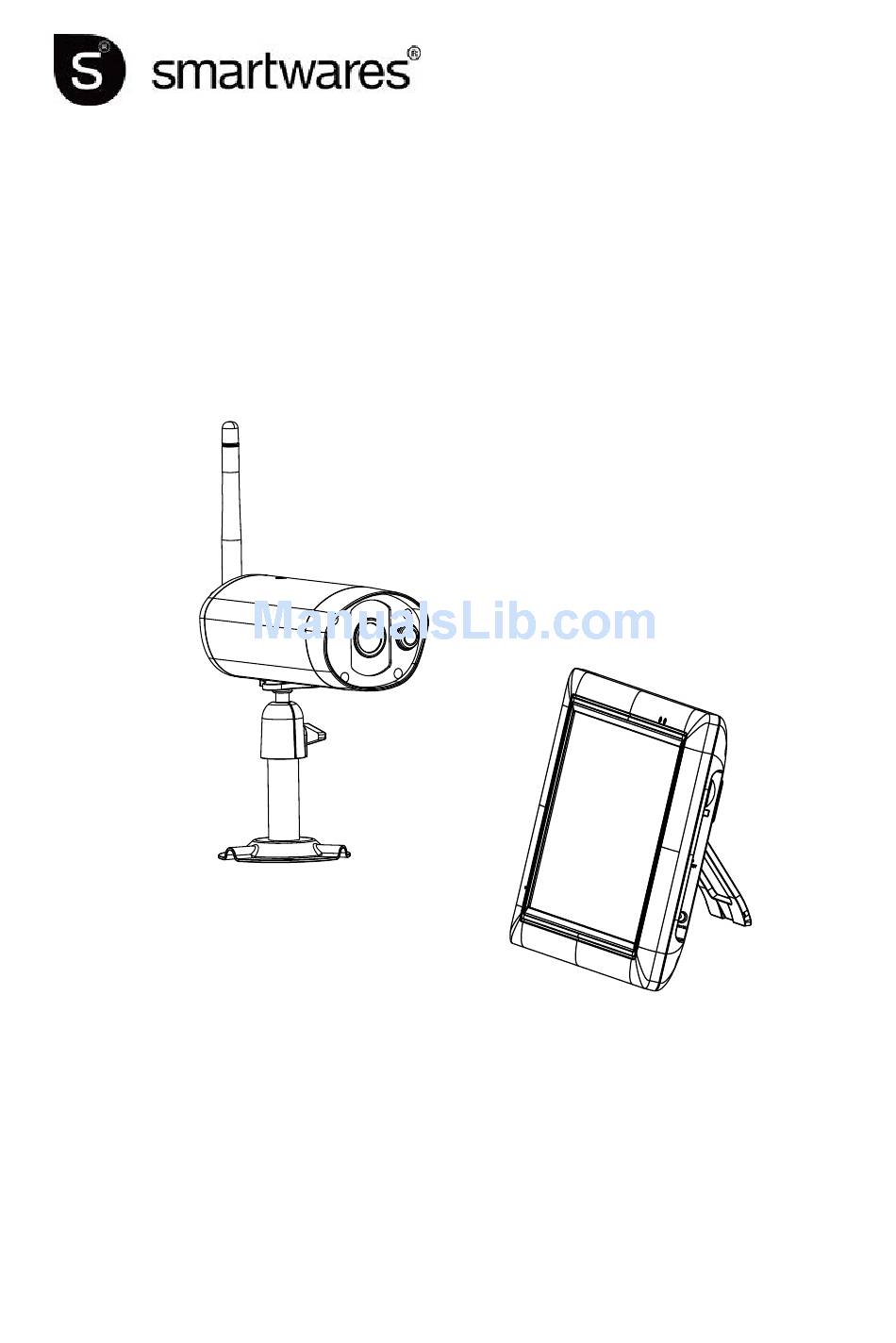

- Page 1 VIDEO SECURITY SYSTEM Installation and Operation Instruction Manual Model: CS96DVR Version 1.0 This manual should be retained for future reference...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT NOTICE ................3 Please Read Before You Start .............. 3 Wireless Devices Operating Range ............3 Important Safety Precautions ............... 3 Requirements for Remote View ............5 KIT CONTENT .................... 6 SAFETY AND INSTALLATION TIPS ............7 Camera Installation ................7 Pairing the Camera to Receiver (optional) ......... - Page 3 Alarm Setup Screen ................25 Period ....................25 Melody ....................25 System Setup Screen ................26 Power Saving ..................26 Screen Auto Lock ................27 Time ....................28 Clock Alarm ..................28 Time Setting ..................28 Timer ....................29 Format Storage ................... 30 System Upgrade.................. 30 Language ....................
-
Page 4: Important Notice
IMPORTANT NOTICE PLEASE READ BEFORE YOU START Always use discretion when installing CCTV equipment, especially when there is perceived policy. Enquire relevant local regulations applicable to the lawful installation of video recording/surveillance. Third party consent may be required. WIRELESS DEVICES OPERATING RANGE Ensure the signal reception viewed from the wireless camera(s) is the best possible reception between the camera(s) and receiver. - Page 5 FCC Compliance Statement: This Products with CE Marking comply with device complies with Part 15 of the EMC Directive (2004/108/EC); Low FCC rules. Operation is subjected Voltage Directive (73/23/EEC); to the following two conditions: R&TTE(1999/5/EC); ROHS Directive (1) this device may not cause harmful interference, (2011/65/EU) issued by the Commission of the and (2) this device must accept any interference European Community.
-
Page 6: Requirements For Remote View
System “Device ID” and “Password” are provided on a label applied at the back of the LCD Monitor (behind the pull out stand). The “Device ID” and “Password” are needed for remote viewing. For security purpose, it is recommenced for user to copy the “Device ID” and “Password”... -
Page 7: Kit Content
KIT CONTENT Wireless Camera w/ stand Wireless Touch Screen LCD Monitor w/ Cradle x 1 Camera Antenna x 1 5V/1A Power Adapter for Camera Internet Cable x 1 Screw Bag x 1 QSG x 1 Tools Required: • Electric drill •... -
Page 8: Safety And Installation Tips
SAFETY AND INSTALLATION TIPS Installation Notes Always follow manufacturer’s advice when using power tools, steps, ladders, etc and wear protective equipment (e.g, safety goggles and gloves) when drilling holes, etc. When using ladders ensure they are positioned on a firm stable surface at an angle and suitably secured. - Page 9 NOTE: The camera has an open field RF operating range of up to 150m.
- Page 10 Camera Installation Secure camera stand on the stable surface Loosen up the Thumb screw Adjust proper view angle then secure the joint with T-bolt.
-
Page 11: Pairing The Camera To Receiver (Optional)
Pairing the Camera to Monitor Follow the steps in Camera Setup section to setup or change the channel of the camera. If you are adding another camera to link with the supplied monitor in this kit, then ensure its channel is set to a different channel to the existing camera(s). Pairing Button Note: If the camera is located within 1m to 1.5m from the monitor and the camera's volume of... -
Page 12: Getting To Know The Monitor And Camera
GETTING TO KNOW THE MONITOR AND CAMERA Monitor Antenna Power On/Off Unique DID SD Slot Pull-Out Stand Reset AC Power Connection Camera Front Back Motion Sensor Antenna Green LED Red LED Pull-Out Stand Light Sensor Power Button Microphone Pairing Button WHAT THE LIGHTS MEAN Light State... -
Page 13: System Introduction
SYSTEM INTRODUCTION Your monitor’s system software operates through a series of screens that let you choose groups of operations. For example, when you tap on the camera icon in the Pop-up menu, you can set how you want the main viewing screen, “the Live screen” to display images from the paired cameras. - Page 14 ICON WHAT THE ICON MEANS Select how you want the Live screen to display camera input: Scan between cameras (5 seconds) Camera Mode Quad view (all paired cameras display) Full view (1 camera displays on full screen) Volume Adjust the volume level. Access the system software operation and setting page or view recorded System Settings events.
-
Page 15: Live Screen Displays
Live Screen Displays The Live screen displays in 2 views - Quad View or Full View. Quad View displays the images in 4 quadrants (only display camera that is ON). Tap a quadrant to display single camera view / full view. Tap on that image again to return to Quad View. Zoom Feature To zoom into a particular area, 1. -
Page 16: Playing Back Recorded Video
Playing Back Recorded Video Tap on the highlighted day containing the recording you want to view. The Record List screen will display that day’s recordings listed in a folder. If you tap on a day that is not highlighted, a folder displays with no recordings listed. -
Page 17: System Menu
SYSTEM MENU The SYSTEM MENU highlights the Camera Setup option as the default. Main Screen Sub Screens What it Does Camera Setup Camera Setup Pairs new cameras to the monitor. Camera on Makes the cameras visible to the monitor. Brightness Brightens or darkens the video of that camera. -
Page 18: System Operation
SYSTEM OPERATION Camera Setup Screen Tap on camera setup. This screen should display: Camera Pairing To add new camera(s) to your monitor, you have to pair it to preferred channel(s). 1. Tap the camera channel you want to pair. A processing icon displays for a 60 second countdown. -
Page 19: Camera Activation
Camera Activation When you add a camera to your monitor, the system will turn on the camera automatically. An X indicates a camera is OFF, a indicates ON. Tap on the camera to turn it ON or OFF. Brightness Tap the camera to change brightness level. The default brightness is 0, and the range is from -2 through 2. -
Page 20: Recorder Setup Screen
Recorder Setup Screen Motion Detection Tap a camera to set the sensitivity to Off, Low or High. Default = low. The screen will return to the Motion Detection screen after 10 seconds or when you tap the " " Email Alert (Also refer to "Internet Setup" on P.25) The system can notify you when it detects motion from any camera by sending you an email alert. - Page 21 Detection must be activated). The incoming mail server (Email To) receives the email notification sent from the system. User must be able to receive email on a Windows PC or mobile device to receive e-mail alerts. When you receive an email alert, you can view live video from through apps. Free apps are available: For Android smart device, search for: OMGuard HD on Google Play For iOS smart device, search for: OMGuard HD on Apple Store...
-
Page 22: Schedule Record
Repeat Step 3 for the Email To field. Only one incoming email account will be accepted by the system. The incoming email account can be different from the outgoing email account. 6. Tap OK to save the settings, then tap to return to the previous screen. -
Page 23: Clear A Scheduled Recording
Tap on the date you want the recording. The previous screen displays. Set up the recording and then tap Save. You can select another recording session to schedule. Clear a Scheduled Recording Access the Schedule Record screen. Tap on the scheduled recording you want to clear (1-5). The screen displays the settings for that schedule. -
Page 24: Internet Setup
Internet Setup Tap Internet Setup icon to display the Internet Setup screen. Tap on your selection and fill in the fields requested. Tap OK. Tap OK at the system reboot prompt. The Network Setup screen displays. Security Code Set up your security code to limit who can have access to the system from a remote location. -
Page 25: Network Information
If you have previously entered a code, the screen will display your current code Tap on the change code field, a key board screen displays. Enter your security code. Tap OK. The system will return to Network Setup screen. Note: Security code must be entered to gain remote access. To protect your privacy, please be sure to change the default password 123456 into your personal security code. -
Page 26: Alarm Setup Screen
Alarm Setup Screen From the Alarm Setup screen, you can: Set the length of time the alarm sounds Select a melody for the alarm. Period This selection allows you to select the alarm/siren duration for Clock Alarm and Timer. Tap Period. -
Page 27: System Setup Screen
2. Select the melody required 3. Tap the BACK arrow to return to the previous screen. System Setup Screen Power Saving In Power Saving mode, the monitor will shut off LCD after idle for 2 minutes. Press Power button once to reactive the monitor. If a motion detection event or scheduled recording begins, the LCD turns back on automatically. -
Page 28: Screen Auto Lock
A check mark appears on your selection. Tap the BACK arrow to return to the previous screen. Screen Auto Lock In Auto Lock mode, the monitor will enter screen lock mode after it has been idle for 2 minutes. Auto Lock disables the touch screen and removed the icons from the display. Tap Screen Auto Lock 2. -
Page 29: Time
Time The Time screen lets you set up clock alarms, set the system time, and set a timer. Clock Alarm This feature operates as an independent alarm clock. It does not affect the operation of live video or recording video. to display the Clock Alarm screen. -
Page 30: Timer
to display the Time Setting screen. 2. Tap on each field to set it. The UP/DOWN arrows shift to that field. Use UP/DOWN to set the field. 3. Tap on the AM/PM block to switch between the two. 4. Tap SAVE when you are finished. Timer This feature operates as an independent alarm clock. -
Page 31: Format Storage
Format Storage When using an SD card other than the one provided, it is highly recommended that you format the card using these procedures. Formatting any SD card deletes all files on that card. Tap on START; a warning statement displays. Tap OK to proceed to format storage or tap CANCEL to discontinue. -
Page 32: Language
Language English is the default language. If you change the language, all system settings default to the original factory settings. You will have to reenter any specialized settings. Select the language required. The Restore Default Settings screen displays. Tap OK to continue. The system will shut down in about 5 seconds. When the system restarts, it will ask you to perform the touch screen calibration. -
Page 33: Remote Access
REMOTE ACCESS Overview This Video Security System lets you view live video from your iPhone, iPad, or Android smartphone or tablet. Free apps are available through the iTunes App Store or the Android Market. Up to 2 remote users can access live video at the same time as long as they have the User ID (DID) code and security code. -
Page 34: For Ios App Main Screen
For iOS App Main Screen Camera Name Connection Device List Section Status List of cameras added to the app. Scroll down for more if you have more than two cameras added. Device list will display random snapshot of connected camera. If the camera is disconnected a “disconnected”... - Page 35 Add Camera From the Main Screen, tap on Add Camera icon to bring up the Camera Setup section. 1. Enter preferred System Name – max. 20 characters. 2. Enter the DID assigned. The DID may locate on the camera or back of the monitor. 3.
- Page 36 Camera Setting From the Main Screen, tap on Camera Setting icon to bring up the additional control functions. Camera Edit Camera Delete Camera Event List Camera Edit 1. Here you can revise System Name. 2. Here you can turn Email Alert On or Off. After altering the setting, tap Save to complete process.
- Page 37 Camera Event List Tap on Camera Event List icon to bring up the event list section, where most recent event(s) will be displayed. 1. Here you can tap on Delete All or Delete One to remove the unwanted recorded video files.
- Page 38 Event Playback Once a particular event is selected the app will playback the recorded video file. You can zoom in by using hand gesture. Pause Playback Return to Event List...
- Page 39 Live-view Tap a camera from the Device List to enter live-view section. Snapshot (file stored in smart device) Video Record (file stored in the memory card installed in the monitor) Return to Main Screen If you have multiple cameras setup, tap on Camera Select and tap on the camera you wish to view.
-
Page 40: For Android App Main Screen
For Android App Main Screen Camera Name Connection Device List Section Status List of cameras added to the app. Scroll down for more if you have more than two cameras added. Device list will display random snapshot of connected camera. If the camera is disconnected a “disconnected”... - Page 41 Add Camera From the Main Screen, tap on Add Camera icon to bring up the Camera Setup section. 1. Enter preferred System Name – max. 20 characters. 2. Enter the DID assigned. The DID may locate on the camera or back of the monitor. 3.
- Page 42 Camera Setting From the Main Screen, tap on Camera Setting icon to bring up the additional control functions. Camera Edit Camera Delete Camera Event List Camera Edit 1. Here you can revise System Name. 2. Here you can turn Email Alert On or Off. After altering the setting, tap Save to complete process.
- Page 43 Camera Event List Tap on Camera Event List icon to bring up the event list section, where most recent event(s) will be displayed. 1. Here you can tap on Delete All or Delete One to remove the unwanted recorded video files.
- Page 44 Event Playback Once a particular event is selected the app will playback the recorded video file. You can zoom in by using hand gesture. Pause Playback Return to Event List...
- Page 45 Live-view Tap a camera from the Device List to enter live-view section. Snapshot (file stored in smart device) Video Record (file stored in the memory card installed in the monitor) Return to Main Screen If you have multiple cameras setup, tap on Camera Select and tap on the camera you wish to view.
-
Page 46: Maintaining Your System
MAINTAINING YOUR SYSTEM Please make sure to upgrade your system firmware to the latest version. Check your system firmware version on the Network Information screen (please refer to the Network Information section). Go to vendor website to check the current firmware version. Compare it with your system firmware version. -
Page 47: Trouble Shooting
TROUBLE SHOOTING TROUBLE SOLUTIONS No image Screen lock may be on. Tap the Power button to unlock the screen. Make sure the camera is power on. Make sure the monitor is connected with AC/DC adaptor. Move the camera closer to the monitor; it might be out of range or flip the antenna of the receiver to obtain best possible reception. -
Page 48: Product Specification
PRODUCT SPECIFICATION Camera Receiver Maximum channels Communication Range 150 meters in open space LCD Monitor Resolution 800 x 480 Camera Resolution Single Camera: 480x272 / Multiple Camera: 320x240 Operating Temperature -10ﾟC ~ 50ﾟC Operating Voltage DC 5V / 1A Current Consumption 500mA (MAX) 800mA (MAX) Night Vision...
