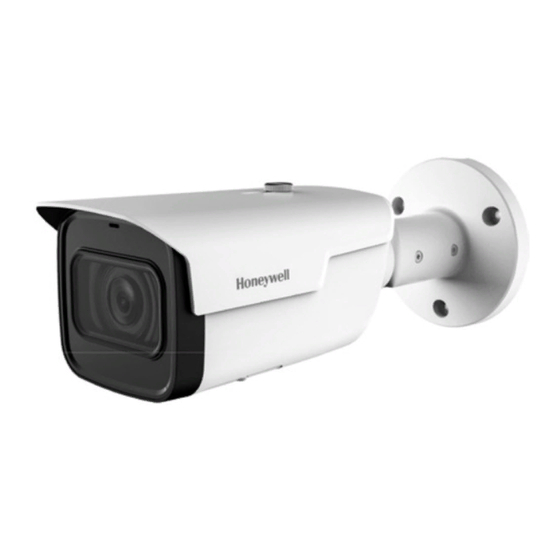

HBW8PR2 WDR 8MP IR Bullet Camera
Quick Installation Guide
Thank you for purchasing a Honeywell Performance Series IP
camera. Follow the instructions in this guide to install and log
in to your camera. For instructions on configuring the camera,
refer to the user guide on the CD that came with your camera.
If you require additional assistance, call the number listed for
your region on the back cover.
Cautions and Warnings
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING
To ensure compliance with electrical safety standards, this product is
intended for use with a Listed Power Adapter marked "Limited Power
Source" or "LPS" on the unit, output rated to 12 VDC, minimum 0.33 A,
TMA=60 deg C, or from Power over Ethernet (PoE) provided by Listed
Information Technology Equipment meeting IEEE 802.3af PoE standard.
CAUTION
The Ethernet connection is not intended to be connected to exposed
(outside plant) networks. Do not connect two power sources to the camera
at the same time.
CAUTION
Invisible LED radiation (850 nm). Avoid exposure to beam.
Important Safeguards
Read and keep these instructions.
Confirm the installation surface can support at least three times the weight of the
camera.
Do not aim the camera toward a bright light source for extended periods to prevent
damage to the imager.
THIS SYMBOL INDIC ATES THAT
DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESENT
WITHIN THE UNIT.
THIS SYMBOL INDIC ATES THAT
IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS
ACCOMPANY THIS UNIT.
Avoid operating the unit under or close to unstable light sources (may cause flickering),
or close to fluorescent lamps or objects reflecting light.
Do not touch the camera lens.
Do not drop the camera or subject it to physical shock.
Do not use a strong or abrasive detergent when cleaning the camera.
Avoid operating or storing the unit in extremely humid, dusty, hot/cold environments,
where the operating temperature is outside the recommended range of -22°F to 140°F
(–30°C to 60°C).
Do not apply power to the camera before completing installation.
Before You Begin
Before you begin, check that you have received all of the parts listed below. If any parts are
missing or damaged, contact your dealer immediately.
Camera
Installation CD
Quick installation guide
Allen key (L-wrench)
CAUTION
Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
Preparing the Mounting Surface
1.
Apply the mounting template to the mounting
surface.
Note Observe the orientation of the cable exit notch
on the bracket base. In outdoor installations, the
notch should point downward to prevent water from
entering the camera housing.
2.
Using the mounting template as a guide, drill three
pilot holes in the mounting surface, then hammer the
supplied anchors into the holes.
3.
Drill a cable entry hole in the mounting surface, then pull the required cables through the
hole.
Mounting and Aiming the
Camera
1.
If you are using a microSD card with
the camera, install it before continuing.
Remove the panel on the underside of
Self-tapping screws (×4)
Plastic wall anchors (×4)
Mounting template
Figure 1
