Performance Series IR 1080p IP PTZ Dome Quick Installation Guide
800-22755 - Rev A - 12/2016

Cautions and Warnings

WARNING
Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your warranty.
WARNING
To ensure compliance with electrical safety standards, CSA Certified/UL
Listed Class 2 power adapters are required. Power over Ethernet (PoE) shall be supplied
by listed Information Technology Equipment. The PoE is not intended to be connected to
exposed (outside plant) networks.
IMPORTANT NOTE
Regarding PoE operation of HDZP252DI models
A high power PoE injector capable of supplying at least 20 W is required for proper
operation of HDZP252DI models.
FCC Statement of Compliance
Information to the User: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Note
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Manufacturer's Declaration of Conformance
The manufacturer declares that the equipment supplied with this guide is compliant with
the European Parliament and Council Directive on the Restrictions of the use of certain
Hazardous Substances in electrical and electronic equipment (2011/65/EU), General
Product Safety Directive (2001/95/EC) and the essential requirements of the EMC
Directive (2014/30/EU), conforming to the requirements of standards EN 55022 for
emissions, EN 50130-4 for immunity, and EN 60950-1 for electrical equipment safety.
WARNING
To comply with EN50130-4 requirements, a UPS should be employed
when powering the camera from 12 V DC.
Waste Electrical and Electronic Equipment (WEEE)
Correct Disposal of this Product (applicable in the European Union and other
European countries with separate collection systems).
This product should be disposed of, at the end of its useful life, as per applicable local
laws, regulations, and procedures.

Safety Instructions

Before installing or operating the unit, read and follow all instructions. After
installation, retain the safety and operating instructions for future reference.
1.
HEED WARNINGS - Adhere to all warnings on the unit and in the operating instructions.
2.
INSTALLATION
Install in accordance with the manufacturer's instructions.
Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
3.
POWER SOURCES - This product should be operated only from the type of power source
indicated on the marking label.
4.
HEAT - Situate away from items that produce heat or are heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers).
5.
MOUNTING SYSTEM - Use only with a mounting system recommended by the manufacturer,
or sold with the product.
6.
ATTACHMENTS - Do not use attachments not recommended by the product manufacturer as
they may result in the risk of fire, electric shock, or injury to persons.
7.
ACCESSORIES - Only use accessories specified by the manufacturer.
8.
CLEANING - Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
9.
SERVICING - Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Document 800-22755 – Rev A – 12/2016
10.
REPLACEMENT PARTS - When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the same
characteristics as the original part. Unauthorized substitutions may result in fire, electric shock
or other hazards. Using replacement parts or accessories other than the original
manufacturers may invalidate the warranty
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries in accordance with local laws.

Before You Begin

Check that you have received all of the parts listed below. If any parts are missing or
damaged, contact your dealer immediately.

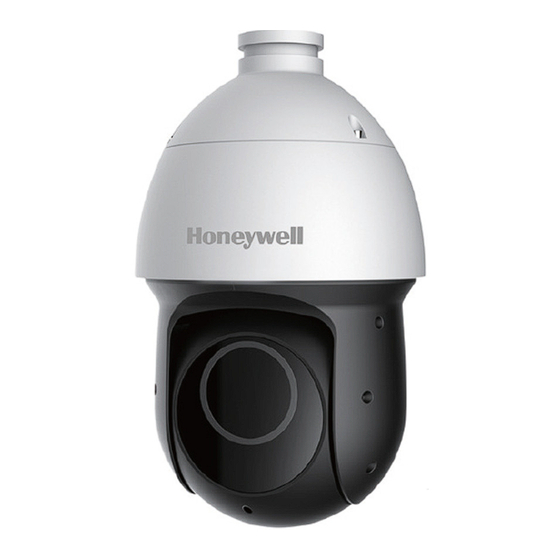

HDZP252DI
• PTZ dome camera
• Mount
• Wrench
Note
Rotate and remove the protective cover bag and tape from the camera body
before the installation.
Inserting the SD Card
Open the camera cover and insert an SD card into the camera before starting installation
(if an SD card is required).
It is recommend that you use a high quality microSD card (up to 128 GB) that has a
minimum write speed of class 10. Insert the card before finishing camera installation. The
card must be formatted using the Honeywell Web GUI before it can be used for recording
(go to Setup
Storage
Destination
.
• Waterproof joint
• Quick Installation Guide
• Installation CD
Open rear cover
SD card slot
Local
Format).
