Summary of Contents for Cartoni MASTER 65

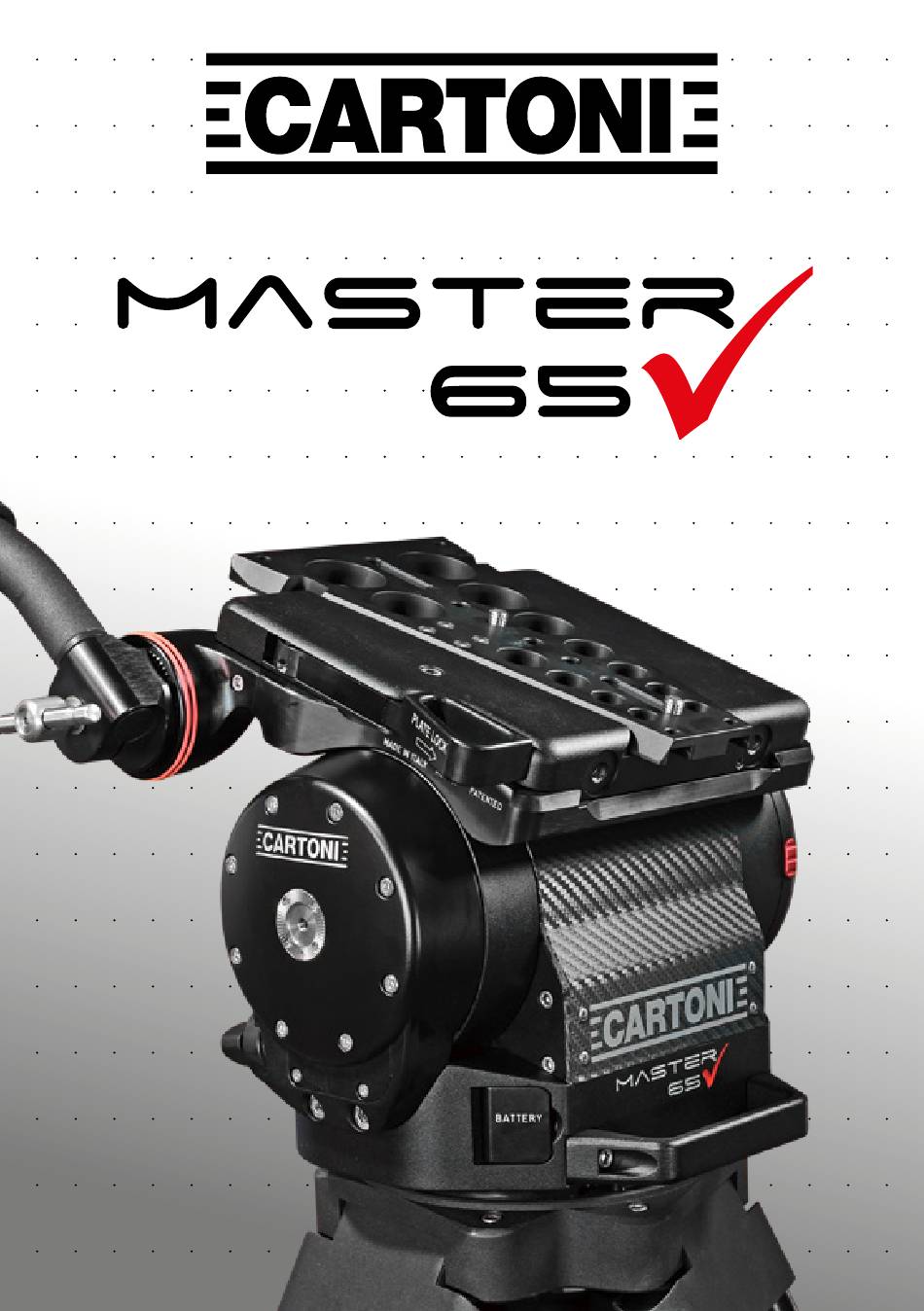

- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 3 & ccessorIes product lIne CARTONI ® All rights reserved © Manual Version: 1.0 Issue date: July 2019...

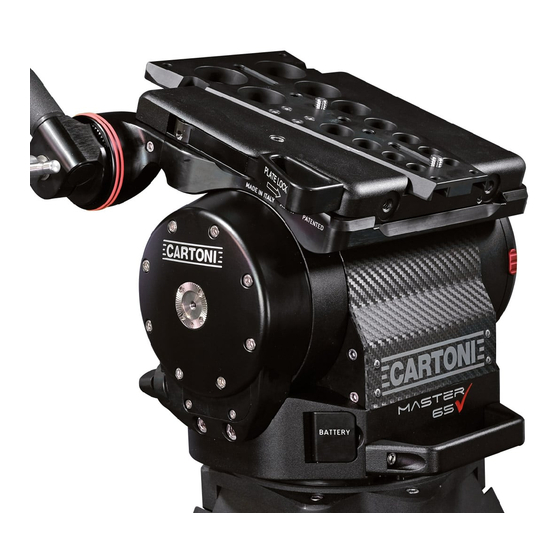

- Page 4 Designed to support Camera weights from 20 Kg (44 lbs) to 65 Kg (143 lbs), the new MASTER 65 is ideal for outdoor Broadcast with bulky boxed lenses. Depending on Center of Gravity (CG) position, the maximum payload is: •...
- Page 5 Check that the Camera payload (including lenses and accessories) is lower than the maximum capacity of the MASTER 65 Fluid Head; Before installing the Camera make sure that the MASTER 65 is in good conditions and bares no evident damages.
- Page 6 ⓭ ⓮ ⓯ ⓰ ⓱ ❽ ❾ ❿ ⓫ ⓬ Horizontal lock button (On) Left pan handle attachment Horizontal lock button (Off) Left pan handle attachment lever Tilt lock lever Sliding plate crank Pan lock lever Left extensible handle Tie down knob Pan drag selector Sliding plate lock lever Counterbalance selector...
- Page 7 Digital display Illuminated bubble level and display light button Illuminated bubble level Tilt drag selector ⓲ ⓳ ⓴ � � �...
- Page 8 Open the Tripod to the desired height and lock all safety knobs. Place the MASTER 65 Fluid Head on the Tripod base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the knob (12) underneath the flat base. Check the illuminated bubble level (22) and modify the legs angle if needed.
- Page 9 Set the counterbalance system by turning the counterbalance selector (19) to the appropriate tension. The Camera has to stay still at any tilt angle. If needed, fine tune the balance by adjusting the sliding plate. Push button (21) to activate illuminated digital displays (20), unlock Pan lock (11) and select the desired Fluid drag intensity on both Pan and tilt by turning Pan selector (18) and tilt selector (23).
- Page 10 (6). 6. W arranty All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty.
- Page 11 This warranty does not apply to any CARTONI product that has been damaged in shipping or handling, abused, misused, operated contrary to instructions for use, neglected, normal wear or tear, modified or changed in design or construction or serviced by unauthorized parties.
- Page 12 PROFESSIONAL CAMERA SUPPORT CARTONI S.p.A Via di Portonaccio, 33/B - 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email: cartoni@cartoni.com www.cartoni.com...
