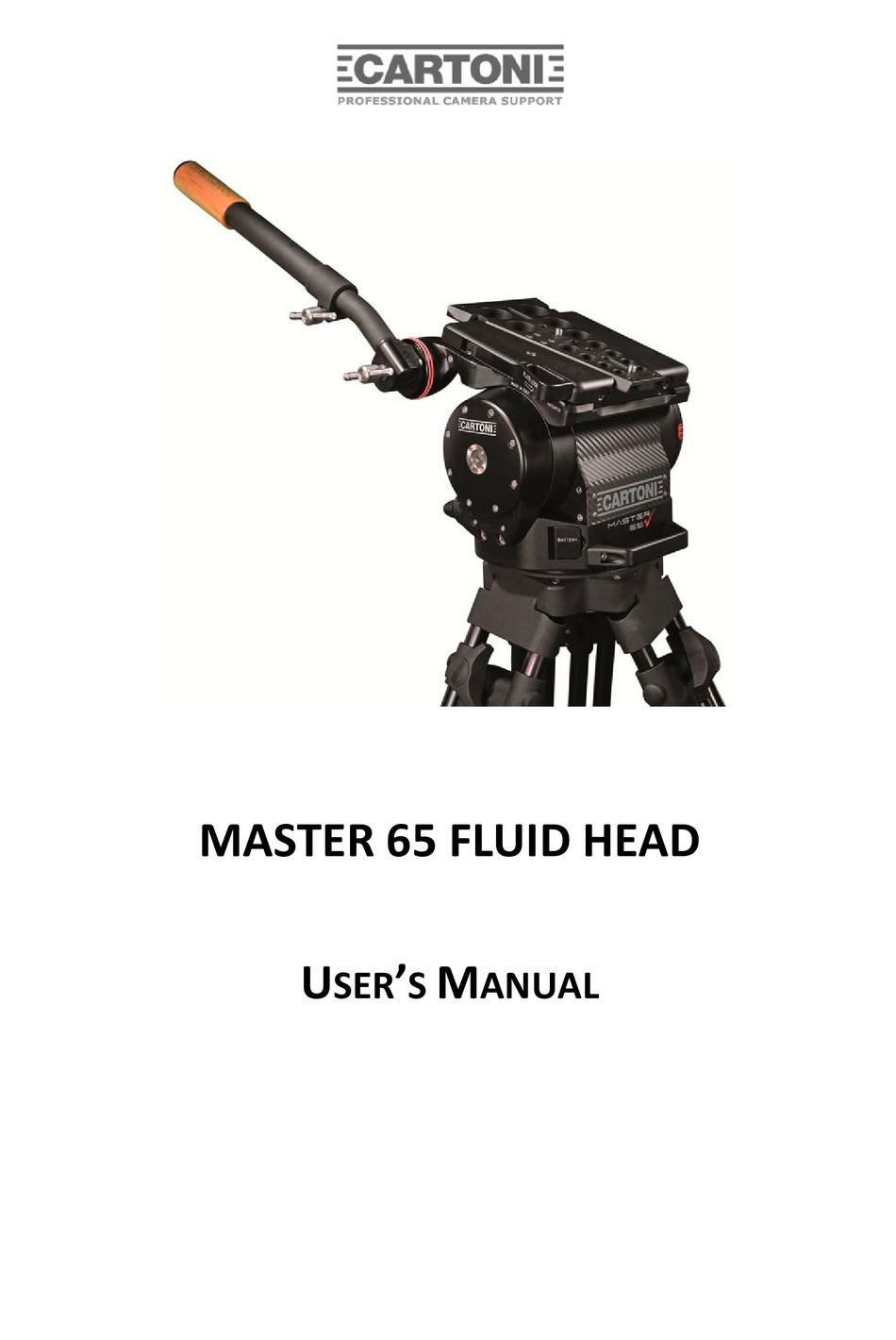

- Page 1 MASTER 65 FLUID HEAD ’ S ANUAL ...
-
Page 2: Table Of Contents
CARTONI ® / All rights reserved © Manual Version: 1.0 Issue date: Feb 2019 CARTONI S.p.A Via di Portonaccio, 33/B ‐ 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email cartoni@cartoni.com www.cartoni.com Index 1. Introduction ............................. 1 2. Operating elements ......................... 2 3. Procedures ............................ 5 4. Technical data .......................... 6 5. Manteinance ............................ 6 6. Warranty ............................ 7 7. Accessories & product line ...................... 7 ... -
Page 3: Introduction

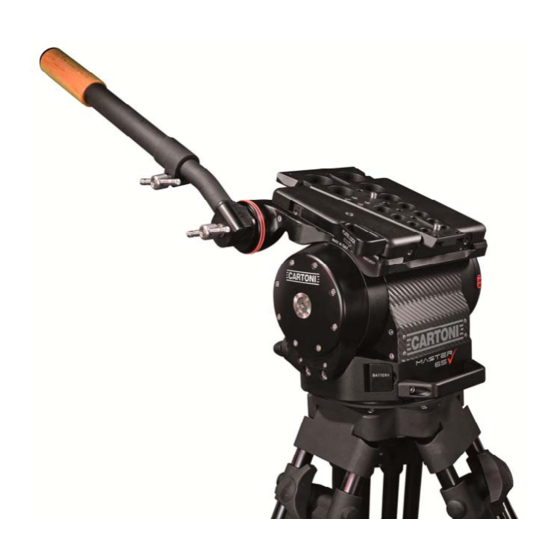

Introduction Designed to support camera weights from 20 Kg (44 lbs) to 65 Kg (143 lbs), the new MASTER 65 is ideal for outdoor Broadcast with bulky boxed lenses. Depending on CoG position, the maximum payload is: ‐ At 200 mm: 65 kg ‐ At 175 mm: 70 kg ‐ At 150 mm: 80 kg It combines a wide range of counterbalance capabilities, performing prefect balance at any tilt angle with a new CARTONI Fluid drag system based on silicon film. The new drag ensures almost freewheeling at its minimum up to consistent drag for smooth and slow movements with long focal lengths. This rugged Head comes equipped with the standard Dovetail platform on a large sliding platform. The micrometric movements of the slide are operated by a handy crank placed under the slide. All settings are ergonomic and placed in the right positions. Pan Bars are compatible with the Vinten attachment. MASTER 65 comes equipped with a digital readout for counterbalance reference and illuminated spirit bubble. The MASTER 65 flat base interfaces with Mitchel mount tripods, Pedestals and other supports via 4 bolts fixing system, 2 ¾” castle‐nut or a M12 threaded central knob. Before using the product read this user’s manual; Before installing the fluid head on the tripod check the tripod stability; Verify that the camera payload (including lenses and accessories) is lower than the maximum ... -
Page 4: Operating Elements
Operating elements 1) Camera plate 2) Right handle attachment 3) Right handle 4) Right handle attachment lever 5) Camera plate lock lever 6) Battery 7) Transport handle 2 ... - Page 5 8) Horizontal lock button (On) 9) Horizontal lock button (Off) 10) Tilt lock lever 11) Pan lock lever 12) Tie down knob 13) Sliding plate lock lever 14) Left pan handle attachment 15) Left pan handle attachment lever 16) Sliding plate crank 17) Left extensible handle 3 ...
- Page 6 18) Pan drag selector 19) Counterbalance selector 20) Digital display 21) Bubble and display light button 22) Bubble level 23) Tilt drag selector 4 ...
-
Page 7: Procedures
3. Procedures Open the tripod to the desired height and lock all the knobs. Place the MASTER 65 head on tripod base and rotate until it matches the steel notch; tighten the head firmly screwing in the knob (12) underneath the flat base. Check the spirit bubble (22) and modify the legs angle if needed. In case of low visibility, press button (21) for bubble light and to activate the digital displays. Light will turn off automatically after approximately 30 seconds. ... - Page 8 5. Maintenance With indoor use ‐ when needed ‐ just clean the Head and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use. However, use under rough conditions will require special care. Salt water is very corrosive and can cause extreme damages. In attempt to avoid further damage the Fluid Head should be ...
-
Page 9: Technical Data
Warranty claims must be submitted – in writing ‐ to the factory for verification or to an authorized distributor/dealer designated by CARTONI. It is the end user’s responsibility when ordering to ensure that the products ordered conform to his requirements. All freight of product to CARTONI must be prepaid. All implied warranties are limited to the time period set forth herein & subject to change without notice. No liability can be accepted for any variation. 7. Accessories & product line ...
