MikroTik Chateau LTE12 Quick Start Manual

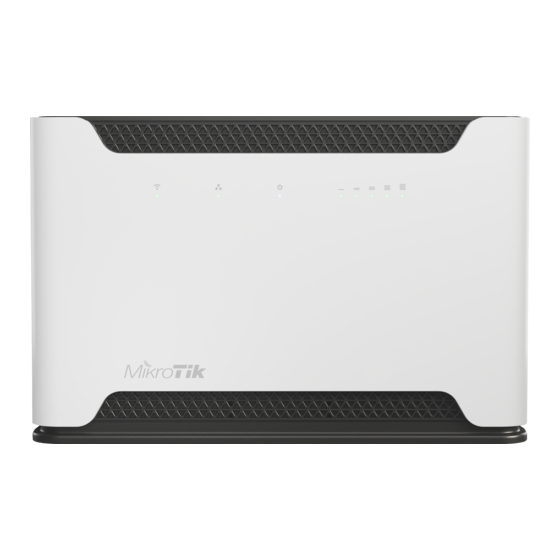

Chateau LTE12
The Chateau is home router to be used with cellular network provider sim card.
Quickstart
Please follow these quick steps to set up your device:
Connect your computer to one of the Ethernet
•
ports;
Optional - Connect an external antenna to the
•
SMA connector (see
Insert micro SIM card into the slot located
•
under the device;
Connect the power adapter to the DC jack;
•
Once the device is powered on and PC
•
connected to the device, open
http://192.168.88.1 in your web browser to
start the configuration;
User name: admin and there is no password
•
by default you will be logged in automatically
to the Quick Set screen;
We recommend clicking the "Check for
•
updates" button on the right side and updating your RouterOS software to the latest version to ensure the
best performance and stability, Must have a valid SIM card inserted;
To manually update the device, please go https://mikrotik.com/download
•
Choose ARM packages for this device and download it to your PC.
•
Upload downloaded packages to the WebFig "Files" menu and reboot the device.
•
Updating your RouterOS software to the latest version will ensure the best performance, stability, and
•
security updates.
To personalize your wireless network, SSID can be changed in the fields "Network Name";
•
Choose your country on the left side of the screen in the field "Country", to apply country regulation
•
settings;
Set up your wireless network password in the field "WiFi Password" the password must be at least eight
•
symbols;
Set up your router password in the bottom field "Password" to the right and repeat it in the field "Confirm
•
Password", it will be used to login next time;
Click on the "Apply Configuration" to save changes.
•
See mikrotik.com/products for the latest version of this document.
"Antenna usage");
Page 1, Document #53138 Modified on: 26.FEB.2020
