MikroTik SXTsq Lite60 Quick Start Manual

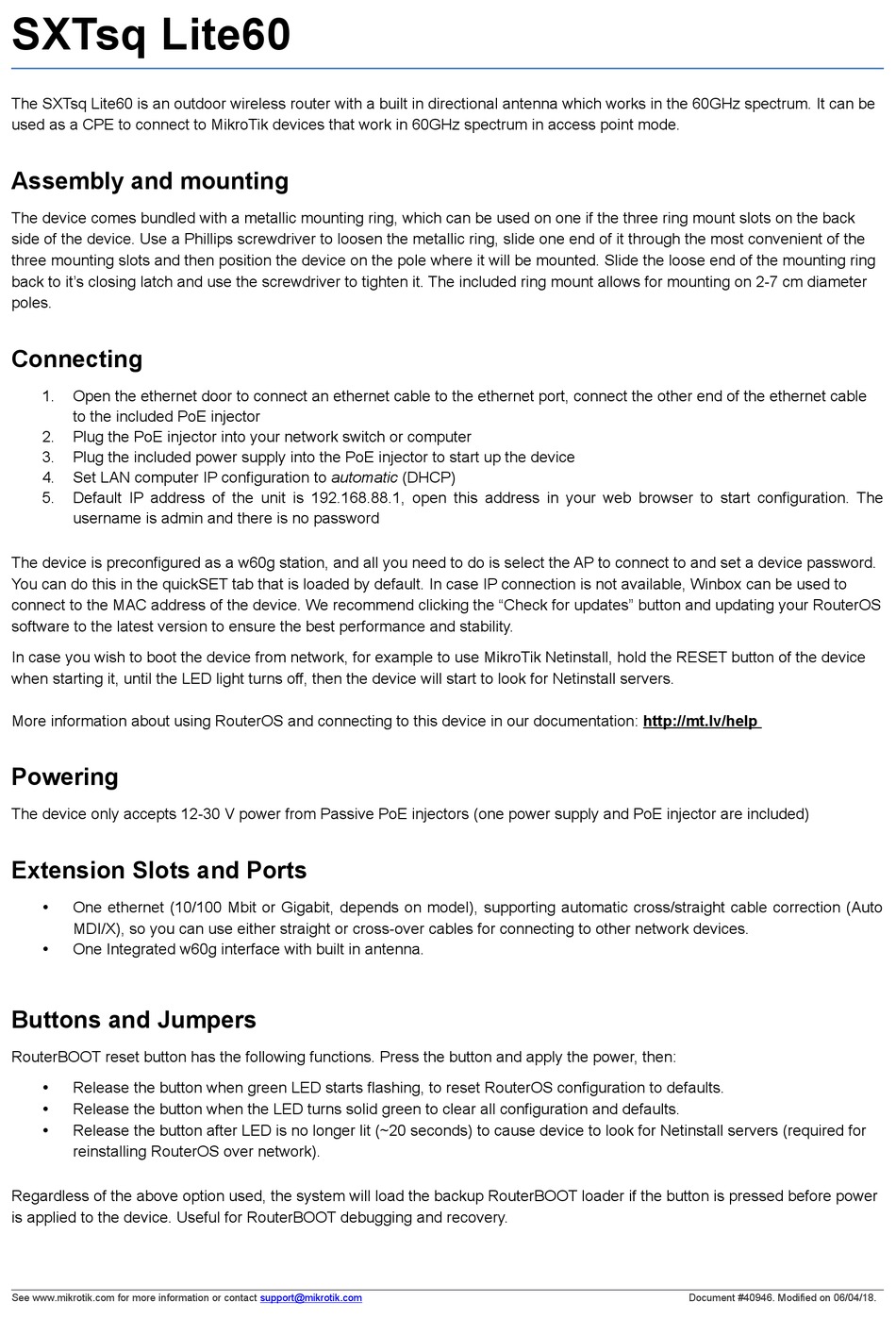

SXTsq Lite60

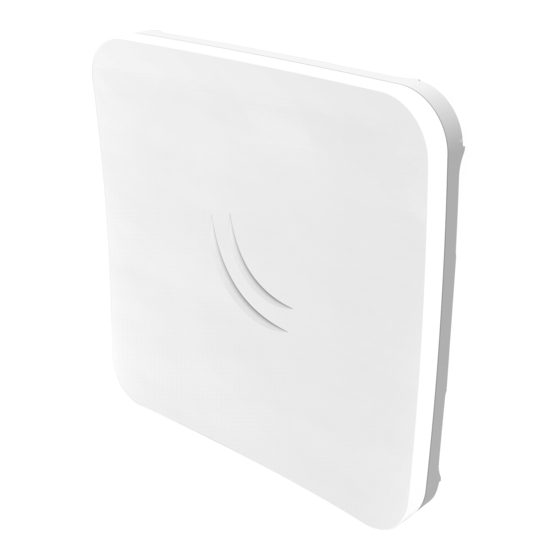

The SXTsq Lite60 is an outdoor wireless router with a built in directional antenna which works in the 60GHz spectrum. It can be
used as a CPE to connect to MikroTik devices that work in 60GHz spectrum in access point mode.

Assembly and mounting

The device comes bundled with a metallic mounting ring, which can be used on one if the three ring mount slots on the back
side of the device. Use a Phillips screwdriver to loosen the metallic ring, slide one end of it through the most convenient of the
three mounting slots and then position the device on the pole where it will be mounted. Slide the loose end of the mounting ring
back to it's closing latch and use the screwdriver to tighten it. The included ring mount allows for mounting on 2-7 cm diameter
poles.

Connecting

1. Open the ethernet door to connect an ethernet cable to the ethernet port, connect the other end of the ethernet cable
to the included PoE injector
2. Plug the PoE injector into your network switch or computer
3. Plug the included power supply into the PoE injector to start up the device
4. Set LAN computer IP configuration to automatic (DHCP)
5. Default IP address of the unit is 192.168.88.1, open this address in your web browser to start configuration. The
username is admin and there is no password
The device is preconfigured as a w60g station, and all you need to do is select the AP to connect to and set a device password.
You can do this in the quickSET tab that is loaded by default. In case IP connection is not available, Winbox can be used to
connect to the MAC address of the device. We recommend clicking the "Check for updates" button and updating your RouterOS
software to the latest version to ensure the best performance and stability.
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device
when starting it, until the LED light turns off, then the device will start to look for Netinstall servers.
More information about using RouterOS and connecting to this device in our documentation: http://mt.lv/help

Powering

The device only accepts 12-30 V power from Passive PoE injectors (one power supply and PoE injector are included)

Extension Slots and Ports

One ethernet (10/100 Mbit or Gigabit, depends on model), supporting automatic cross/straight cable correction (Auto

MDI/X), so you can use either straight or cross-over cables for connecting to other network devices.
One Integrated w60g interface with built in antenna.


Buttons and Jumpers

RouterBOOT reset button has the following functions. Press the button and apply the power, then:
Release the button when green LED starts flashing, to reset RouterOS configuration to defaults.

Release the button when the LED turns solid green to clear all configuration and defaults.

Release the button after LED is no longer lit (~20 seconds) to cause device to look for Netinstall servers (required for

reinstalling RouterOS over network).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power
is applied to the device. Useful for RouterBOOT debugging and recovery.
See www.mikrotik.com for more information or contact support@mikrotik.com Document #40946. Modified on 06/04/18.
