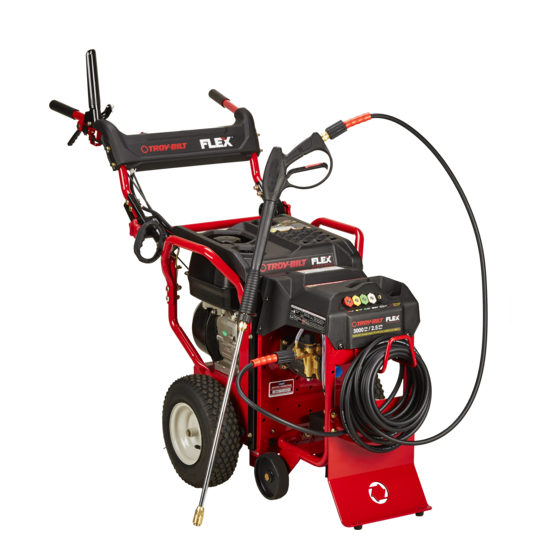

Troy-Bilt Flex 23AADAAA711 Fast Start Manual

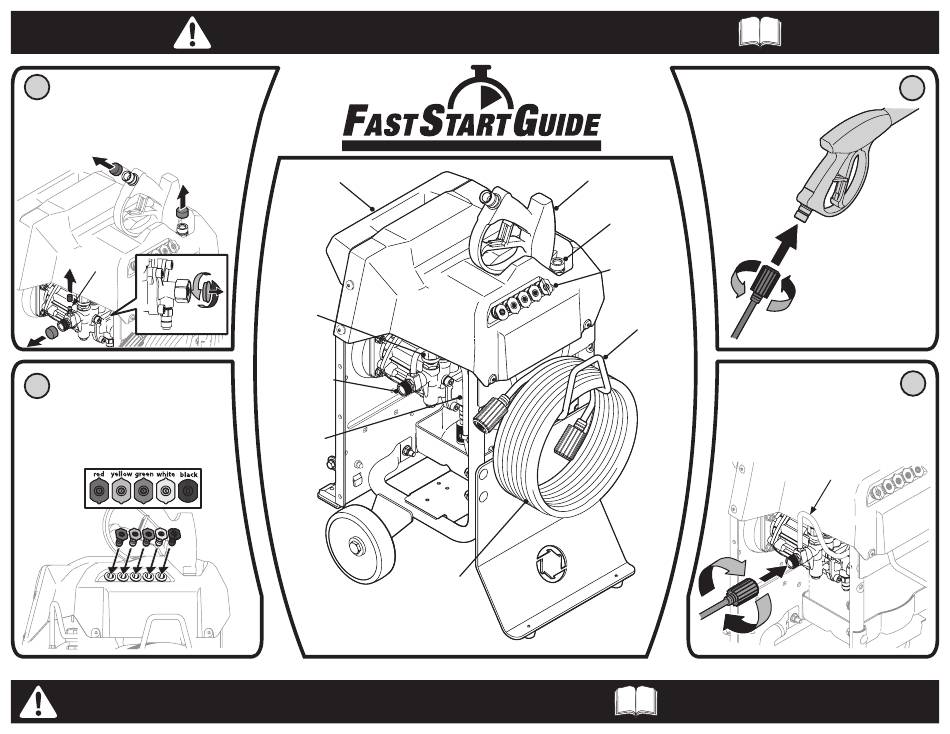

Remove the five plastic caps shown below.
1
Note: The first four caps pull off as shown.
The plastic cap in the inset rotates counter
clockwise to remove. If choosing not to install
the soap inlet tube at this time, the plastic cap
on the soap inlet port of the pressure washer
pump may remain in place.
Soap Inlet
Port
Locate the bag containing the 5 multi-
2
colored spray nozzles, included with the
loose parts in the carton. Insert the tips
into the provided mounting holes on the
pressure washer main unit. Follow the
color pattern provided on the label on
the unit for the proper order in which to
install these tips.
