Tektronix DPO7AFP Instructions

xx
DPO7AFP
Auxiliary Front Panel
ZZZ
Instructions
*P071340100*
071-3401-00
x

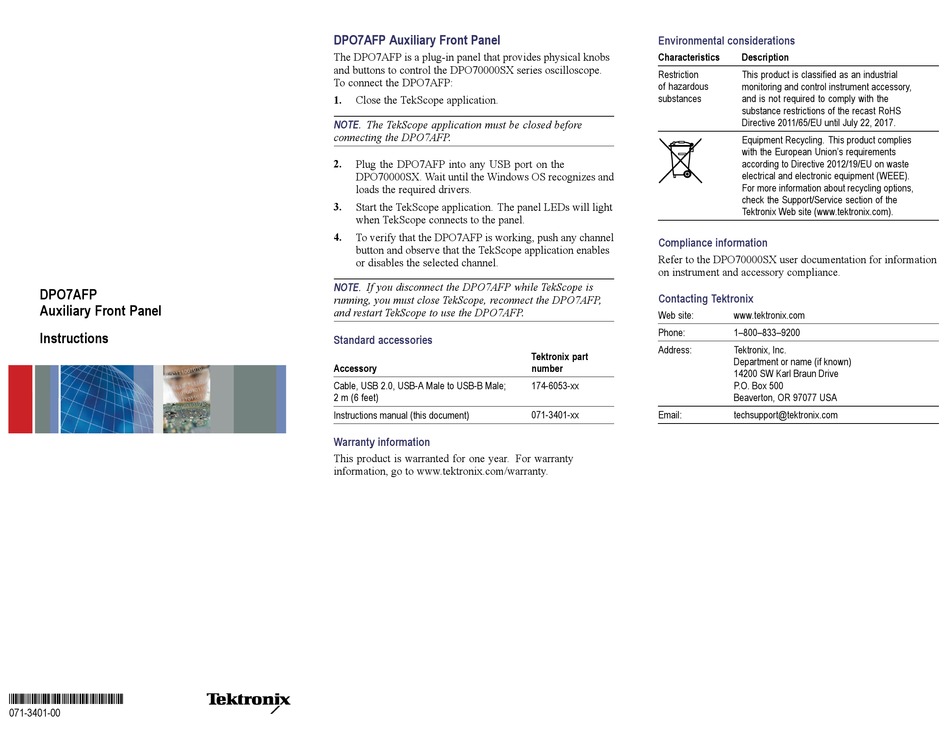

DPO7AFP Auxiliary Front Panel
The DPO7AFP is a plug-in panel that provides physical knobs
and buttons to control the DPO70000SX series oscilloscope.
To connect the DPO7AFP:
1.
Close the TekScope application.
NOTE. The TekScope application must be closed before
connecting the DPO7AFP.
2.
Plug the DPO7AFP into any USB port on the
DPO70000SX. Wait until the Windows OS recognizes and
loads the required drivers.
3. Start the TekScope application. The panel LEDs will light
when TekScope connects to the panel.
4.
To verify that the DPO7AFP is working, push any channel
button and observe that the TekScope application enables
or disables the selected channel.
NOTE. If you disconnect the DPO7AFP while TekScope is
running, you must close TekScope, reconnect the DPO7AFP,
and restart TekScope to use the DPO7AFP.
Standard accessories
Accessory
Cable, USB 2.0, USB-A Male to USB-B Male;
2 m (6 feet)
Instructions manual (this document)
Warranty information
This product is warranted for one year. For warranty
information, go to www.tektronix.com/warranty.
Environmental considerations
Characteristics
Restriction
of hazardous
substances
Compliance information
Refer to the DPO70000SX user documentation for information
on instrument and accessory compliance.
Contacting Tektronix
Web site:
Phone:
Address:
Tektronix part
number
174-6053-xx
071-3401-xx Email:
Description
This product is classified as an industrial
monitoring and control instrument accessory,
and is not required to comply with the
substance restrictions of the recast RoHS
Directive 2011/65/EU until July 22, 2017.
Equipment Recycling. This product complies
with the European Union's requirements
according to Directive 2012/19/EU on waste
electrical and electronic equipment (WEEE).
For more information about recycling options,
check the Support/Service section of the
Tektronix Web site (www.tektronix.com).
www.tektronix.com
1–800–833–9200
Tektronix, Inc.
Department or name (if known)
14200 SW Karl Braun Drive
P.O. Box 500
Beaverton, OR 97077 USA
