- Page 1 IA DISC (1.0) OWNER’S MANUAL SUPPLEMENT SHIFT & BRAKE ROUTING IA // ROUTING MANUAL...

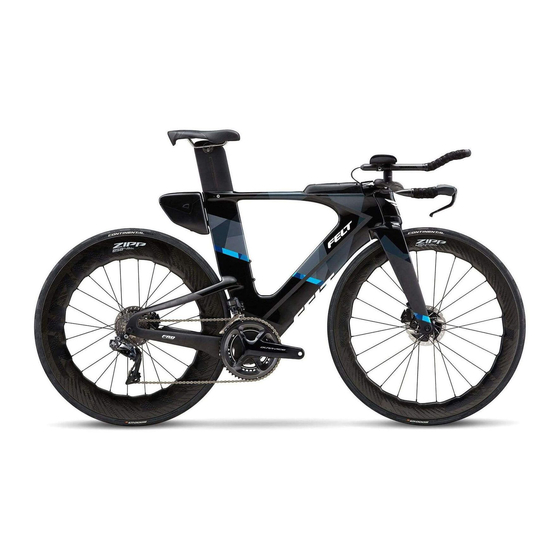

- Page 2 INTRODUCTION Congratulations on acquiring a Felt IA triathlon bike, and thank you for being a member of the “Felt family.” This guide is intended to provide instructional support for mechanics wishing to route mechanical wires, electronic wires, and brake hoses in their IA frame modules. Please note that the procedures depicted in this guide require above-average ability in bicycle mechanics, as well as special tools.
- Page 3 (1) Shimano “Y” E-tube connector (Shimano part number EW-JC130) (2) Shimano Junction B (1) Shimano Junction A (Shimano part number RS910) (1) Felt 8mm port, 2.5mm hole, conical grommet (“8mm/2.5mm conical grommet”) (1) Felt 8mm port, 2.5mm hole, flat grommet (“8mm/2.5mm flat grommet”) NOTE In the following diagrams, blue, purple, and green components are electronic wires;...
- Page 4 Then continue routing through the downtube to Junction B box located around the bottom bracket area. See Figure A2. Figure A2 IA // ROUTING MANUAL...
- Page 5 - Connect a wire (300mm) from the Junction B box located near the bottom bracket to the front derail- leur using the 8mm/2.5mm flat grommet. - Connect another wire (750mm) from the Junction B box to the rear derailleur and install using the 8mm/2.5mm conical grommet. Figure A3 IA // ROUTING MANUAL...
-
Page 6: Rear Brake Hose
Exit where the integrated storage compartment is positioned along the top tube. Route through the stem and then into the basebar, then towards the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure A5. Figure A5 IA // ROUTING MANUAL... -
Page 7: Front Brake Hose
(see Appendix A, “Wire & Hose Lengths”), start by routing the front brake hose into the fork and feed the hose upwards. The hose should exit behind the front headtube cover. See Figure A6. Figure A6 IA // ROUTING MANUAL... - Page 8 Feed the hose into the stem, then out and into the basebar. Route the hose to the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure A7. Figure A7 IA // ROUTING MANUAL...
- Page 9 Junction B box located under the front cover. Con- nect an electronic wire to each shifter located in the aerobar extensions, and then connect them to the Junction B box located under the front cover. Figure A8 IA // ROUTING MANUAL...
- Page 10 IA with Shimano Di2 Electronic Drivetrain (with Standard Junction A) PARTS (2) Brake hoses (6) Shimano E-tube wires (1) Shimano “Y” E-tube connector (Shimano part number EW-JC130) (1) Shimano Junction B (1) Shimano Junction A (Standard) (1) Felt 8mm port, 2.5mm hole, conical grommet (“8mm/2.5mm conical grommet”) (1) Felt 8mm port, 2.5mm hole, flat grommet (“8mm/2.5mm flat grommet”)
- Page 11 Then continue routing through the downtube to Junction B box located around the bottom bracket area. See Figure B2. Figure B2 IA // ROUTING MANUAL...
- Page 12 - Connect a wire (300mm) from the Junction B box located near the bottom bracket to the front derailleur using the 8mm/2.5mm flat grommet. - Connect a wire (750mm) from the Junction B box to the rear derailleur and install using the 8mm/2.5mm conical grommet. Figure B3 IA // ROUTING MANUAL...
- Page 13 Exit where the integrated storage compartment is positioned along the top tube. Route through the stem and then into the basebar, then towards the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure B5. Figure B5 IA // ROUTING MANUAL...
- Page 14 (see Appendix A, “Wire & Hose Lengths”), start by routing the front brake hose into the fork and feed the hose upwards. The hose should exit behind the front headtube cover. See Figure B6. Figure B6 IA // ROUTING MANUAL...
- Page 15 Feed the hose into the stem, then out and into the basebar. Route the hose to the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure B7. Figure B7 IA // ROUTING MANUAL...
- Page 16 Junction B box located under the front cover. Con- nect an electronic wire to each shifter located in the aerobar extensions, and then connect them to the Junction B box located under the front cover. Figure B8 IA // ROUTING MANUAL...
- Page 17 IA with SRAM eTap Wireless Electronic Drivetrain PARTS (2) Brake hoses (1) SRAM eTap BLIP unit (1) SRAM eTap CLIC unit (1) SRAM eTap AXS BlipBox (2) Felt 8mm grommet plug NOTE In the following diagrams, blue components are electronic wires, and red components are brake hoses.
- Page 18 Exit where the integrated storage compartment is positioned along the top tube. Route through the stem and then into the basebar, then towards the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure C3. Figure C3 IA // ROUTING MANUAL...
- Page 19 Make sure that your frame’s front headtube cover is removed for easier access and visibility. Start by routing the front brake hose into the fork and feed the hose upwards. See Figure C4. The hose should exit behind the front headtube cover. Figure C4 IA // ROUTING MANUAL...
- Page 20 Feed the hose up into the stem, then out of the stem and into the basebar. Route the hose to the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure C5. Figure C5 IA // ROUTING MANUAL...
- Page 21 Connect them to the BlipBox box located under the front cover. If necessary, follow SRAM’s instructions for pairing the eTap AXS BlipBox to the front and rear derailleurs. Figure C6 IA // ROUTING MANUAL...
- Page 22 PARTS (2) Brake hoses (4) 4mm shift housing sections (see Appendix A, “Wire & Hose Lengths”) (1) Felt 8mm port, 4mm hole, conical grommet (1) Felt 8mm grommet plug NOTE In the following diagrams, blue, purple, and green components are electronic wires; and red compo- nents are brake hoses.
- Page 23 A Park Tool IR-2 specialty tool is very helpful when doing some of the next steps, but is not necessary. STEP 3 Remove the rear cover from the frame’s seat tube to gain more visible access to the housing. See Figure D3. Figure D3 IA // ROUTING MANUAL...
- Page 24 Figure D5. Follow the same step for the front derailleur, and find the housing stop located in the rear cover you just removed. Figure D4 Figure D5 IA // ROUTING MANUAL...
- Page 25 Exit where the integrated storage compartment is positioned along the top tube. Route through the stem and then into the basebar, then towards the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure D7. Figure D7 IA // ROUTING MANUAL...
- Page 26 Make sure that your frame’s front headtube cover is removed for easier access and visibility. Start by routing the front brake hose into the fork and feed the hose upwards. The hose should exit behind the front headtube cover. See Figure D8. Figure C4 IA // ROUTING MANUAL...
- Page 27 Feed the hose into the stem, then out towards the basebar. Route the hose to the brake lever. Here you’ll be able to connect the brake hose to the brake lever. See Figure D9. Figure D9 IA // ROUTING MANUAL...
- Page 28 (all other steps are the same). See Figure D10 Route the brake hose through the stem and into the base bar. Then you’ll be able to connect each brake hose to its corresponding lever. Figure D10 IA // ROUTING MANUAL...
- Page 29 MODEL FRAME SIZE PART MODEL2 LENGTH QTY Shimano Di2 48CM-58CM E WIRE EW-SD50I 1200MM w/RS910 750MM 300MM 850MM 48CM LEFT LEVER / FRONT BRAKE L/ST-R9180(L)-70SS 750MM R/ST-R9180(R)-34SS 1550MM 51CM LEFT LEVER / FRONT BRAKE L/ST-R9180(L)-70SS 800MM R/ST-R9180(R)-34SS 1600MM 54CM LEFT LEVER / FRONT BRAKE L/ST-R9180(L)-70SS 800MM R/ST-R9180(R)-34SS...
