Please read these instructions carefully before beginning the assembly. Failure to understand and
follow assembly instructions may result in injury to technician and/or end user and may void the
warranty. If you have any questions call Sunrise Medical Technical Support at +1(800) 333-4000.
Parts:
1. Self-Tapping Screws (qty 2)
2. LED Light including cable (left)
3. LED Light including cable (right)
4. Controller Box including Battery
5. Reinforced Calf Strap
6. Velcro Zip-ties (qty 2)
1
2
B
3
Controller
Box
Calf Strap
Required tools:
1. Phillips
Screwdriver #1
2. Scissors
C
A
Sunrise Medical 2842 N. Business Park Ave Fresno, CA 93727 USA
Customer service: +1(800) 333-4000
or visit www.SunriseMedical.com
NITRUM LED LIGHT RETROFIT
INSTRUCTION SHEET
The LED lights are mounted to the caster-links
using adhesive tape and an allen screw. The calf
strap is designed as a cable guide and
reinforced to bear the weight of the controller
box.
Mounting instructions:
1.
Clean and degrease the bottom side of the
caster-links on both sides of the chair.
2.
Pull the protective layer off the double
adhesive tape on the bottom of the left-
hand-side LED light.
3.
Insert the self-tapping screw into the bore on
the LED housing, and align the LED housing
on the caster-link (without already sticking
the adhesive tape on the caster-link) so that
the screw is aligned with the bore on the
caster-link. The LEDs are facing toward the
front of the wheelchair.
4.
Press the adhesive tape onto the caster-link
to connect the LED housing with the caster
link. Press and hold for 20 seconds.
5.
Tighten the self-tapping screw with a max
torque of 2 Nm (18 in-lb). (Fig. 1)
6.
Repeat above for the right-hand-side LED
light.
7.
Mount the calf strap and adjust length as
necessary.
8.

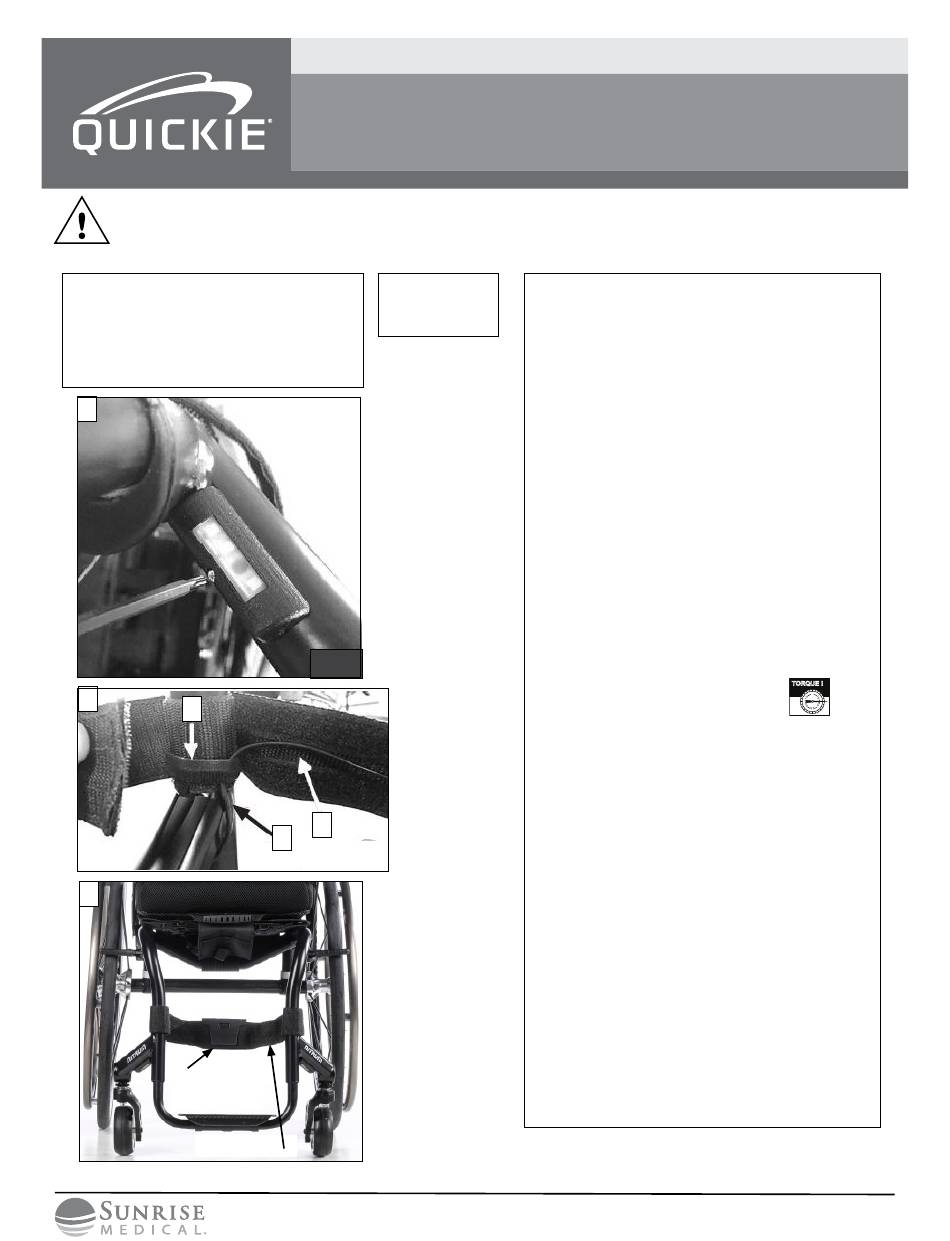

Route the cables of the LED lights (A) along
the frame toward the calf strap. Use Velcro
zip-ties (B) to tighten the cables to the frame
underneath the calf strap (Fig. 2).
9.
Route the cables through the Velcro®
channel (C) on the backside of the calf
strap toward the middle of the calf strap
(Fig. 2).
10. Clip the controller box on the calf strap, so
that it is located in the middle of the calf
strap (Fig. 3). The USB connector is facing
toward the front of the wheelchair.
11. Insert the LED cable pins into the connectors
on each side of the controller box.
12. Cut the rear cover of the calf strap to length
®
and use Velcro
to attach it to the rear side
of the calf strap so that it covers the cables
and the controller box.
© 2020 Sunrise Medical (US) LLC
08/2020 253036 Rev. A Page 1of2
