Grandview GRIP084V User Manual

RS-232 Control Protocol
Baud Rate: 2400
Data Bits: 8
Stop Bits: 1
Parity: None
Codes below are hexadecimal. No Carriage return is required.
Important: In some cases you may need to enable the RS-232
control by sending hex command: FF EE EE EE AA
(This will only need to be sent once during commissioning,
the setting will remain through subsequent power cycles)
Screen Up: FF EE EE EE DD
Screen Stop: FF EE EE EE CC
Screen Down: FF EE EE EE EE
Excessive Motor Use
The motor will switch off if the screen is used continuously
for more than three minutes. Allow the motor to cool for
30 minutes before using again.
If you do not expect to use your screen for some time,
please disconnect the power.
* Note: Warranty does not cover un-installing
or re-installing unit.
Protecting your Screen:
To ensure long lasting viewing enjoyment keep
the screen rolled up when not in use. Check both
the front and back surfaces before retracting
into the case to make sure it is free of dust, dirt,
insects or other foreign matter. Use a soft brush
or cloth to lightly remove any foreign particles.
Cleaning your Screen:
Use warm water with a mild detergent to remove
any marks on the surface (only dab, do not rub)
or screen casing. Immediately dry the screen with
a soft cloth or towel. Do not leave it to air dry.
Never use any solvents, chemicals or abrasive
cleaners on the screen surface as they can
permanently damage the screen surface.
Imported and distributed in Australia by
1800 251 367
orders@ambertech.com.au
ambertech.com.au

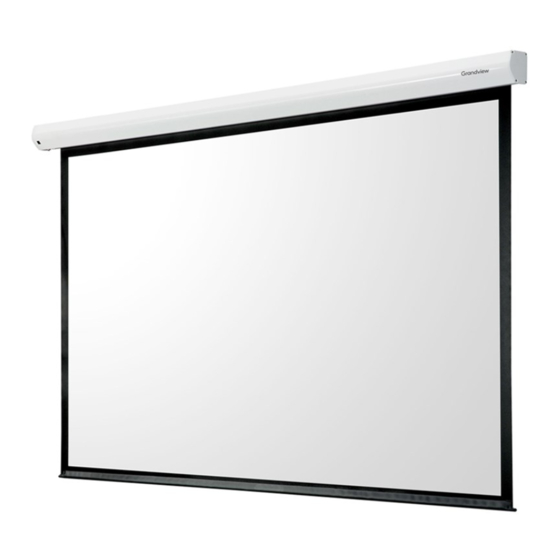

IP SMART SCREEN
USER MANUAL
Product Code:
GRIP084/100/120/140/150/180V
GRIP092/102/120/130/140/150/160180/200H
GRIP094/103/110/120/130/140/150/160/180/200C
