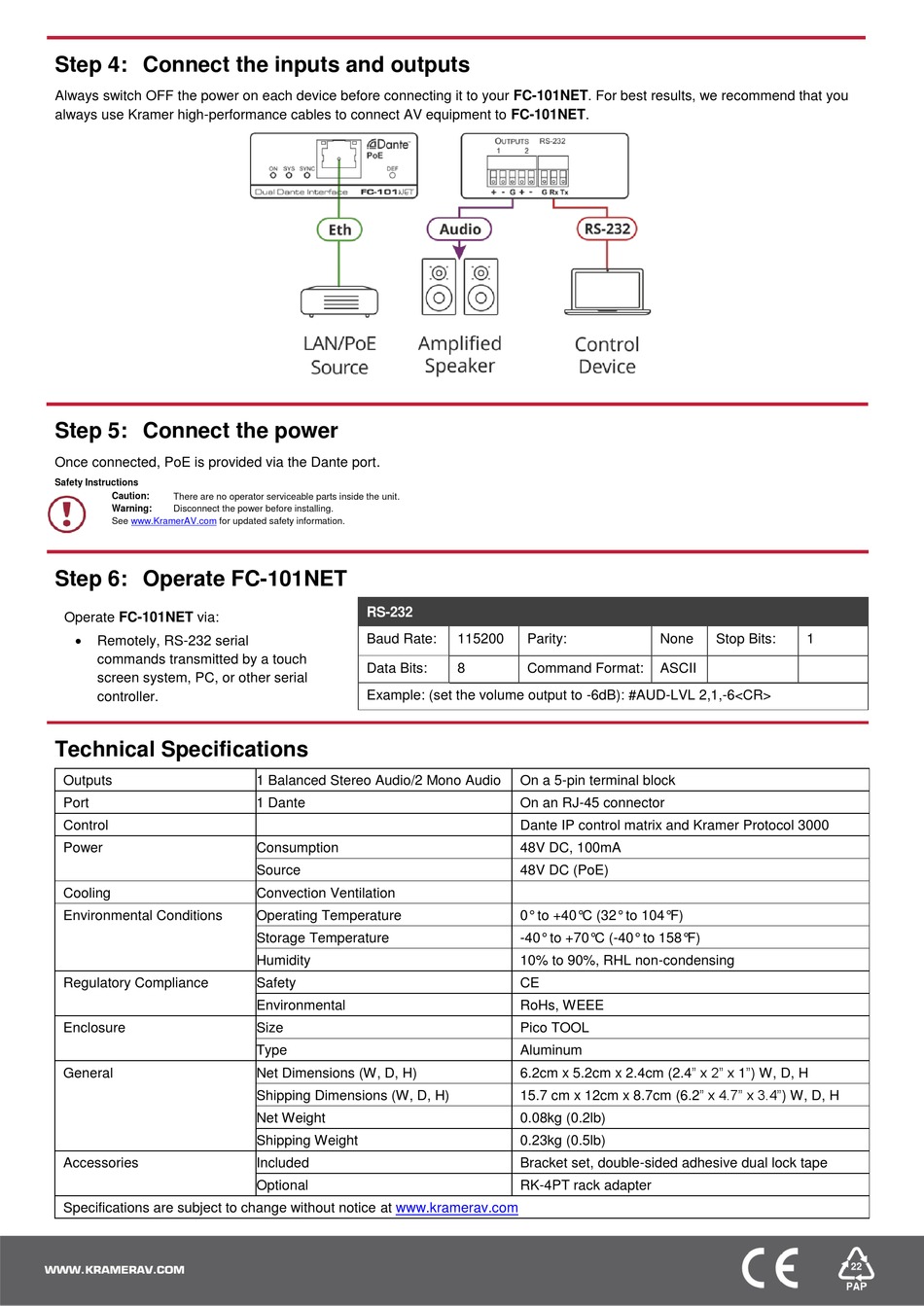

Kramer FC-101NET Quick Start Manual page 2

Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your FC-101NET. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to FC-101NET.
Step 5: Connect the power
Once connected, PoE is provided via the Dante port.
Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning: Disconnect the power before installing.
See www.KramerAV.com for updated safety information.
Step 6: Operate FC-101NET
Operate FC-101NET via:

Remotely, RS-232 serial
commands transmitted by a touch
screen system, PC, or other serial
controller.
Technical Specifications
Outputs
Port
Control
Power
Cooling
Environmental Conditions
Regulatory Compliance
Enclosure
General
Accessories
Specifications are subject to change without notice at
RS-232
Baud Rate:
Data Bits:
Example: (set the volume output to -6dB): #AUD-LVL 2,1,-6<CR>
1 Balanced Stereo Audio/2 Mono Audio
1 Dante
Consumption
Source
Convection Ventilation
Operating Temperature
Storage Temperature
Humidity
Safety
Environmental
Size
Type
Net Dimensions (W, D, H)
Shipping Dimensions (W, D, H)
Net Weight
Shipping Weight
Included
Optional
www.kramerav.com
115200 Parity:
8 Command Format:
On a 5-pin terminal block
On an RJ-45 connector
Dante IP control matrix and Kramer Protocol 3000
48V DC, 100mA
48V DC (PoE)
0° to +40°C (32° to 104°F)
-40° to +70°C (-40° to 158°F)
10% to 90%, RHL non-condensing
CE
RoHs, WEEE
Pico TOOL
Aluminum
6.2cm x 5.2cm x 2.4cm (2.4" x 2" x 1") W, D, H
15.7 cm x 12cm x 8.7cm (6.2" x 4.7" x 3.4") W, D, H
0.08kg (0.2lb)
0.23kg (0.5lb)
Bracket set, double-sided adhesive dual lock tape
RK-4PT rack adapter
None Stop Bits: 1
ASCII
