6.6.2 What Is Binary Edge?
Binary Edge:
Binary Edge is a function of detecting the boundaries (edges) between white and black or between the
pixels in extract color and the pixels in not extract color and outputting the coordinate values. If the edge
can be detected, it will be judged "OK"; otherwise, it will be judged "NG".
Image Type
Shape of Area
Available Mask Area
Range of Measurement Results

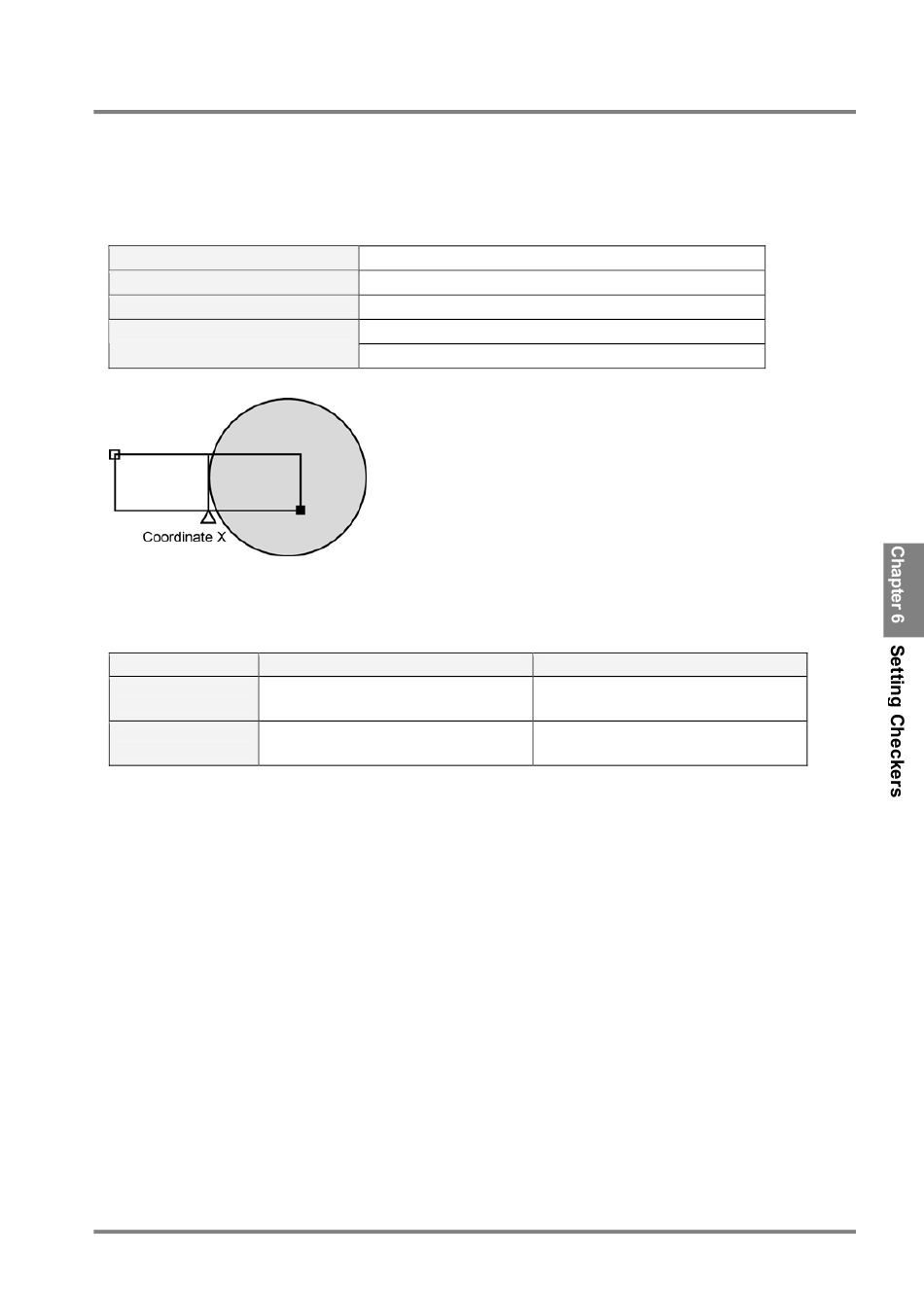

A triangle mark shown in the figure above indicates the position of the detected edge.
Relationships between scan directions and coordinate values
X coordinate
Scan Direction:
Coordinate values of the detected
Horizontal
edge
Scan Direction:
Lower number in x coordinate of a
Vertical
start or end point in the area
Extract/Gray (Binary)/Differential (Binary)
Line Scan/Plane Scan
N/A
X coordinate value of edges: Up to 511
Y coordinate value of edges: Up to 479
Y coordinate
Lower number in y coordinate of a
start or end point in the area
Coordinate values of the detected
edge
