User Manual – Electric Vehicle Charging Equipment IC-CPD

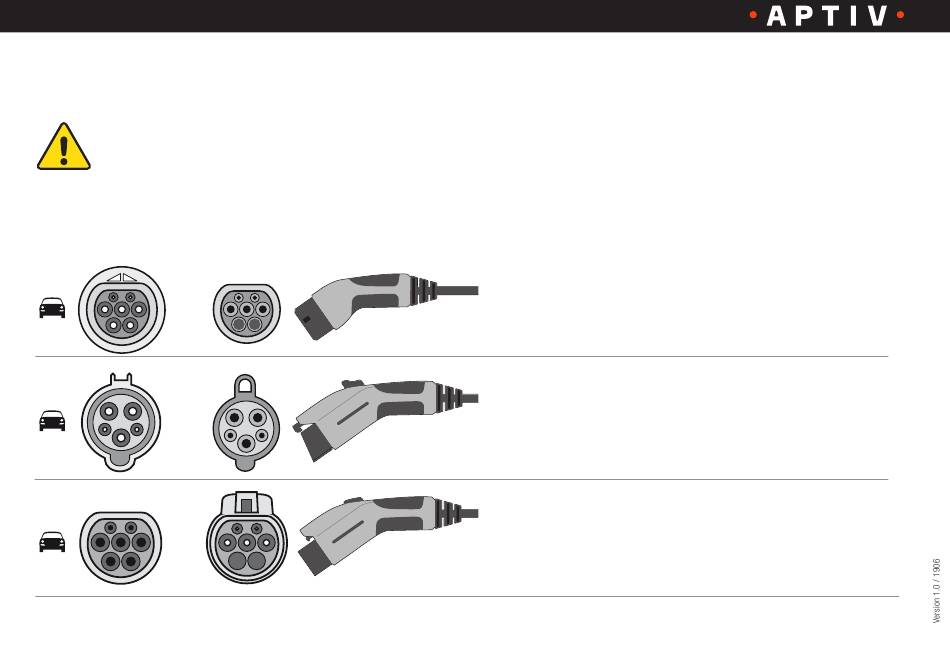

7. Available vehicle charging inlets and vehicle connectors
Depending on the country-specific equipment, different vehicle charging inlets and vehicle connectors
are provided.
Use only the charging equipment approved for your country.
Vehicle
Vehicle
charging inlet
connector
Type
IEC 62196-2
Type 2
IEC 62196-2/SAE-J1772-2009
Type 1
GB/T 20234.2
Type GB/T
Available
charging inlets
Two 3 mm contact sleeves for
•
control contact
Two 6 mm contact sleeves for line
•
A 6 mm contact sleeve for
•
grounding contact
Two 1.5 mm contact sleeves for
•
control contact
Two 3.6 mm contact sleeves for
•
line
A 2.8 mm contact sleeve for
•
grounding contact
Two 3 mm contact pins for control
•
contact
Two 6 mm contact pins for line
•
A 6 mm contact sleeve for
•
grounding contact
