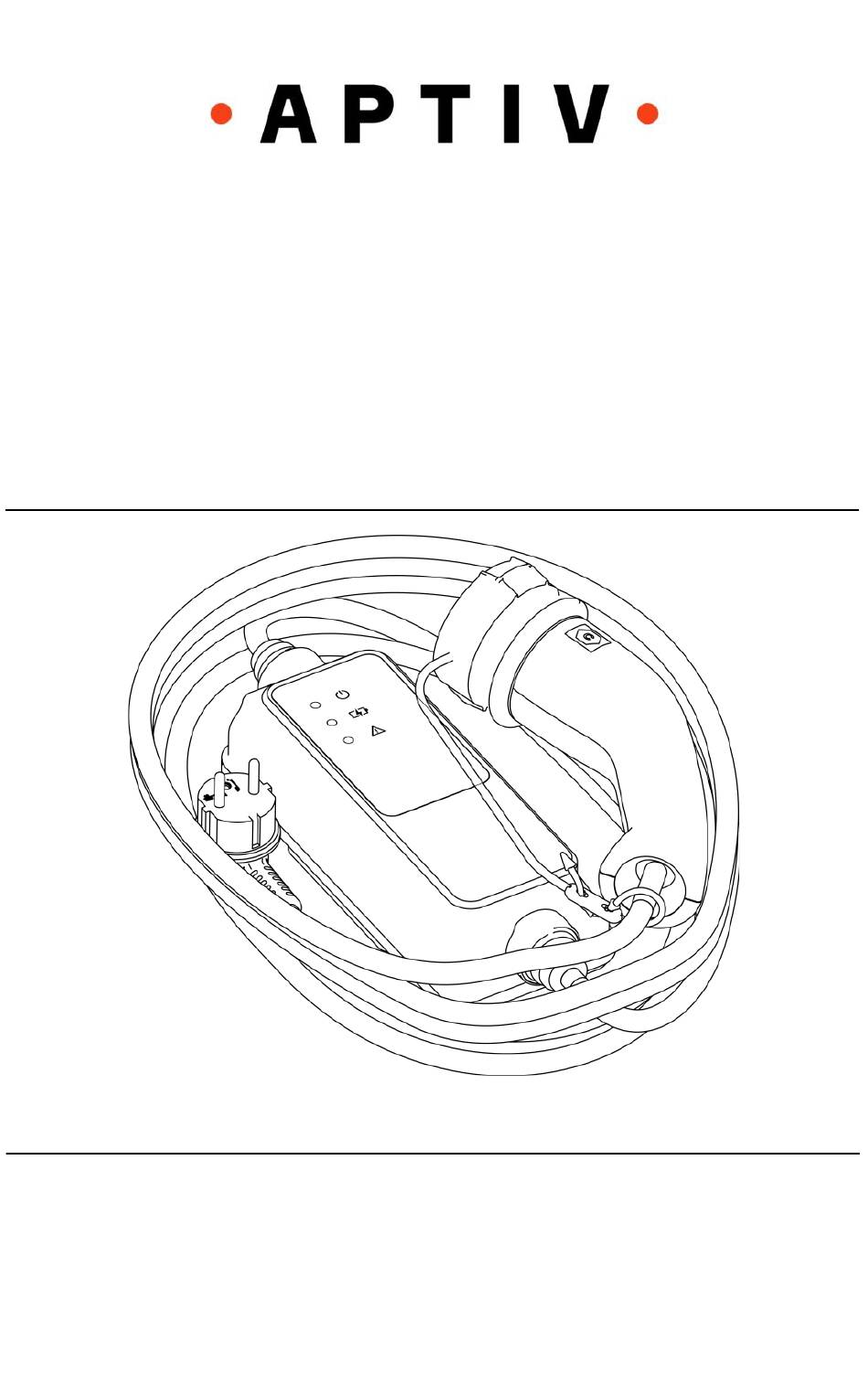

- Page 1 Electric Vehicle Charging Equipment IC-CPD ( I n- C able C ontrol- and P rotection D evice) User Manual...
- Page 2 Table of contents Abbreviations ............................ 2 Abbreviations ............................ 3 General information .......................... 3 IC-CPD overview ..........................4 Warnings, symbols and pictograms used ..................5 Safety instructions ..........................6 Section 1: Intended use ........................10 Section 2: User benefits and features ..................... 12 Section 3: Matching vehicle charging inlets and vehicle connectors..........
- Page 3 Plug-in Hybrid Electric Vehicles General information This User Manual is based on the latest product information at the time of publication. APTIV reserves the right to modify the product without prior notice. Any changes or modifications made to the product may result in loss of warranty if they are not carried out by an approved service workshop.
- Page 4 IC-CPD overview The individual system components are defined in the overview below. Different components of the EVSE Components: Vehicle charging inlet Vehicle connector with protective cap, Type 2 In-Cable Control Box (ICCB) AC power cable AC grid plug Wall socket...
- Page 5 Prior to charging your electric vehicle, it is necessary to carefully read and follow the instructions in this manual and the charging instructions in your vehicle owner’s manual. The following symbols may be found in your manual or on labels affixed to your IC-CPD: Warning: Indicates a possibly impending danger. Failure to follow this instruction may lead to a risk of fire or can result in death or serious injury.
- Page 6 Safety instructions This section explains the meaning of all affixed pictograms on the IC-CPD and provides safety guidelines to the user while handling the device, see Table 2. Please read the following instructions carefully: Failure to follow this instruction may lead to a risk of fire or can result in death or serious injury.
- Page 7 Make sure the grid plug is correctly and completely inserted. Do not insert with an angle. Only use this IC-CPD to charge electric vehicles equipped with an inlet. In order to determine whether the vehicle is equipped with a charging inlet, please refer to the vehicle...
- Page 8 The IC-CPD charging equipment should not be operated by persons under the influence of drugs, alcohol or medications. Do not apply any overvoltage to the IC-CPD charging equipment. For the socket voltages suitable for the device please refer to the specification on the back label.
- Page 9 Do not attempt to connect to a vehicle if the charging inlet is not matching the vehicle connector. Do not insert any objects in the vehicle charging inlet or in the IC-CPD charging equipment. Disconnect the IC-CPD charging device from the socket during a thunderstorm.
- Page 10 Section 1: Intended use This IC-CPD charging equipment allows you to charge your battery powered electric vehicle (BEV) or plug-in hybrid electric vehicle (PHEV) without any additional device. The user- friendly plug system makes the vehicle connector fit directly into the charging inlet of the vehicle and the existing electrical infrastructure.
- Page 11 Country limitation: It is prohibited to use your IC-CPD in a different country than the one it is intended for. The applicable countries for each IC-CPD variant are defined in the table below. Customer Rated Group Destination country Part Grid plug...
- Page 12 Protection cap to achieve IP55. AC Gridcord: • Country-specific plug The IC-CPD has a plug (E/F, G, J or K) compliant to your country-specific requirements to ensure a safe and convenient charging cycle. • Temperature monitoring The IC-CPD continually monitors the temperature inside the power plug,...
- Page 13 Section 3: Matching vehicle charging inlets and vehicle connectors The IC-CPD is equipped with a Type 2 vehicle connector and the below pictures show the matched charging inlet. Vehicle Connector type Vehicle Connector Vehicle charging appearance inlet appearance IEC 62196-2...
- Page 14 Section 4: Available power cables for domestic sockets Grid plug type Grid plug appearance Socket appearance CEE 16/3 industrial CEI 23-50 Type L JIS C8303 (JWDS-0033) Type B NEMA 5-15 Type B CEE 7/7 Type E/Type F SN 441011 Type J BS 1363 Type G AS 3112...
- Page 15 IRAM 2073 Type I NBR 14136 Type N AFSNIT 107-2 D1 Type K...
- Page 16 Section 5: Front display of the ICCB The front display of the IC-CPD is equipped with three indicator lights: POWER (green) is illuminated: Electricity from the grid is on and the IC-CPD is ready for use CHARGING (green) flashing: A flashing light indicates that...
- Page 17 Section 6: How to use the charging cord Operate your IC-CPD only in the following way: The charging process begins automatically. Read fully and understand the vehicle owner's manual and the instructions for the IC-CPD charging equipment. To interrupt the charging process, unlock...
- Page 18 Section 7: Troubleshooting and manual Reset After a residual current detection (The FAULT LED flashes three times, followed by a short break), a manual reset is required to recover the IC-CPD. Proceed as follows: Remove the vehicle connector from the Insert the vehicle connector into the vehicle’s charging inlet.
- Page 19 Section 8: Control unit LED pattern guide According to the operating mode, the IC-CPD charging equipment emits different combinations of continuously illuminated and/or flashing LEDs. Pictogram/ Description Symbol Not connected to the power supply or power is not available from infrastructure.
- Page 20 Guidelines and standards • 2014/35/EU, 2014/30/EU Directives of the European Union: • 2011/65/EU This IC-CPD charging equipment meets all applicable IEC and EN standards and regulations in the context of national legislation, as well as the Standards: European and international regulations. If...
- Page 21 To reduce hazards of electric shock and damage to the device, clean the plugs and the housing with utmost caution. Only start cleaning your IC-CPD after disconnecting it from the grid. Clean the IC-CPD charging equipment with a dry cloth. Do not use any cleaning agents or flammable solvents, such as alcohol or benzene.
- Page 22 APTIV or an authorized representative or regional customer service of APTIV has been advised by third parties about the possibility of such damages or any other claim.
- Page 23 Customer Technical Center Am Technologiepark 1 42119 Wuppertal, Deutschland Tel: [49] 202.291.0...
